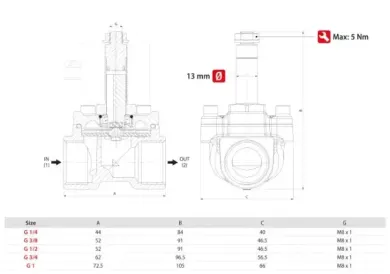

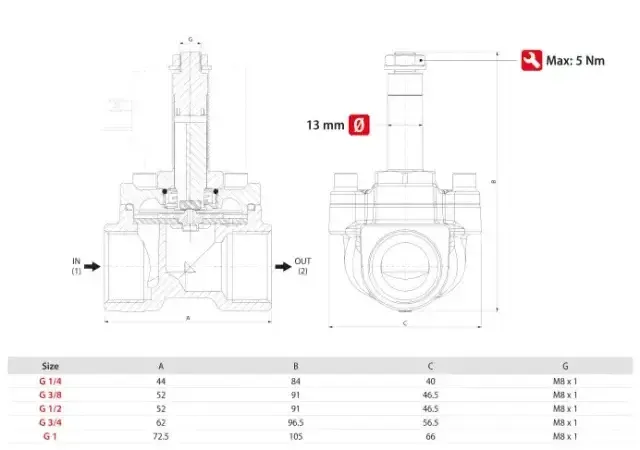

Serie 03F - 2/2 NC
ELECTROVALVULA SERVOACCIONADA
* Para apertura completa de la membrana Δp > 0 bar
| Código | Dibujos 3D | Material juntas | Temperatura | Conexiones | Ø Orificio (mm) | Viscosidad (cSt) | Kv (m3/h) | OPD (ΔP) - DC (14 W) | OPD (ΔP) - DC (22 W) | OPD (ΔP) - AC (14 VA) | OPD (ΔP) - AC (21 VA) | OPD (ΔP) - AC (31 VA) | Embute | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 03F 03 1 10 N 0 | Solicitar acceso | NBR | -10°C +90°C | 1/4" | 10 | 25 | 1.58 | 0 - 6 bar | 0 - 16 bar | 0 - 18 bar | 0 - 20 bar | 0 - 25 bar | 1 | |
| 03F 03 1 10 V 0 | Solicitar acceso | FKM | -10°C +140°C | 1/4" | 10 | 25 | 1.58 | 0 - 6 bar | 0 - 16 bar | 0 - 18 bar | 0 - 20 bar | 0 - 25 bar | 1 | |
| 03F 03 1 10 E 0 | Solicitar acceso | EPDM | -10°C +140°C | 1/4" | 10 | 25 | 1.58 | 0 - 6 bar | 0 - 16 bar | 0 - 18 bar | 0 - 20 bar | 0 - 25 bar | 1 | |
| 03F 04 1 14 N 0 | Solicitar acceso | NBR | -10°C +90°C | 3/8" | 14 | 25 | 2.73 | 0 - 6 bar | 0 - 16 bar | 0 - 18 bar | 0 - 20 bar | 0 - 25 bar | 1 | |
| 03F 04 1 14 V 0 | Solicitar acceso | FKM | -10°C +140°C | 3/8" | 14 | 25 | 2.73 | 0 - 6 bar | 0 - 16 bar | 0 - 18 bar | 0 - 20 bar | 0 - 25 bar | 1 | |
| 03F 04 1 14 E 0 | Solicitar acceso | EPDM | -10°C +140°C | 3/8" | 14 | 25 | 2.73 | 0 - 6 bar | 0 - 16 bar | 0 - 18 bar | 0 - 20 bar | 0 - 25 bar | 1 | |
| 03F 05 1 14 N 0 | Solicitar acceso | NBR | -10°C +90°C | 1/2" | 14 | 25 | 2.75 | 0 - 6 bar | 0 - 16 bar | 0 - 18 bar | 0 - 20 bar | 0 - 25 bar | 1 | |
| 03F 05 1 14 V 0 | Solicitar acceso | FKM | -10°C +140°C | 1/2" | 14 | 25 | 2.75 | 0 - 6 bar | 0 - 16 bar | 0 - 18 bar | 0 - 20 bar | 0 - 25 bar | 1 | |
| 03F 05 1 14 E 0 | Solicitar acceso | EPDM | -10°C +140°C | 1/2" | 14 | 25 | 2.75 | 0 - 6 bar | 0 - 16 bar | 0 - 18 bar | 0 - 20 bar | 0 - 25 bar | 1 | |
| 03F 07 1 18 N 0 | Solicitar acceso | NBR | -10°C +90°C | 3/4" | 18 | 25 | 4.08 | 0 - 6 bar | 0 - 16 bar | 0 - 18 bar | 0 - 20 bar | 0 - 25 bar | 1 | |
| 03F 07 1 18 V 0 | Solicitar acceso | FKM | -10°C +140°C | 3/4" | 18 | 25 | 4.08 | 0 - 6 bar | 0 - 16 bar | 0 - 18 bar | 0 - 20 bar | 0 - 25 bar | 1 | |
| 03F 07 1 18 E 0 | Solicitar acceso | EPDM | -10°C +140°C | 3/4" | 18 | 25 | 4.08 | 0 - 6 bar | 0 - 16 bar | 0 - 18 bar | 0 - 20 bar | 0 - 25 bar | 1 | |
| 03F 09 1 25 N 0 | Solicitar acceso | NBR | -10°C +90°C | 1" | 25 | 25 | 6.63 | 0 - 4 bar | 0 - 12 bar | 0 - 16 bar | 0 - 20 bar | 0 - 25 bar | 1 | |
| 03F 09 1 25 V 0 | Solicitar acceso | FKM | -10°C +140°C | 1" | 25 | 25 | 6.63 | 0 - 4 bar | 0 - 12 bar | 0 - 16 bar | 0 - 20 bar | 0 - 25 bar | 1 | |
| 03F 09 1 25 E 0 | Solicitar acceso | EPDM | -10°C +140°C | 1" | 25 | 25 | 6.63 | 0 - 4 bar | 0 - 12 bar | 0 - 16 bar | 0 - 20 bar | 0 - 25 bar | 1 |
