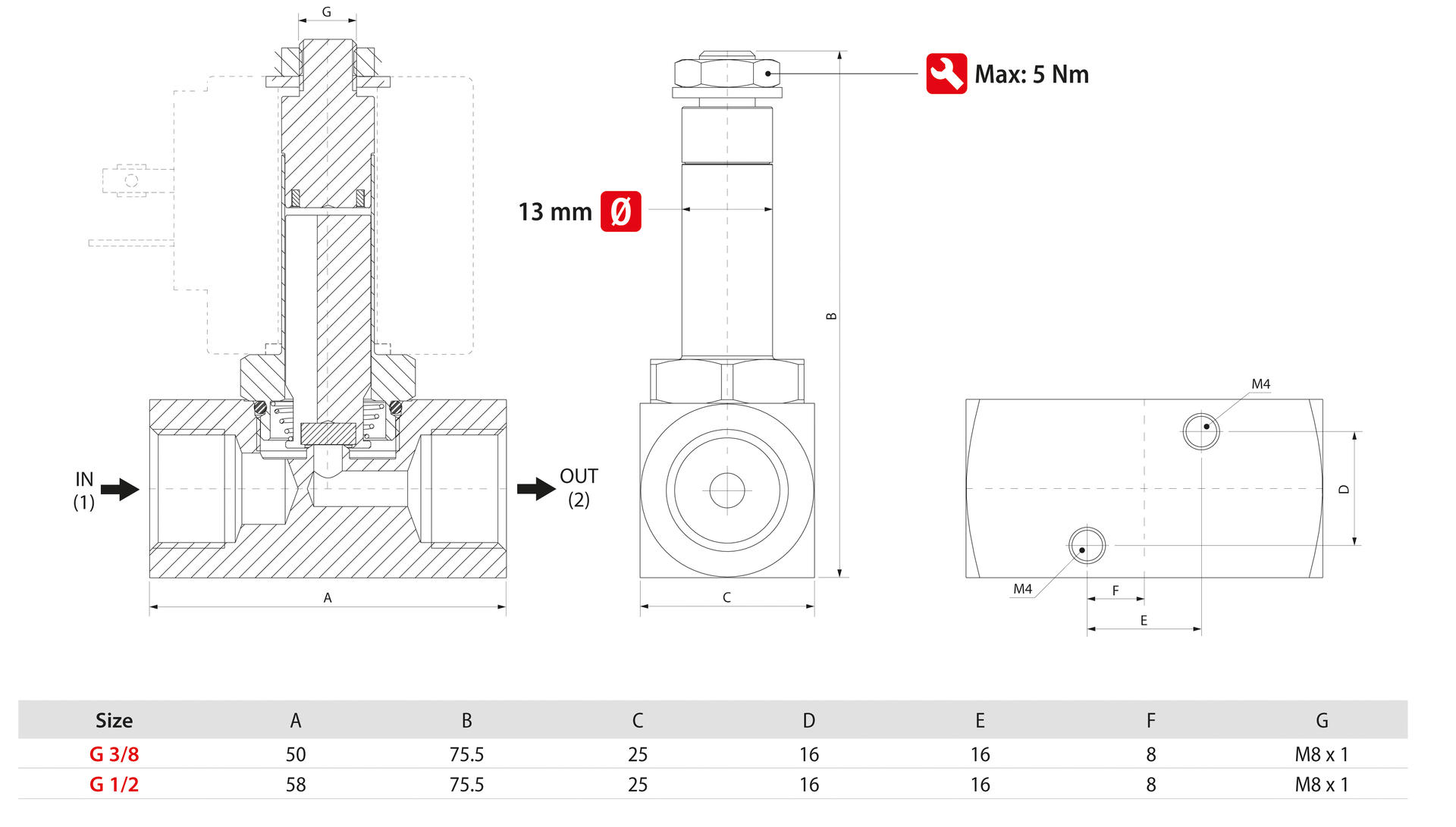

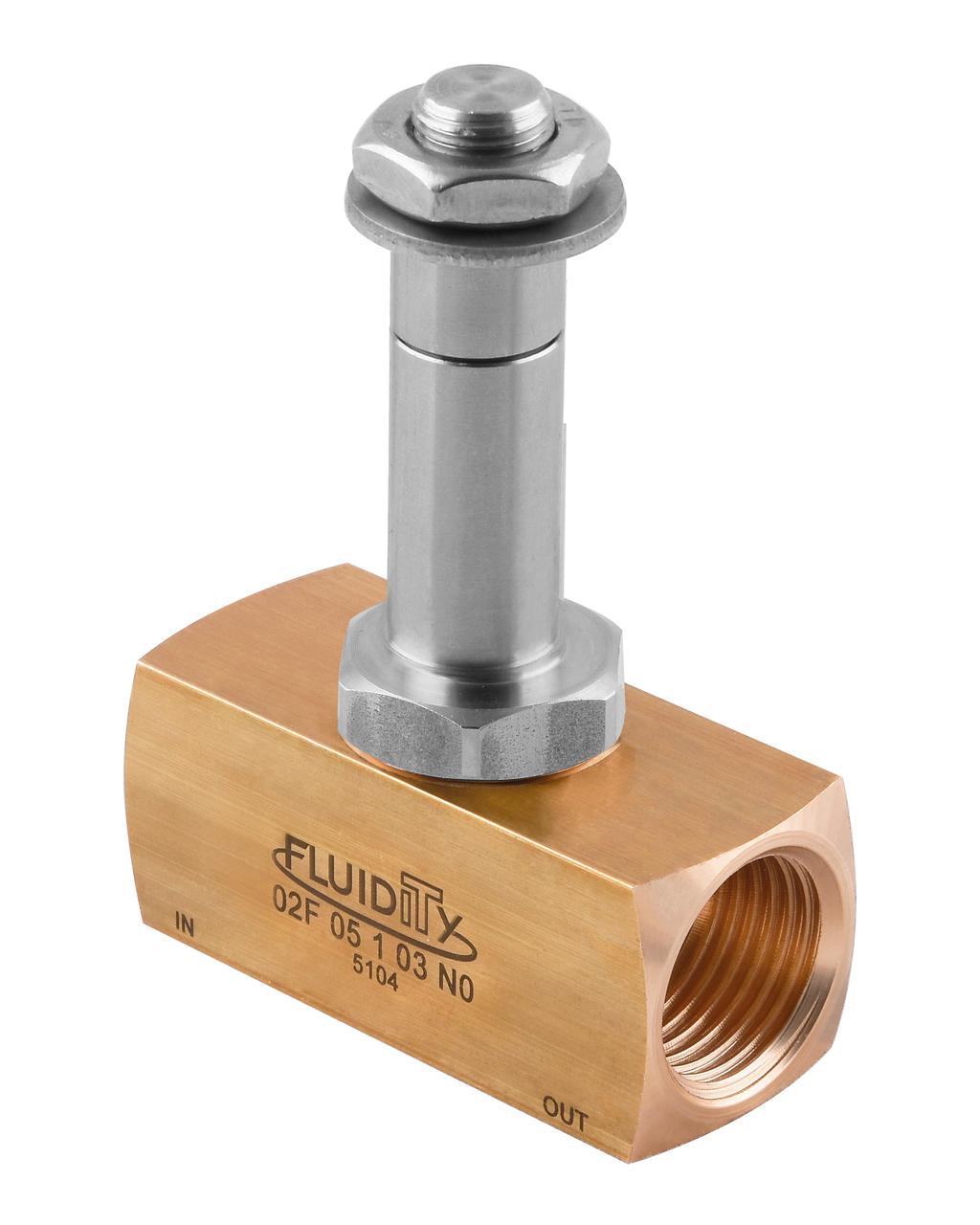

Serie 02F - 2/2 NC - 3/8"-1/2"
ELECTROVÁLVULAS DE ACCIONAMIENTO DIRECTO
Características técnicas / catálogoEtiquetas aignep scan Certificaciones
| Código | Diseño 3D | Material juntas | Temperatura | Conexiones | Ø Orificio (mm) | Viscosidad (cSt) | Kv (m3/h) | OPD (ΔP) - DC (8 W) | OPD (ΔP) - DC (14 W) | OPD (ΔP) - DC (22 W) | OPD (ΔP) - AC (14 VA) | OPD (ΔP) - AC (21 VA) | OPD (ΔP) - AC (31 VA) | Embute |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 02F 04 1 03 N 0 | Download | NBR | -10°C +90°C | 3/8" | 3 | 53 | 0.21 | 0 - 10 bar | 0 - 16 bar | 0 - 40 bar | 0 - 21 bar | 0 - 30 bar | 0 - 40 bar | 1 |
| 02F 04 1 03 F 0 | Download | NBR | -40°C +90°C | 3/8" | 3 | 53 | 0.21 | 0 - 10 bar | 0 - 16 bar | 0 - 40 bar | 0 - 21 bar | 0 - 30 bar | 0 - 40 bar | 1 |
| 02F 04 1 03 V 0 | Download | FKM | -10°C +140°C | 3/8" | 3 | 53 | 0.21 | 0 - 10 bar | 0 - 16 bar | 0 - 40 bar | 0 - 21 bar | 0 - 30 bar | 0 - 40 bar | 1 |
| 02F 04 1 03 E 0 | Download | EPDM | -10°C +140°C | 3/8" | 3 | 53 | 0.21 | 0 - 10 bar | 0 - 16 bar | 0 - 40 bar | 0 - 21 bar | 0 - 30 bar | 0 - 40 bar | 1 |
| 02F 04 1 03 P 0 | Download | PTFE | -40°C +180°C | 3/8" | 3 | 53 | 0.21 | 0 - 10 bar | 0 - 16 bar | 0 - 40 bar | 0 - 21 bar | 0 - 30 bar | 0 - 40 bar | 1 |
| 02F 04 1 04 N 0 | Download | NBR | -10°C +90°C | 3/8" | 4 | 53 | 0.35 | 0 - 3 bar | 0 - 6 bar | 0 - 15 bar | 0 - 10 bar | 0 - 14 bar | 0 - 20 bar | 1 |
| 02F 04 1 04 F 0 | Download | NBR | -40°C +90°C | 3/8" | 4 | 53 | 0.35 | 0 - 3 bar | 0 - 6 bar | 0 - 15 bar | 0 - 10 bar | 0 - 14 bar | 0 - 20 bar | 1 |
| 02F 04 1 04 V 0 | Download | FKM | -10°C +140°C | 3/8" | 4 | 53 | 0.35 | 0 - 3 bar | 0 - 6 bar | 0 - 15 bar | 0 - 10 bar | 0 - 14 bar | 0 - 20 bar | 1 |
| 02F 04 1 04 E 0 | Download | EPDM | -10°C +140°C | 3/8" | 4 | 53 | 0.35 | 0 - 3 bar | 0 - 6 bar | 0 - 15 bar | 0 - 10 bar | 0 - 14 bar | 0 - 20 bar | 1 |
| 02F 04 1 04 P 0 | Download | PTFE | -40°C +180°C | 3/8" | 4 | 53 | 0.35 | 0 - 3 bar | 0 - 6 bar | 0 - 15 bar | 0 - 10 bar | 0 - 14 bar | 0 - 20 bar | 1 |
| 02F 04 1 05 N 0 | Download | NBR | -10°C +90°C | 3/8" | 5 | 53 | 0.51 | 0 - 1.4 bar | 0 - 2.2 bar | 0 - 5.5 bar | 0 - 5 bar | 0 - 7 bar | 0 - 10 bar | 1 |
| 02F 04 1 05 F 0 | Download | NBR | -40°C +90°C | 3/8" | 5 | 53 | 0.51 | 0 - 1.4 bar | 0 - 2.2 bar | 0 - 5.5 bar | 0 - 5 bar | 0 - 7 bar | 0 - 10 bar | 1 |
| 02F 04 1 05 V 0 | Download | FKM | -10°C +140°C | 3/8" | 5 | 53 | 0.51 | 0 - 1.4 bar | 0 - 2.2 bar | 0 - 5.5 bar | 0 - 5 bar | 0 - 7 bar | 0 - 10 bar | 1 |
| 02F 04 1 05 E 0 | Download | EPDM | -10°C +140°C | 3/8" | 5 | 53 | 0.51 | 0 - 1.4 bar | 0 - 2.2 bar | 0 - 5.5 bar | 0 - 5 bar | 0 - 7 bar | 0 - 10 bar | 1 |
| 02F 04 1 05 P 0 | Download | PTFE | -40°C +180°C | 3/8" | 5 | 53 | 0.51 | 0 - 1.4 bar | 0 - 2.2 bar | 0 - 5.5 bar | 0 - 5 bar | 0 - 7 bar | 0 - 10 bar | 1 |
| 02F 04 1 64 N 0 | Download | NBR | -10°C +90°C | 3/8" | 6.4 | 53 | 0.65 | - | 0 - 1.5 bar | 0 - 4.5 bar | 0 - 2.5 bar | 0 - 3.5 bar | 0 - 5 bar | 1 |
| 02F 04 1 64 V 0 | Download | FKM | -10°C +140°C | 3/8" | 6.4 | 53 | 0.65 | - | 0 - 1.5 bar | 0 - 4.5 bar | 0 - 2.5 bar | 0 - 3.5 bar | 0 - 5 bar | 1 |
| 02F 04 1 64 E 0 | Download | EPDM | -10°C +140°C | 3/8" | 6.4 | 53 | 0.65 | - | 0 - 1.5 bar | 0 - 4.5 bar | 0 - 2.5 bar | 0 - 3.5 bar | 0 - 5 bar | 1 |
| 02F 04 1 64 P 0 | Download | PTFE | -40°C +180°C | 3/8" | 6.4 | 53 | 0.65 | - | 0 - 1.5 bar | 0 - 4.5 bar | 0 - 2.5 bar | 0 - 3.5 bar | 0 - 5 bar | 1 |
| 02F 05 1 03 N 0 | Download | NBR | -10°C +90°C | 1/2" | 3 | 53 | 0.21 | 0 - 10 bar | 0 - 16 bar | 0 - 40 bar | 0 - 21 bar | 0 - 30 bar | 0 - 40 bar | 1 |
| 02F 05 1 03 F 0 | Download | NBR | -40°C +90°C | 1/2" | 3 | 53 | 0.21 | 0 - 10 bar | 0 - 16 bar | 0 - 40 bar | 0 - 21 bar | 0 - 30 bar | 0 - 40 bar | 1 |
| 02F 05 1 03 V 0 | Download | FKM | -10°C +140°C | 1/2" | 3 | 53 | 0.21 | 0 - 10 bar | 0 - 16 bar | 0 - 40 bar | 0 - 21 bar | 0 - 30 bar | 0 - 40 bar | 1 |
| 02F 05 1 03 E 0 | Download | EPDM | -10°C +140°C | 1/2" | 3 | 53 | 0.21 | 0 - 10 bar | 0 - 16 bar | 0 - 40 bar | 0 - 21 bar | 0 - 30 bar | 0 - 40 bar | 1 |
| 02F 05 1 03 P 0 | Download | PTFE | -40°C +180°C | 1/2" | 3 | 53 | 0.21 | 0 - 10 bar | 0 - 16 bar | 0 - 40 bar | 0 - 21 bar | 0 - 30 bar | 0 - 40 bar | 1 |
| 02F 05 1 04 N 0 | Download | NBR | -10°C +90°C | 1/2" | 4 | 53 | 0.35 | 0 - 3 bar | 0 - 6 bar | 0 - 15 bar | 0 - 10 bar | 0 - 14 bar | 0 - 20 bar | 1 |
| 02F 05 1 04 F 0 | Download | NBR | -40°C +90°C | 1/2" | 4 | 53 | 0.35 | 0 - 3 bar | 0 - 6 bar | 0 - 15 bar | 0 - 10 bar | 0 - 14 bar | 0 - 20 bar | 1 |
| 02F 05 1 04 V 0 | Download | FKM | -10°C +140°C | 1/2" | 4 | 53 | 0.35 | 0 - 3 bar | 0 - 6 bar | 0 - 15 bar | 0 - 10 bar | 0 - 14 bar | 0 - 20 bar | 1 |
| 02F 05 1 04 E 0 | Download | EPDM | -10°C +140°C | 1/2" | 4 | 53 | 0.35 | 0 - 3 bar | 0 - 6 bar | 0 - 15 bar | 0 - 10 bar | 0 - 14 bar | 0 - 20 bar | 1 |
| 02F 05 1 04 P 0 | Download | PTFE | -40°C +180°C | 1/2" | 4 | 53 | 0.35 | 0 - 3 bar | 0 - 6 bar | 0 - 15 bar | 0 - 10 bar | 0 - 14 bar | 0 - 20 bar | 1 |
| 02F 05 1 05 N 0 | Download | NBR | -10°C +90°C | 1/2" | 5 | 53 | 0.51 | 0 - 1.4 bar | 0 - 2.2 bar | 0 - 5.5 bar | 0 - 5 bar | 0 - 7 bar | 0 - 10 bar | 1 |
| 02F 05 1 05 F 0 | Download | NBR | -40°C +90°C | 1/2" | 5 | 53 | 0.51 | 0 - 1.4 bar | 0 - 2.2 bar | 0 - 5.5 bar | 0 - 5 bar | 0 - 7 bar | 0 - 10 bar | 1 |
| 02F 05 1 05 V 0 | Download | FKM | -10°C +140°C | 1/2" | 5 | 53 | 0.51 | 0 - 1.4 bar | 0 - 2.2 bar | 0 - 5.5 bar | 0 - 5 bar | 0 - 7 bar | 0 - 10 bar | 1 |
| 02F 05 1 05 E 0 | Download | EPDM | -10°C +140°C | 1/2" | 5 | 53 | 0.51 | 0 - 1.4 bar | 0 - 2.2 bar | 0 - 5.5 bar | 0 - 5 bar | 0 - 7 bar | 0 - 10 bar | 1 |
| 02F 05 1 05 P 0 | Download | PTFE | -40°C +180°C | 1/2" | 5 | 53 | 0.51 | 0 - 1.4 bar | 0 - 2.2 bar | 0 - 5.5 bar | 0 - 5 bar | 0 - 7 bar | 0 - 10 bar | 1 |
| 02F 05 1 64 N 0 | Download | NBR | -10°C +90°C | 1/2" | 6.4 | 53 | 0.65 | - | 0 - 1.5 bar | 0 - 4.5 bar | 0 - 2.5 bar | 0 - 3.5 bar | 0 - 5 bar | 1 |
| 02F 05 1 64 V 0 | Download | FKM | -10°C +140°C | 1/2" | 6.4 | 53 | 0.65 | - | 0 - 1.5 bar | 0 - 4.5 bar | 0 - 2.5 bar | 0 - 3.5 bar | 0 - 5 bar | 1 |
| 02F 05 1 64 E 0 | Download | EPDM | -10°C +140°C | 1/2" | 6.4 | 53 | 0.65 | - | 0 - 1.5 bar | 0 - 4.5 bar | 0 - 2.5 bar | 0 - 3.5 bar | 0 - 5 bar | 1 |
| 02F 05 1 64 P 0 | Download | PTFE | -40°C +180°C | 1/2" | 6.4 | 53 | 0.65 | - | 0 - 1.5 bar | 0 - 4.5 bar | 0 - 2.5 bar | 0 - 3.5 bar | 0 - 5 bar | 1 |
