Actuadores Neumáticos>

Serie E

>EH

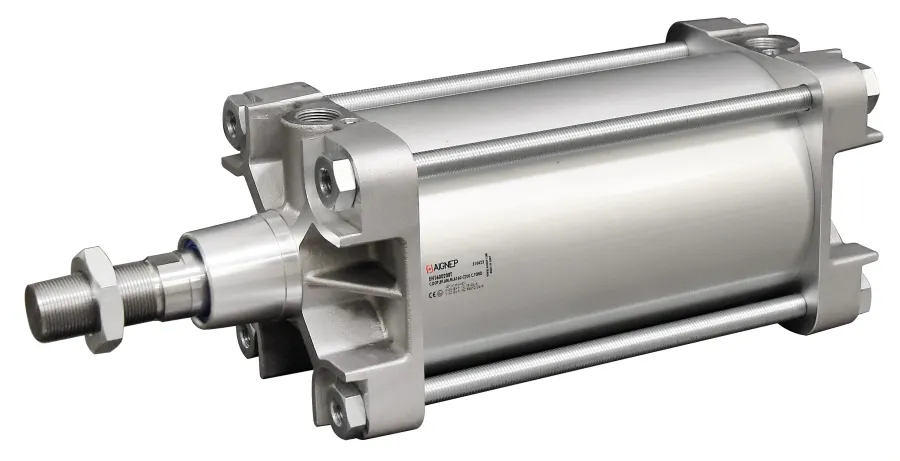

EH

DOBLE EFECTO AMORTIGUADO MAGNÉTICO

Características técnicas / catálogoEtiquetas aignep scan Instrucción / Ejemplo de aplicación Certificaciones
DOBLE EFECTO AMORTIGUADO MAGNÉTICO
DOBLE EFECTO AMORTIGUADO MAGNÉTICO

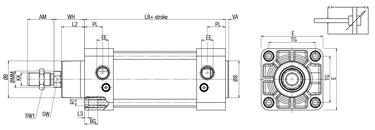

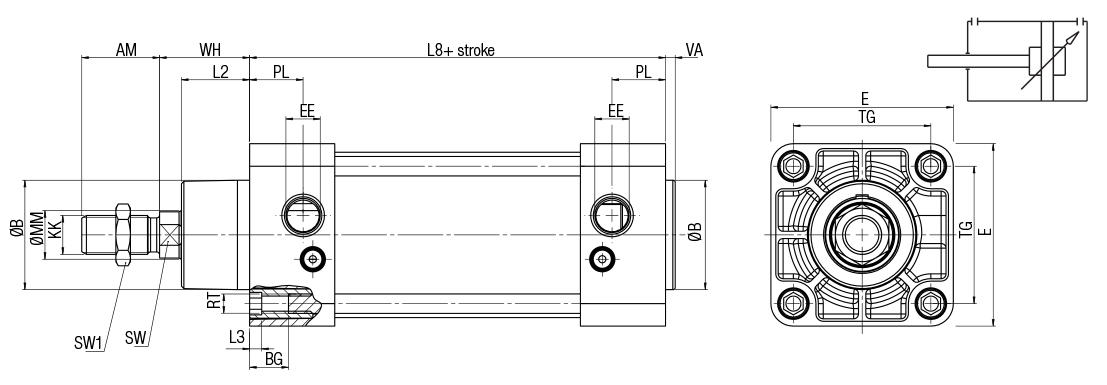

Código  Diseño 3D Ø Carrera Ø B d11 VA L2 WH Ø MM SW KK AM L8 BG RT E TG EE PL L3 ZM
EH 160 0025 T     Download 160 25 65 6 55 80 40 36 M36X2 72 180 24 M16 180 140 G 3/4 29 0 340
EH 160 0050 T     Download 160 50 65 6 55 80 40 36 M36X2 72 180 24 M16 180 140 G 3/4 29 0 340
EH 160 0075 T     Download 160 75 65 6 55 80 40 36 M36X2 72 180 24 M16 180 140 G 3/4 29 0 340
EH 160 0080 T     Download 160 80 65 6 55 80 40 36 M36X2 72 180 24 M16 180 140 G 3/4 29 0 340
EH 160 0100 T     Download 160 100 65 6 55 80 40 36 M36X2 72 180 24 M16 180 140 G 3/4 29 0 340
EH 160 0125 T     Download 160 125 65 6 55 80 40 36 M36X2 72 180 24 M16 180 140 G 3/4 29 0 340
EH 160 0150 T     Download 160 150 65 6 55 80 40 36 M36X2 72 180 24 M16 180 140 G 3/4 29 0 340
EH 160 0160 T     Download 160 160 65 6 55 80 40 36 M36X2 72 180 24 M16 180 140 G 3/4 29 0 340
EH 160 0200 T     Download 160 200 65 6 55 80 40 36 M36X2 72 180 24 M16 180 140 G 3/4 29 0 340
EH 160 0250 T     Download 160 250 65 6 55 80 40 36 M36X2 72 180 24 M16 180 140 G 3/4 29 0 340
EH 160 0300 T     Download 160 300 65 6 55 80 40 36 M36X2 72 180 24 M16 180 140 G 3/4 29 0 340
EH 160 0320 T     Download 160 320 65 6 55 80 40 36 M36X2 72 180 24 M16 180 140 G 3/4 29 0 340
EH 160 0350 T     Download 160 350 65 6 55 80 40 36 M36X2 72 180 24 M16 180 140 G 3/4 29 0 340
EH 160 0400 T     Download 160 400 65 6 55 80 40 36 M36X2 72 180 24 M16 180 140 G 3/4 29 0 340
EH 160 0450 T     Download 160 450 65 6 55 80 40 36 M36X2 72 180 24 M16 180 140 G 3/4 29 0 340
EH 160 0500 T     Download 160 500 65 6 55 80 40 36 M36X2 72 180 24 M16 180 140 G 3/4 29 0 340
EH 160 0600 T     Download 160 600 65 6 55 80 40 36 M36X2 72 180 24 M16 180 140 G 3/4 29 0 340
EH 160 0700 T     Download 160 700 65 6 55 80 40 36 M36X2 72 180 24 M16 180 140 G 3/4 29 0 340
EH 160 0800 T     Download 160 800 65 6 55 80 40 36 M36X2 72 180 24 M16 180 140 G 3/4 29 0 340
EH 160 0900 T     Download 160 900 65 6 55 80 40 36 M36X2 72 180 24 M16 180 140 G 3/4 29 0 340
EH 160 1000 T     Download 160 1000 65 6 55 80 40 36 M36X2 72 180 24 M16 180 140 G 3/4 29 0 340
EH 200 0025 T     Download 200 25 75 6 60 95 40 36 M36X2 72 180 24 M16 220 175 G 3/4 29 0 370
EH 200 0050 T     Download 200 50 75 6 60 95 40 36 M36X2 72 180 24 M16 220 175 G 3/4 29 0 370
EH 200 0075 T     Download 200 75 75 6 60 95 40 36 M36X2 72 180 24 M16 220 175 G 3/4 29 0 370
EH 200 0080 T     Download 200 80 75 6 60 95 40 36 M36X2 72 180 24 M16 220 175 G 3/4 29 0 370
EH 200 0100 T     Download 200 100 75 6 60 95 40 36 M36X2 72 180 24 M16 220 175 G 3/4 29 0 370
EH 200 0125 T     Download 200 125 75 6 60 95 40 36 M36X2 72 180 24 M16 220 175 G 3/4 29 0 370
EH 200 0150 T     Download 200 150 75 6 60 95 40 36 M36X2 72 180 24 M16 220 175 G 3/4 29 0 370
EH 200 0160 T     Download 200 160 75 6 60 95 40 36 M36X2 72 180 24 M16 220 175 G 3/4 29 0 370
EH 200 0200 T     Download 200 200 75 6 60 95 40 36 M36X2 72 180 24 M16 220 175 G 3/4 29 0 370
EH 200 0250 T     Download 200 320 75 6 60 95 40 36 M36X2 72 180 24 M16 220 175 G 3/4 29 0 370
EH 200 0300 T     Download 200 300 75 6 60 95 40 36 M36X2 72 180 24 M16 220 175 G 3/4 29 0 370
EH 200 0320 T     Download 200 320 75 6 60 95 40 36 M36X2 72 180 24 M16 220 175 G 3/4 29 0 370
EH 200 0350 T     Download 200 350 75 6 60 95 40 36 M36X2 72 180 24 M16 220 175 G 3/4 29 0 370
EH 200 0400 T     Download 200 400 75 6 60 95 40 36 M36X2 72 180 24 M16 220 175 G 3/4 29 0 370
EH 200 0450 T     Download 200 450 75 6 60 95 40 36 M36X2 72 180 24 M16 220 175 G 3/4 29 0 370
EH 200 0500 T     Download 200 500 75 6 60 95 40 36 M36X2 72 180 24 M16 220 175 G 3/4 29 0 370
EH 200 0600 T     Download 200 600 75 6 60 95 40 36 M36X2 72 180 24 M16 220 175 G 3/4 29 0 370
EH 200 0700 T     Download 200 700 75 6 60 95 40 36 M36X2 72 180 24 M16 220 175 G 3/4 29 0 370
EH 200 0800 T     Download 200 800 75 6 60 95 40 36 M36X2 72 180 24 M16 220 175 G 3/4 29 0 370
EH 200 0900 T     Download 200 900 75 6 60 95 40 36 M36X2 72 180 24 M16 220 175 G 3/4 29 0 370
EH 200 1000 T     Download 200 1000 75 6 60 95 40 36 M36X2 72 180 24 M16 220 175 G 3/4 29 0 370
EH 250 0025 T     Download 250 25 90 10 75 105 50 46 M42X2 84 200 25 M20 275 220 G 1" 31 0 410
EH 250 0050 T     Download 250 50 90 10 75 105 50 46 M42X2 84 200 25 M20 275 220 G 1" 31 0 410
EH 250 0075 T     Download 250 75 90 10 75 105 50 46 M42X2 84 200 25 M20 275 220 G 1" 31 0 410
EH 250 0080 T     Download 250 80 90 10 75 105 50 46 M42X2 84 200 25 M20 275 220 G 1" 31 0 410
EH 250 0100 T     Download 250 100 90 10 75 105 50 46 M42X2 84 200 25 M20 275 220 G 1" 31 0 410
EH 250 0125 T     Download 250 125 90 10 75 105 50 46 M42X2 84 200 25 M20 275 220 G 1" 31 0 410
EH 250 0150 T     Download 250 150 90 10 75 105 50 46 M42X2 84 200 25 M20 275 220 G 1" 31 0 410
EH 250 0160 T     Download 250 160 90 10 75 105 50 46 M42X2 84 200 25 M20 275 220 G 1" 31 0 410
EH 250 0200 T     Download 250 200 90 10 75 105 50 46 M42X2 84 200 25 M20 275 220 G 1" 31 0 410
EH 250 0250 T     Download 250 320 90 10 75 105 50 46 M42X2 84 200 25 M20 275 220 G 1" 31 0 410
EH 250 0300 T     Download 250 300 90 10 75 105 50 46 M42X2 84 200 25 M20 275 220 G 1" 31 0 410
EH 250 0320 T     Download 250 320 90 10 75 105 50 46 M42X2 84 200 25 M20 275 220 G 1" 31 0 410
EH 250 0350 T     Download 250 350 90 10 75 105 50 46 M42X2 84 200 25 M20 275 220 G 1" 31 0 410
EH 250 0400 T     Download 250 400 90 10 75 105 50 46 M42X2 84 200 25 M20 275 220 G 1" 31 0 410
EH 250 0450 T     Download 250 450 90 10 75 105 50 46 M42X2 84 200 25 M20 275 220 G 1" 31 0 410
EH 250 0500 T     Download 250 500 90 10 75 105 50 46 M42X2 84 200 25 M20 275 220 G 1" 31 0 410
EH 250 0600 T     Download 250 600 90 10 75 105 50 46 M42X2 84 200 25 M20 275 220 G 1" 31 0 410
EH 250 0700 T     Download 250 700 90 10 75 105 50 46 M42X2 84 200 25 M20 275 220 G 1" 31 0 410
EH 250 0800 T     Download 250 800 90 10 75 105 50 46 M42X2 84 200 25 M20 275 220 G 1" 31 0 410
EH 250 0900 T     Download 250 900 90 10 75 105 50 46 M42X2 84 200 25 M20 275 220 G 1" 31 0 410
EH 250 1000 T     Download 250 1000 90 10 75 105 50 46 M42X2 84 200 25 M20 275 220 G 1" 31 0 410
EH 320 0025 T     320 25 110 10 90 120 63 55 M48X2 96 220 30 M24 350 270 G 1" 30 0 460
EH 320 0050 T     320 50 110 10 90 120 63 55 M48X2 96 220 30 M24 350 270 G 1" 30 0 460
EH 320 0075 T     320 75 110 10 90 120 63 55 M48X2 96 220 30 M24 350 270 G 1" 30 0 460
EH 320 0080 T     320 80 110 10 90 120 63 55 M48X2 96 220 30 M24 350 270 G 1" 30 0 460
EH 320 0100 T     320 100 110 10 90 120 63 55 M48X2 96 220 30 M24 350 270 G 1" 30 0 460
EH 320 0125 T     320 125 110 10 90 120 63 55 M48X2 96 220 30 M24 350 270 G 1" 30 0 460
EH 320 0150 T     320 150 110 10 90 120 63 55 M48X2 96 220 30 M24 350 270 G 1" 30 0 460
EH 320 0160 T     320 160 110 10 90 120 63 55 M48X2 96 220 30 M24 350 270 G 1" 30 0 460
EH 320 0200 T     320 200 110 10 90 120 63 55 M48X2 96 220 30 M24 350 270 G 1" 30 0 460
EH 320 0250 T     320 320 110 10 90 120 63 55 M48X2 96 220 30 M24 350 270 G 1" 30 0 460
EH 320 0300 T     320 300 110 10 90 120 63 55 M48X2 96 220 30 M24 350 270 G 1" 30 0 460
EH 320 0320 T     320 320 110 10 90 120 63 55 M48X2 96 220 30 M24 350 270 G 1" 30 0 460
EH 320 0350 T     320 350 110 10 90 120 63 55 M48X2 96 220 30 M24 350 270 G 1" 30 0 460
EH 320 0400 T     320 400 110 10 90 120 63 55 M48X2 96 220 30 M24 350 270 G 1" 30 0 460
EH 320 0450 T     320 450 110 10 90 120 63 55 M48X2 96 220 30 M24 350 270 G 1" 30 0 460
EH 320 0500 T     320 500 110 10 90 120 63 55 M48X2 96 220 30 M24 350 270 G 1" 30 0 460
EH 320 0600 T     320 600 110 10 90 120 63 55 M48X2 96 220 30 M24 350 270 G 1" 30 0 460
EH 320 0700 T     320 700 110 10 90 120 63 55 M48X2 96 220 30 M24 350 270 G 1" 30 0 460
EH 320 0800 T     320 800 110 10 90 120 63 55 M48X2 96 220 30 M24 350 270 G 1" 30 0 460
EH 320 0900 T     320 900 110 10 90 120 63 55 M48X2 96 220 30 M24 350 270 G 1" 30 0 460
EH 320 1000 T     320 1000 110 10 90 120 63 55 M48X2 96 220 30 M24 350 270 G 1" 30 0 460
Código Diseño 3D Ø Carrera Ø B d11 VA L2 WH Ø MM SW KK AM L8 BG RT E TG EE PL L3 ZM
EH 160 0025 T Download 160 25 65 6 55 80 40 36 M36X2 72 180 24 M16 180 140 G 3/4 29 0 340
EH 160 0050 T Download 160 50 65 6 55 80 40 36 M36X2 72 180 24 M16 180 140 G 3/4 29 0 340
EH 160 0075 T Download 160 75 65 6 55 80 40 36 M36X2 72 180 24 M16 180 140 G 3/4 29 0 340
EH 160 0080 T Download 160 80 65 6 55 80 40 36 M36X2 72 180 24 M16 180 140 G 3/4 29 0 340
EH 160 0100 T Download 160 100 65 6 55 80 40 36 M36X2 72 180 24 M16 180 140 G 3/4 29 0 340
EH 160 0125 T Download 160 125 65 6 55 80 40 36 M36X2 72 180 24 M16 180 140 G 3/4 29 0 340
EH 160 0150 T Download 160 150 65 6 55 80 40 36 M36X2 72 180 24 M16 180 140 G 3/4 29 0 340
EH 160 0160 T Download 160 160 65 6 55 80 40 36 M36X2 72 180 24 M16 180 140 G 3/4 29 0 340
EH 160 0200 T Download 160 200 65 6 55 80 40 36 M36X2 72 180 24 M16 180 140 G 3/4 29 0 340
EH 160 0250 T Download 160 250 65 6 55 80 40 36 M36X2 72 180 24 M16 180 140 G 3/4 29 0 340
EH 160 0300 T Download 160 300 65 6 55 80 40 36 M36X2 72 180 24 M16 180 140 G 3/4 29 0 340
EH 160 0320 T Download 160 320 65 6 55 80 40 36 M36X2 72 180 24 M16 180 140 G 3/4 29 0 340
EH 160 0350 T Download 160 350 65 6 55 80 40 36 M36X2 72 180 24 M16 180 140 G 3/4 29 0 340
EH 160 0400 T Download 160 400 65 6 55 80 40 36 M36X2 72 180 24 M16 180 140 G 3/4 29 0 340
EH 160 0450 T Download 160 450 65 6 55 80 40 36 M36X2 72 180 24 M16 180 140 G 3/4 29 0 340
EH 160 0500 T Download 160 500 65 6 55 80 40 36 M36X2 72 180 24 M16 180 140 G 3/4 29 0 340
EH 160 0600 T Download 160 600 65 6 55 80 40 36 M36X2 72 180 24 M16 180 140 G 3/4 29 0 340
EH 160 0700 T Download 160 700 65 6 55 80 40 36 M36X2 72 180 24 M16 180 140 G 3/4 29 0 340
EH 160 0800 T Download 160 800 65 6 55 80 40 36 M36X2 72 180 24 M16 180 140 G 3/4 29 0 340
EH 160 0900 T Download 160 900 65 6 55 80 40 36 M36X2 72 180 24 M16 180 140 G 3/4 29 0 340
EH 160 1000 T Download 160 1000 65 6 55 80 40 36 M36X2 72 180 24 M16 180 140 G 3/4 29 0 340
EH 200 0025 T Download 200 25 75 6 60 95 40 36 M36X2 72 180 24 M16 220 175 G 3/4 29 0 370
EH 200 0050 T Download 200 50 75 6 60 95 40 36 M36X2 72 180 24 M16 220 175 G 3/4 29 0 370
EH 200 0075 T Download 200 75 75 6 60 95 40 36 M36X2 72 180 24 M16 220 175 G 3/4 29 0 370
EH 200 0080 T Download 200 80 75 6 60 95 40 36 M36X2 72 180 24 M16 220 175 G 3/4 29 0 370
EH 200 0100 T Download 200 100 75 6 60 95 40 36 M36X2 72 180 24 M16 220 175 G 3/4 29 0 370
EH 200 0125 T Download 200 125 75 6 60 95 40 36 M36X2 72 180 24 M16 220 175 G 3/4 29 0 370
EH 200 0150 T Download 200 150 75 6 60 95 40 36 M36X2 72 180 24 M16 220 175 G 3/4 29 0 370
EH 200 0160 T Download 200 160 75 6 60 95 40 36 M36X2 72 180 24 M16 220 175 G 3/4 29 0 370
EH 200 0200 T Download 200 200 75 6 60 95 40 36 M36X2 72 180 24 M16 220 175 G 3/4 29 0 370
EH 200 0250 T Download 200 320 75 6 60 95 40 36 M36X2 72 180 24 M16 220 175 G 3/4 29 0 370
EH 200 0300 T Download 200 300 75 6 60 95 40 36 M36X2 72 180 24 M16 220 175 G 3/4 29 0 370
EH 200 0320 T Download 200 320 75 6 60 95 40 36 M36X2 72 180 24 M16 220 175 G 3/4 29 0 370
EH 200 0350 T Download 200 350 75 6 60 95 40 36 M36X2 72 180 24 M16 220 175 G 3/4 29 0 370
EH 200 0400 T Download 200 400 75 6 60 95 40 36 M36X2 72 180 24 M16 220 175 G 3/4 29 0 370
EH 200 0450 T Download 200 450 75 6 60 95 40 36 M36X2 72 180 24 M16 220 175 G 3/4 29 0 370
EH 200 0500 T Download 200 500 75 6 60 95 40 36 M36X2 72 180 24 M16 220 175 G 3/4 29 0 370
EH 200 0600 T Download 200 600 75 6 60 95 40 36 M36X2 72 180 24 M16 220 175 G 3/4 29 0 370
EH 200 0700 T Download 200 700 75 6 60 95 40 36 M36X2 72 180 24 M16 220 175 G 3/4 29 0 370
EH 200 0800 T Download 200 800 75 6 60 95 40 36 M36X2 72 180 24 M16 220 175 G 3/4 29 0 370
EH 200 0900 T Download 200 900 75 6 60 95 40 36 M36X2 72 180 24 M16 220 175 G 3/4 29 0 370
EH 200 1000 T Download 200 1000 75 6 60 95 40 36 M36X2 72 180 24 M16 220 175 G 3/4 29 0 370
EH 250 0025 T Download 250 25 90 10 75 105 50 46 M42X2 84 200 25 M20 275 220 G 1" 31 0 410
EH 250 0050 T Download 250 50 90 10 75 105 50 46 M42X2 84 200 25 M20 275 220 G 1" 31 0 410
EH 250 0075 T Download 250 75 90 10 75 105 50 46 M42X2 84 200 25 M20 275 220 G 1" 31 0 410
EH 250 0080 T Download 250 80 90 10 75 105 50 46 M42X2 84 200 25 M20 275 220 G 1" 31 0 410
EH 250 0100 T Download 250 100 90 10 75 105 50 46 M42X2 84 200 25 M20 275 220 G 1" 31 0 410
EH 250 0125 T Download 250 125 90 10 75 105 50 46 M42X2 84 200 25 M20 275 220 G 1" 31 0 410
EH 250 0150 T Download 250 150 90 10 75 105 50 46 M42X2 84 200 25 M20 275 220 G 1" 31 0 410
EH 250 0160 T Download 250 160 90 10 75 105 50 46 M42X2 84 200 25 M20 275 220 G 1" 31 0 410
EH 250 0200 T Download 250 200 90 10 75 105 50 46 M42X2 84 200 25 M20 275 220 G 1" 31 0 410
EH 250 0250 T Download 250 320 90 10 75 105 50 46 M42X2 84 200 25 M20 275 220 G 1" 31 0 410
EH 250 0300 T Download 250 300 90 10 75 105 50 46 M42X2 84 200 25 M20 275 220 G 1" 31 0 410
EH 250 0320 T Download 250 320 90 10 75 105 50 46 M42X2 84 200 25 M20 275 220 G 1" 31 0 410
EH 250 0350 T Download 250 350 90 10 75 105 50 46 M42X2 84 200 25 M20 275 220 G 1" 31 0 410
EH 250 0400 T Download 250 400 90 10 75 105 50 46 M42X2 84 200 25 M20 275 220 G 1" 31 0 410
EH 250 0450 T Download 250 450 90 10 75 105 50 46 M42X2 84 200 25 M20 275 220 G 1" 31 0 410
EH 250 0500 T Download 250 500 90 10 75 105 50 46 M42X2 84 200 25 M20 275 220 G 1" 31 0 410
EH 250 0600 T Download 250 600 90 10 75 105 50 46 M42X2 84 200 25 M20 275 220 G 1" 31 0 410
EH 250 0700 T Download 250 700 90 10 75 105 50 46 M42X2 84 200 25 M20 275 220 G 1" 31 0 410
EH 250 0800 T Download 250 800 90 10 75 105 50 46 M42X2 84 200 25 M20 275 220 G 1" 31 0 410
EH 250 0900 T Download 250 900 90 10 75 105 50 46 M42X2 84 200 25 M20 275 220 G 1" 31 0 410
EH 250 1000 T Download 250 1000 90 10 75 105 50 46 M42X2 84 200 25 M20 275 220 G 1" 31 0 410
EH 320 0025 T 320 25 110 10 90 120 63 55 M48X2 96 220 30 M24 350 270 G 1" 30 0 460
EH 320 0050 T 320 50 110 10 90 120 63 55 M48X2 96 220 30 M24 350 270 G 1" 30 0 460
EH 320 0075 T 320 75 110 10 90 120 63 55 M48X2 96 220 30 M24 350 270 G 1" 30 0 460
EH 320 0080 T 320 80 110 10 90 120 63 55 M48X2 96 220 30 M24 350 270 G 1" 30 0 460
EH 320 0100 T 320 100 110 10 90 120 63 55 M48X2 96 220 30 M24 350 270 G 1" 30 0 460
EH 320 0125 T 320 125 110 10 90 120 63 55 M48X2 96 220 30 M24 350 270 G 1" 30 0 460
EH 320 0150 T 320 150 110 10 90 120 63 55 M48X2 96 220 30 M24 350 270 G 1" 30 0 460
EH 320 0160 T 320 160 110 10 90 120 63 55 M48X2 96 220 30 M24 350 270 G 1" 30 0 460
EH 320 0200 T 320 200 110 10 90 120 63 55 M48X2 96 220 30 M24 350 270 G 1" 30 0 460
EH 320 0250 T 320 320 110 10 90 120 63 55 M48X2 96 220 30 M24 350 270 G 1" 30 0 460
EH 320 0300 T 320 300 110 10 90 120 63 55 M48X2 96 220 30 M24 350 270 G 1" 30 0 460
EH 320 0320 T 320 320 110 10 90 120 63 55 M48X2 96 220 30 M24 350 270 G 1" 30 0 460
EH 320 0350 T 320 350 110 10 90 120 63 55 M48X2 96 220 30 M24 350 270 G 1" 30 0 460
EH 320 0400 T 320 400 110 10 90 120 63 55 M48X2 96 220 30 M24 350 270 G 1" 30 0 460
EH 320 0450 T 320 450 110 10 90 120 63 55 M48X2 96 220 30 M24 350 270 G 1" 30 0 460
EH 320 0500 T 320 500 110 10 90 120 63 55 M48X2 96 220 30 M24 350 270 G 1" 30 0 460
EH 320 0600 T 320 600 110 10 90 120 63 55 M48X2 96 220 30 M24 350 270 G 1" 30 0 460
EH 320 0700 T 320 700 110 10 90 120 63 55 M48X2 96 220 30 M24 350 270 G 1" 30 0 460
EH 320 0800 T 320 800 110 10 90 120 63 55 M48X2 96 220 30 M24 350 270 G 1" 30 0 460
EH 320 0900 T 320 900 110 10 90 120 63 55 M48X2 96 220 30 M24 350 270 G 1" 30 0 460
EH 320 1000 T 320 1000 110 10 90 120 63 55 M48X2 96 220 30 M24 350 270 G 1" 30 0 460
Imprime etiquetas seleccionadas ()×
