Filter
X1VS
SOLENOID PILOT VALVE
| Code | 3D Drawings | Ways | Reactuation | Function | Size | Working pressure | Bag | |
|---|---|---|---|---|---|---|---|---|

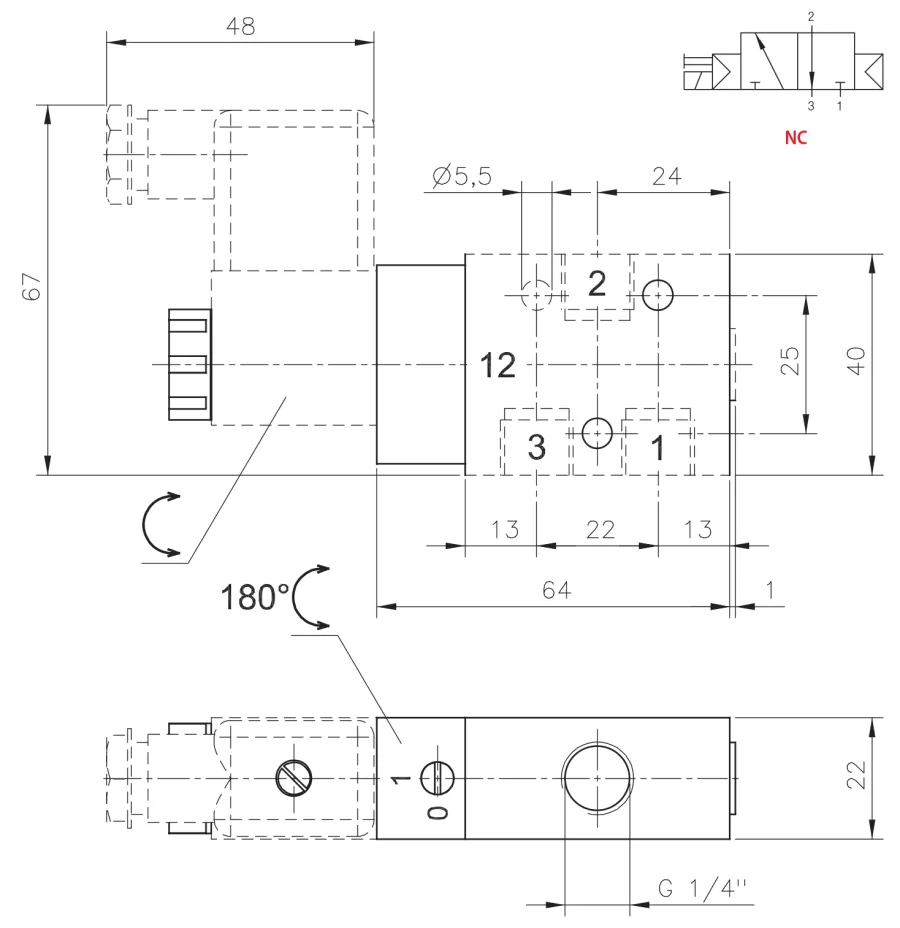

| X1V S4 3 NC 03 | Request access | 3/2 | MONOSTABLE PNEUMATIC RETURN | NC | 1/4 | 2÷10 bar | 1 | |

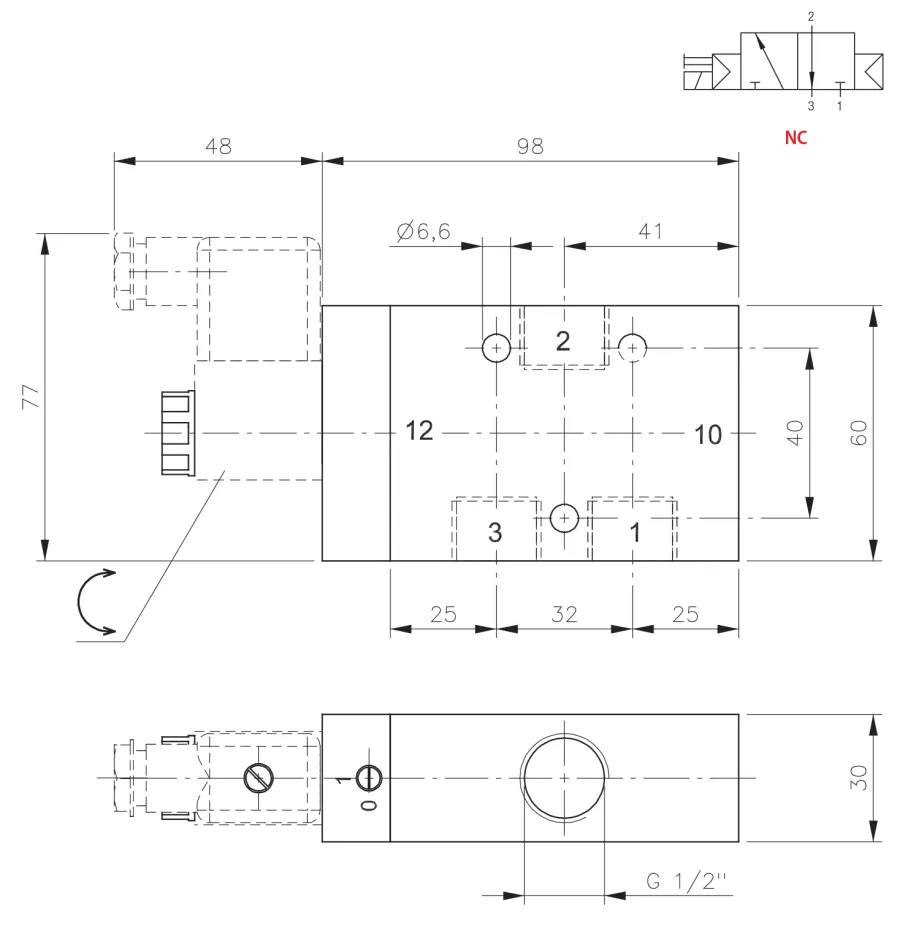

| X1V S4 3 NC 05 | Request access | 3/2 | MONOSTABLE PNEUMATIC RETURN | NC | 1/2 | 1÷10 bar | 1 | |

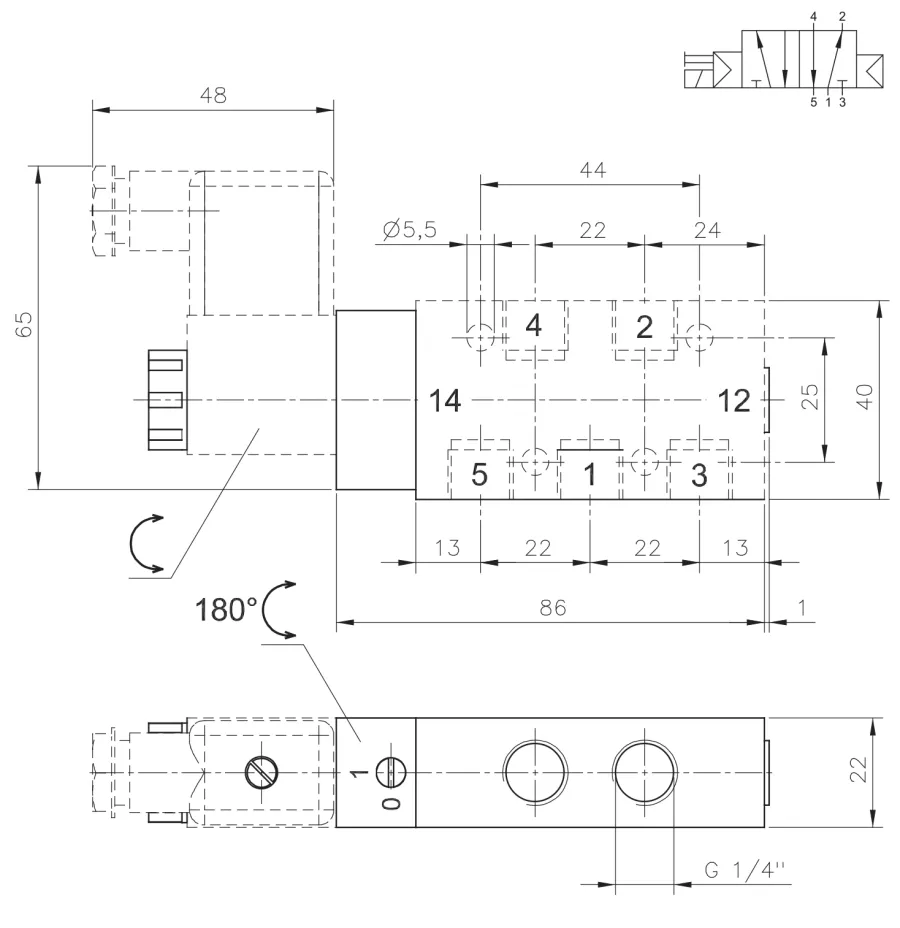

| X1V S4 5 00 03 | Request access | 5/2 | MONOSTABLE PNEUMATIC RETURN | 1/4 | 2÷10 bar | 1 | ||

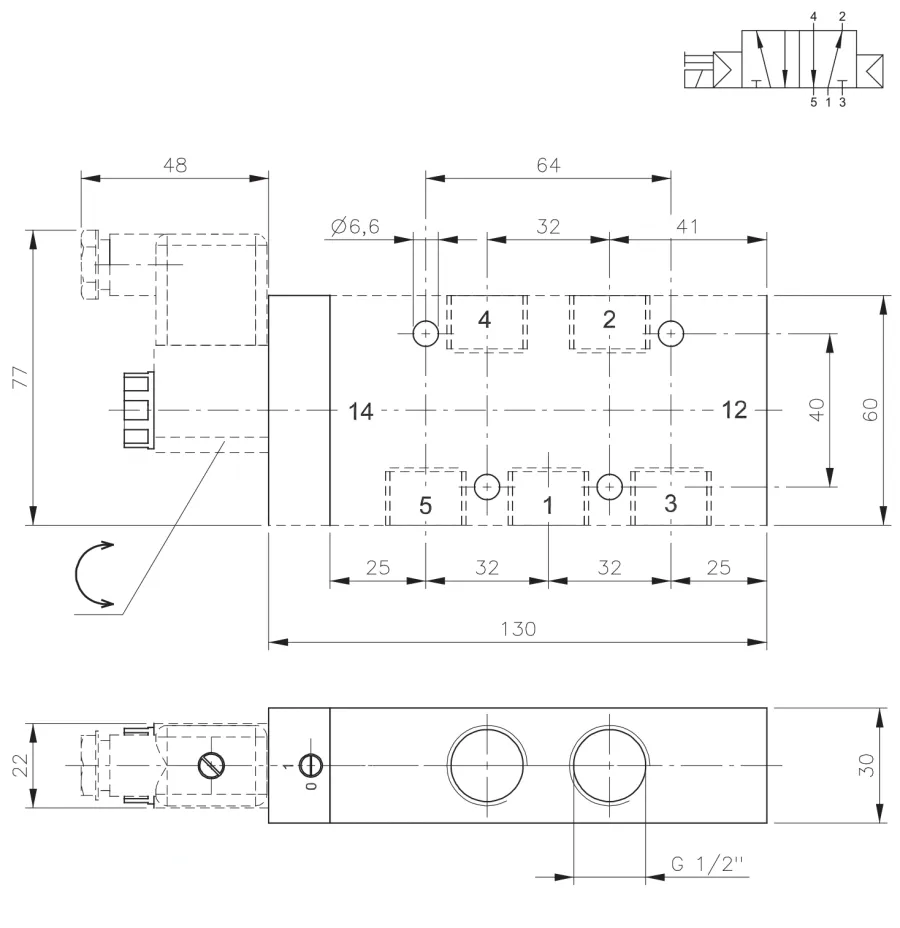

| X1V S4 5 00 05 | Request access | 5/2 | MONOSTABLE PNEUMATIC RETURN | 1/2 | 2÷10 bar | 1 | ||

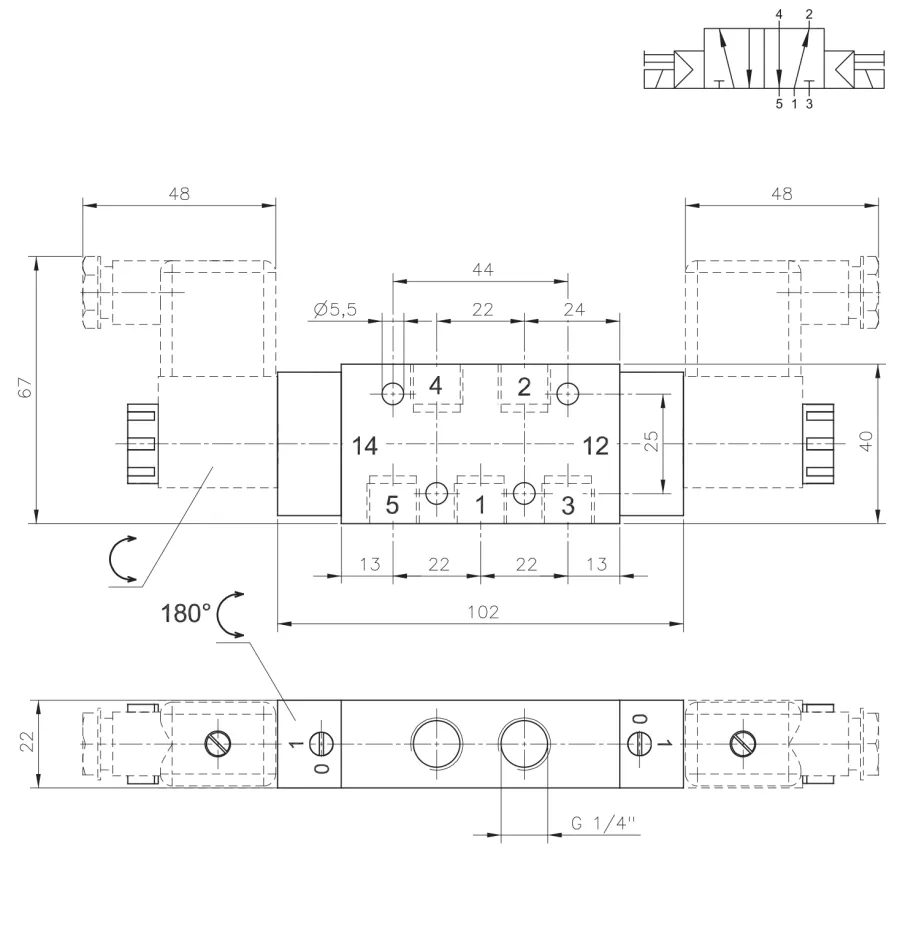

| X1V S1 5 00 03 | Request access | 5/2 | TWO STABLE POSITIONS | 1/4 | 2÷10 bar | 1 | ||

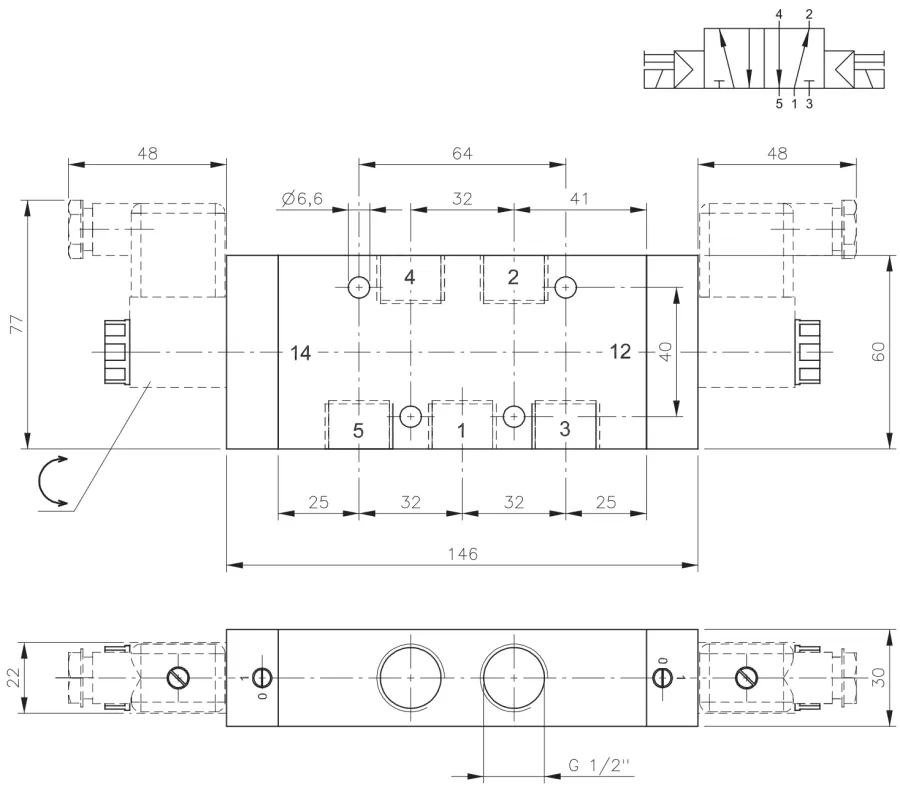

| X1V S1 5 00 05 | Request access | 5/2 | TWO STABLE POSITIONS | 1/2 | 1÷10 bar | 1 |
