| Code | 3D Drawings | Ways | Reactuation | Function | Size | Working pressure | Activation force | Bag | ||
|---|---|---|---|---|---|---|---|---|---|---|

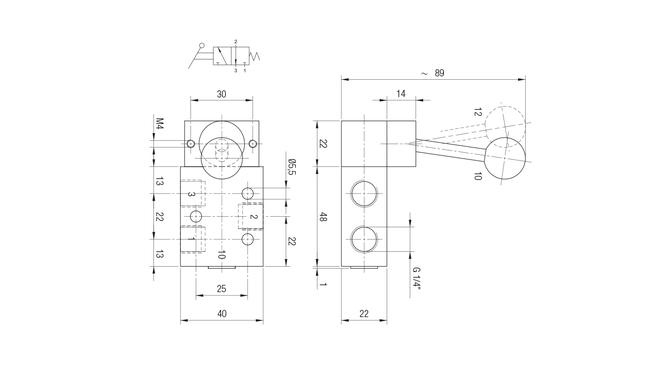

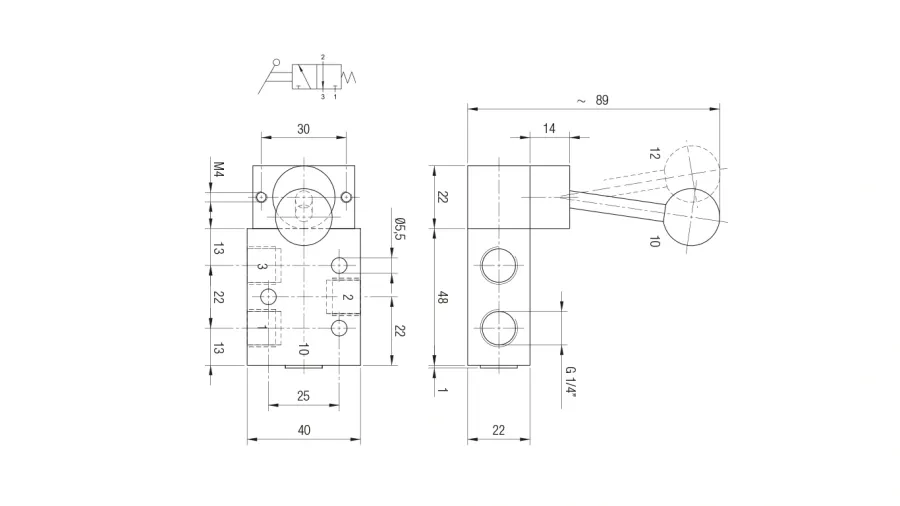

| X1V L0 3 NC 03 | Request access | 3/2 | MONOSTABLE SPRING RETURN | NC | 1/4 | 1÷10 bar | 20 N | 1 | ||
| X1V L1 3 00 03 | Request access | 3/2 | BISTABLE | 1/4 | 1÷10 bar | 20 N | 1 | |||

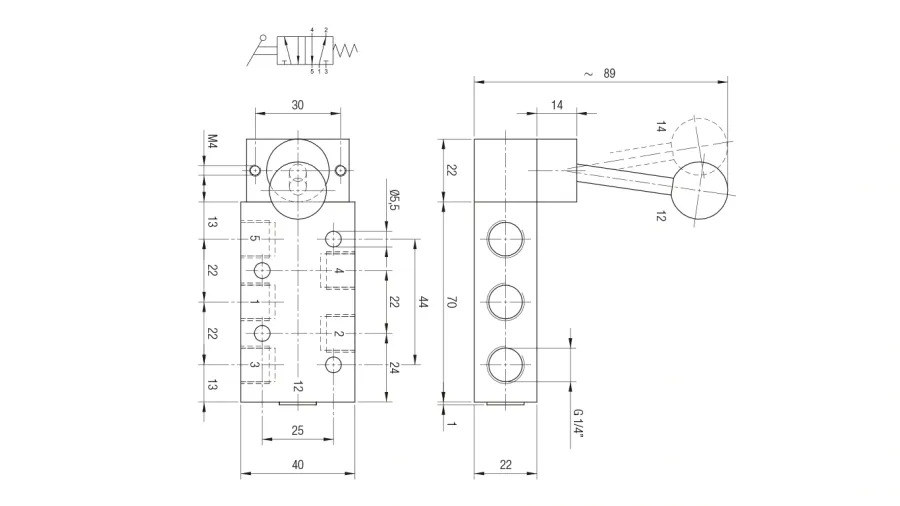

| X1V L0 5 00 03 | Request access | 5/2 | MONOSTABLE SPRING RETURN | 1/4 | 1÷10 bar | 20 N | 1 | |||

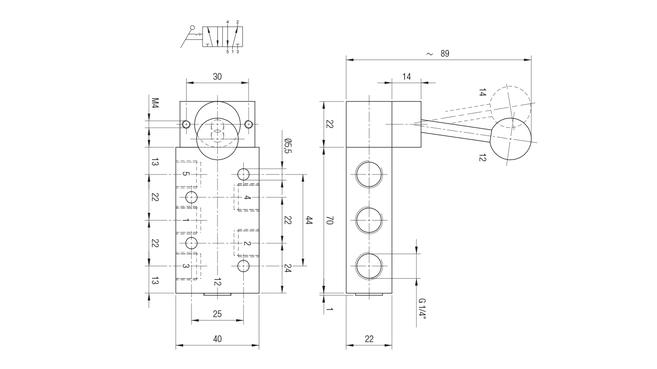

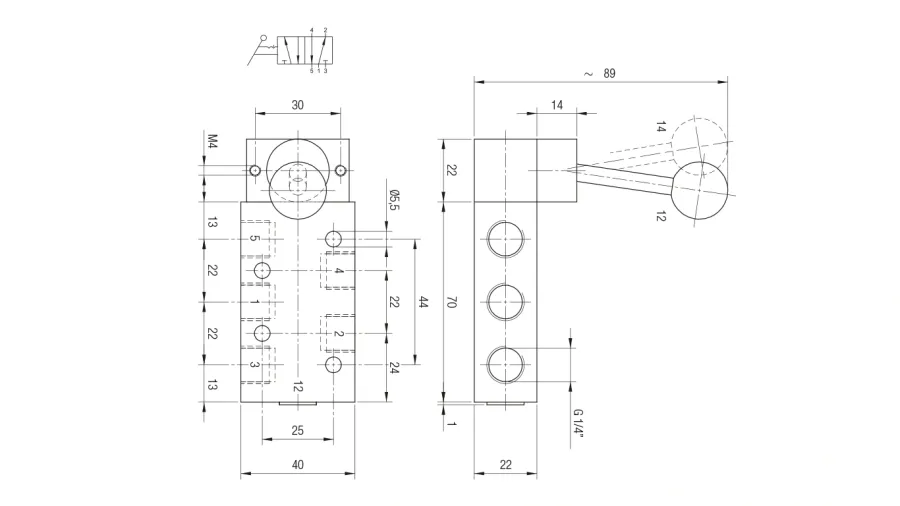

| X1V L1 5 00 03 | Request access | 5/2 | BISTABLE | 1/4 | 1÷10 bar | 20 N | 1 | |||
| X1V L0 7 CC 03 | Request access | 5/3 | MONOSTABLE SPRING RETURN | CC | 1/4 | 1÷10 bar | 20 N | 1 | ||
| X1V L0 7 OC 03 | Request access | 5/3 | MONOSTABLE SPRING RETURN | OC | 1/4 | 1÷10 bar | 20 N | 1 | ||

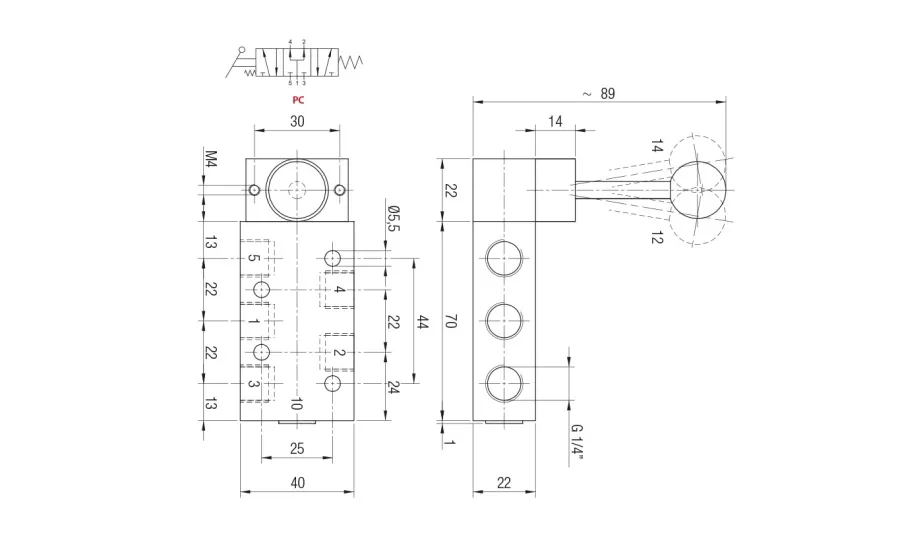

| X1V L0 7 PC 03 | Request access | 5/3 | MONOSTABLE SPRING RETURN | PC | 1/4 | 1÷10 bar | 20 N | 1 | ||

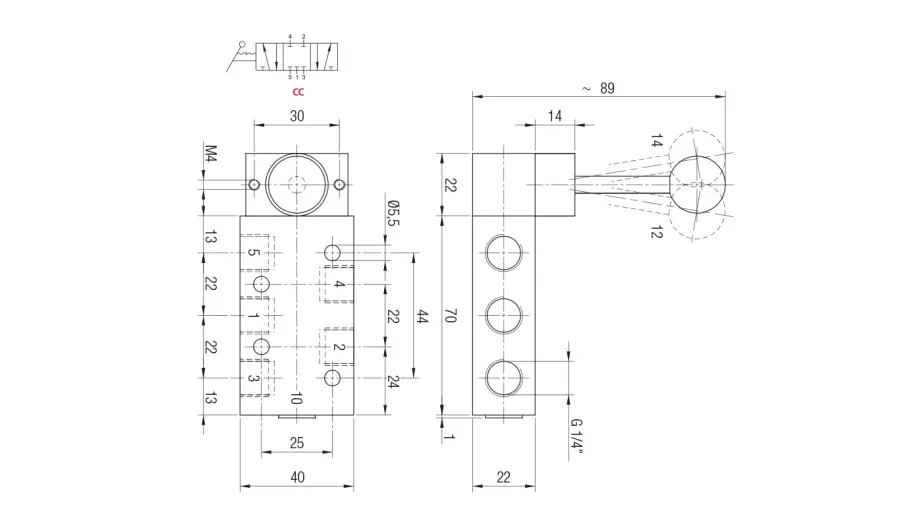

| X1V L2 7 CC 03 | Request access | 5/3 | 3 STABLE POSITIONS | CC | 1/4 | 1÷10 bar | 20 N | 1 | ||
| X1V L2 7 OC 03 | Request access | 5/3 | 3 STABLE POSITIONS | OC | 1/4 | 1÷10 bar | 20 N | 1 | ||

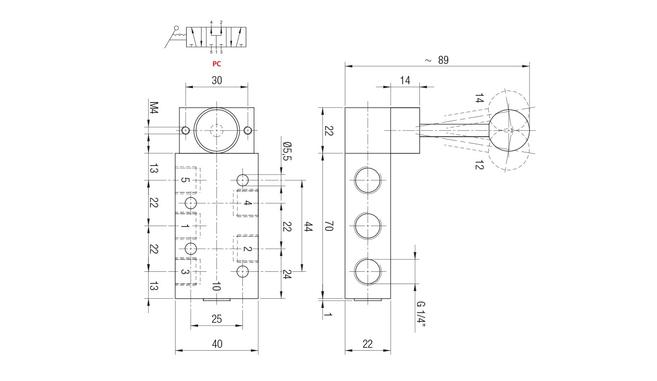

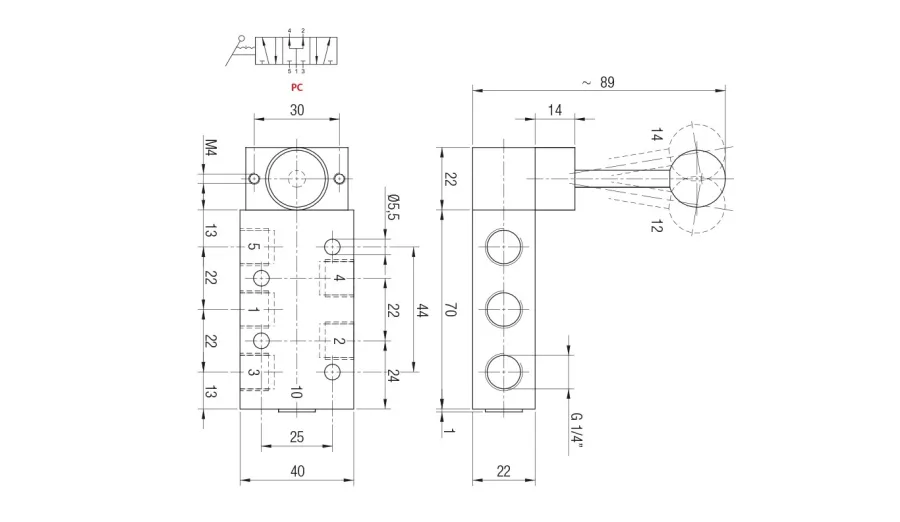

| X1V L2 7 PC 03 | Request access | 5/3 | 3 STABLE POSITIONS | PC | 1/4 | 1÷10 bar | 20 N | 1 |
