| Code | 3D Drawings | Ways | Reactuation | Flow Rate | Functioning | Weight | A | ||
|---|---|---|---|---|---|---|---|---|---|

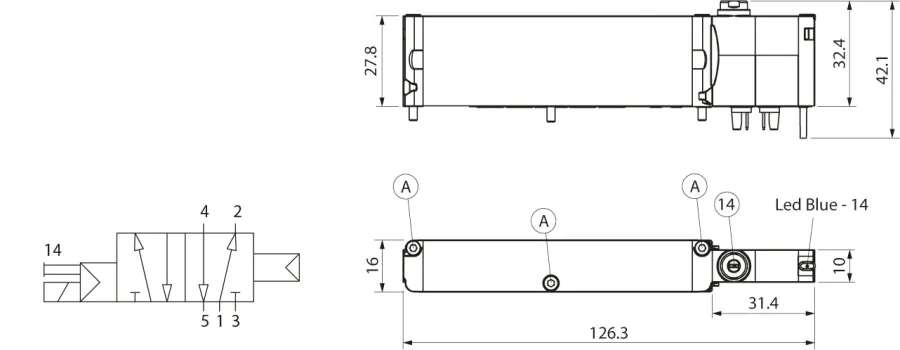

| 16V S4 5 00 00 | Request access | 5/2 | MONOSTABLE PNEUMATIC SPRING RETURN | 706 Nl/min | 112 g | 0,6 Nm | |||

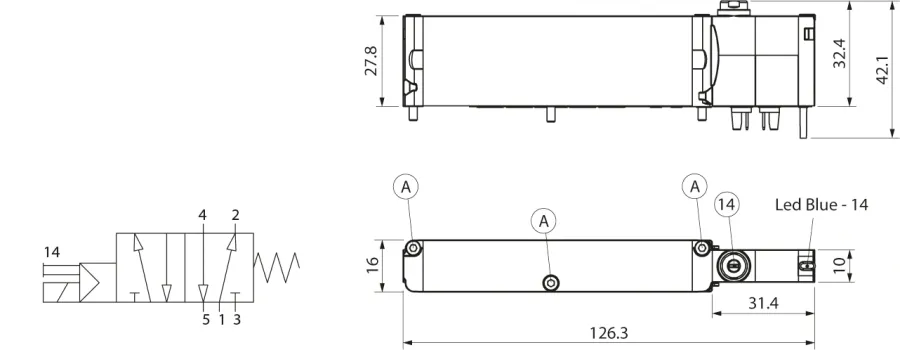

| 16V S0 5 00 00 | Request access | 5/2 | MONOSTABLE MECHANICAL SPRING RETURN | 706 Nl/min | 112 g | 0,6 Nm | |||

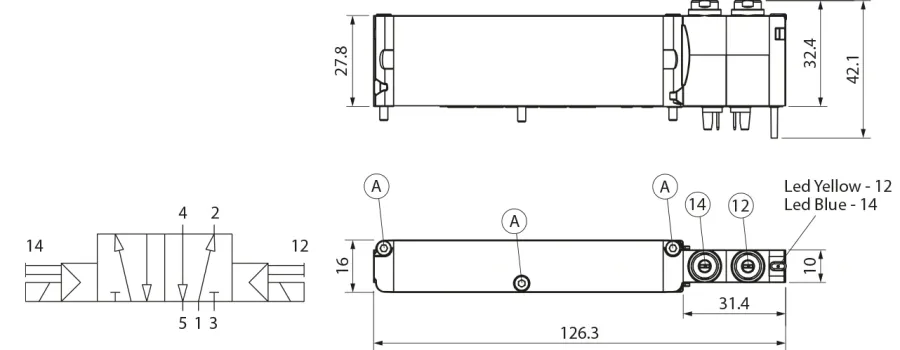

| 16V S1 5 00 00 | Request access | 5/2 | TWO STABLE POSITIONS | 706 Nl/min | 114 g | 0,6 Nm | |||

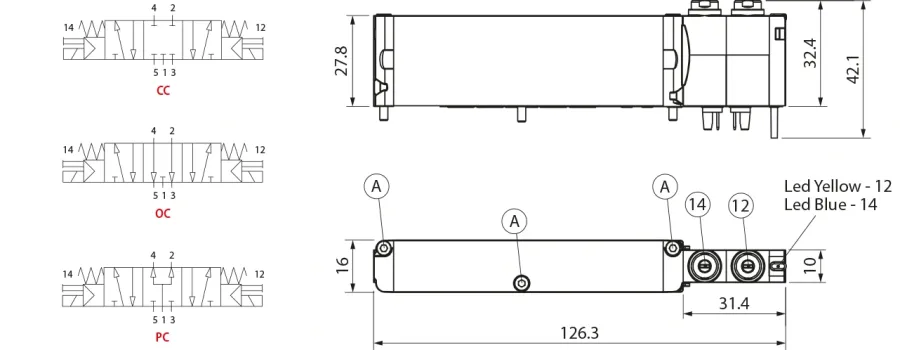

| 16V S0 7 CC 00 | Request access | 5/3 | MONOSTABLE MECHANICAL SPRING RETURN | 591 Nl/min | CC | 118 g | 0,6 Nm | ||
| 16V S0 7 OC 00 | Request access | 5/3 | MONOSTABLE MECHANICAL SPRING RETURN | 705 Nl/min | OC | 117 g | 0,6 Nm | ||
| 16V S0 7 PC 00 | Request access | 5/3 | MONOSTABLE MECHANICAL SPRING RETURN | 680 Nl/min | PC | 117 g | 0,6 Nm | ||

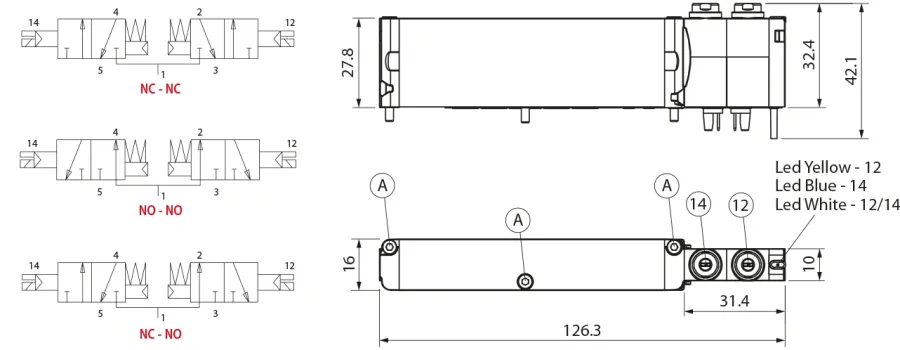

| 16V S0 8 NC 00 | Request access | 5/4 | DOUBLE 3/2 MONOSTABLE MECHANICAL SPRING RETURN | 553 Nl/min | NC | 120 g | 0,6 Nm | ||
| 16V S0 8 NO 00 | Request access | 5/4 | DOUBLE 3/2 MONOSTABLE MECHANICAL SPRING RETURN | 620 Nl/min | NO | 119 g | 0,6 Nm | ||
| 16V S0 8 NN 00 | Request access | 5/4 | DOUBLE 3/2 MONOSTABLE MECHANICAL SPRING RETURN | 553 Nl/min | NC-NO | 120 g | 0,6 Nm |
