Filter
| Code | 3D Drawings | Ways | Reactuation | Flow Rate | Functioning | Weight | ||
|---|---|---|---|---|---|---|---|---|

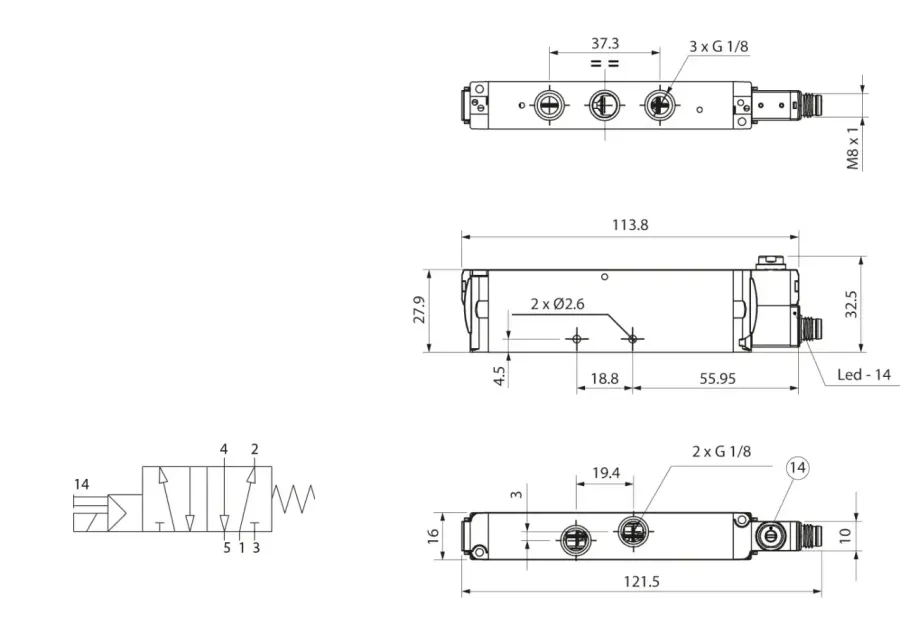

| 14V S4 5 00 02 | Request access | 5/2 | MONOSTABLE PNEUMATIC SPRING RETURN | 706 Nl/min | 105.5 g | |||
| 14V S0 5 00 02 | Request access | 5/2 | MONOSTABLE MECHANICAL SPRING RETURN | 706 Nl/min | 106 g | |||

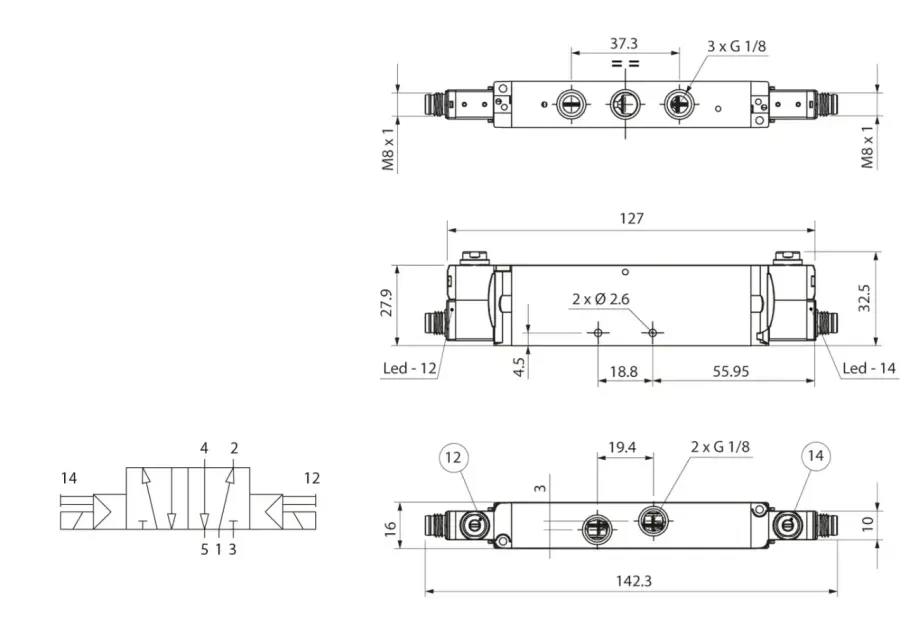

| 14V S1 5 00 02 | Request access | 5/2 | TWO STABLE POSITIONS | 706 Nl/min | 110.5 g | |||

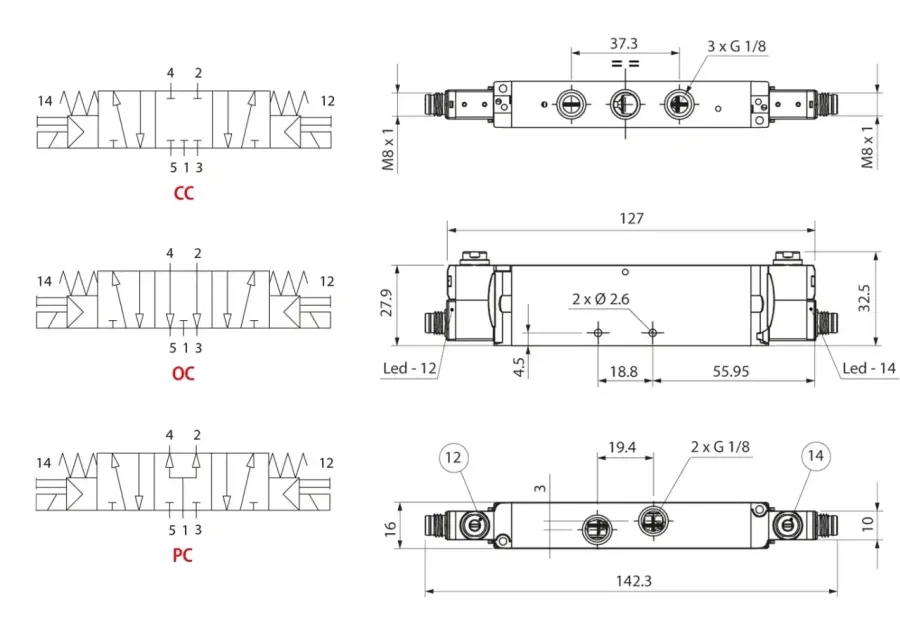

| 14V S0 7 CC 02 | Request access | 5/3 | MONOSTABLE MECHANICAL SPRING RETURN | 591 Nl/min | CC | 114.5 g | ||
| 14V S0 7 OC 02 | Request access | 5/3 | MONOSTABLE MECHANICAL SPRING RETURN | 705 Nl/min | OC | 113.5 g | ||
| 14V S0 7 PC 02 | Request access | 5/3 | MONOSTABLE MECHANICAL SPRING RETURN | 680 Nl/min | PC | 113.5 g | ||

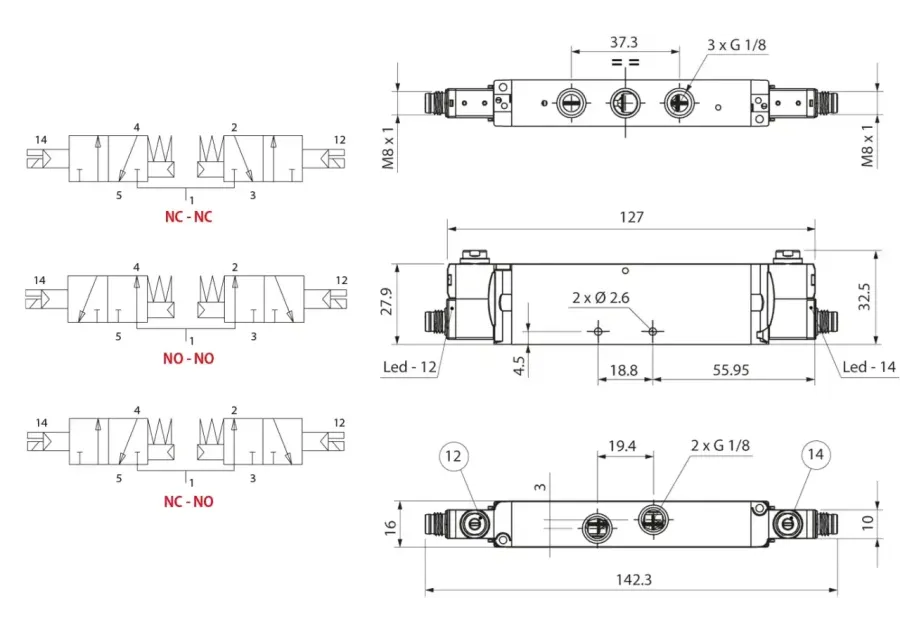

| 14V S0 8 NC 02 | Request access | 5/4 | DOUBLE 3/2 MONOSTABLE MECHANICAL SPRING RETURN | 553 Nl/min | NC | 114 g | ||
| 14V S0 8 NO 02 | Request access | 5/4 | DOUBLE 3/2 MONOSTABLE MECHANICAL SPRING RETURN | 620 Nl/min | NO | 113 g | ||
| 14V S0 8 NN 02 | Request access | 5/4 | DOUBLE 3/2 MONOSTABLE MECHANICAL SPRING RETURN | 553 Nl/min | NC-NO | 114 g |
