05VS
SOLENOID PILOT VALVE 18 MM VDMA
| Code | 3D Drawings | Ways | Reactuation | Function | Solenoid | Bag | |
|---|---|---|---|---|---|---|---|

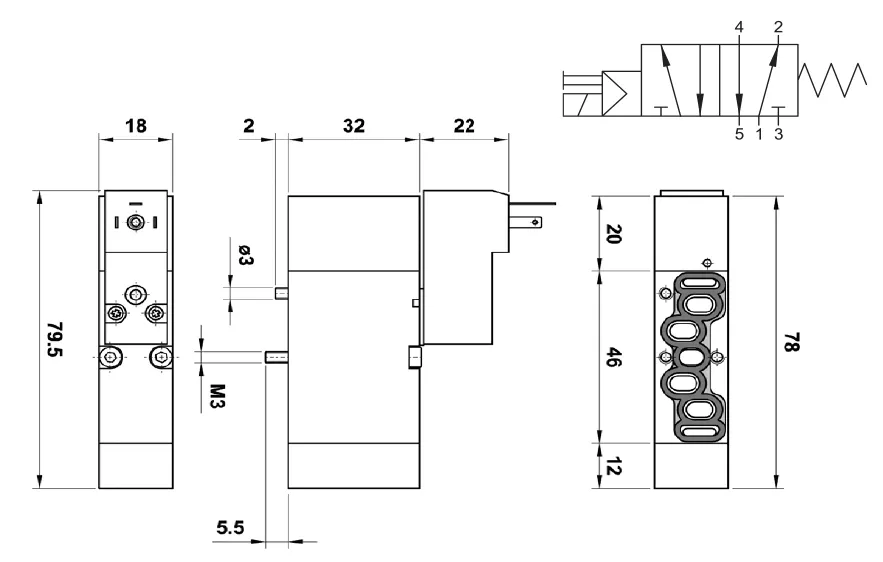

| 05V S0 5 00 00 | Request access | 5/2 | MONOSTABLE SPRING RETURN | 24V DC | 1 | ||
| 05V S0 5 00 01 | Request access | 5/2 | MONOSTABLE SPRING RETURN | 24V 50/60Hz | 1 | ||

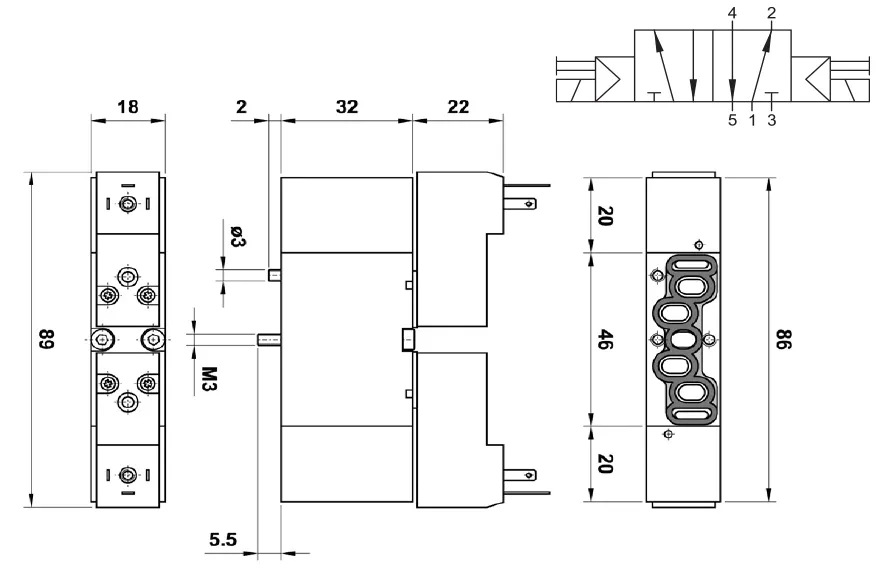

| 05V S1 5 00 00 | Request access | 5/2 | TWO STABLE POSITIONS | 24V DC | 1 | ||
| 05V S1 5 00 01 | Request access | 5/2 | TWO STABLE POSITIONS | 24V 50/60Hz | 1 | ||

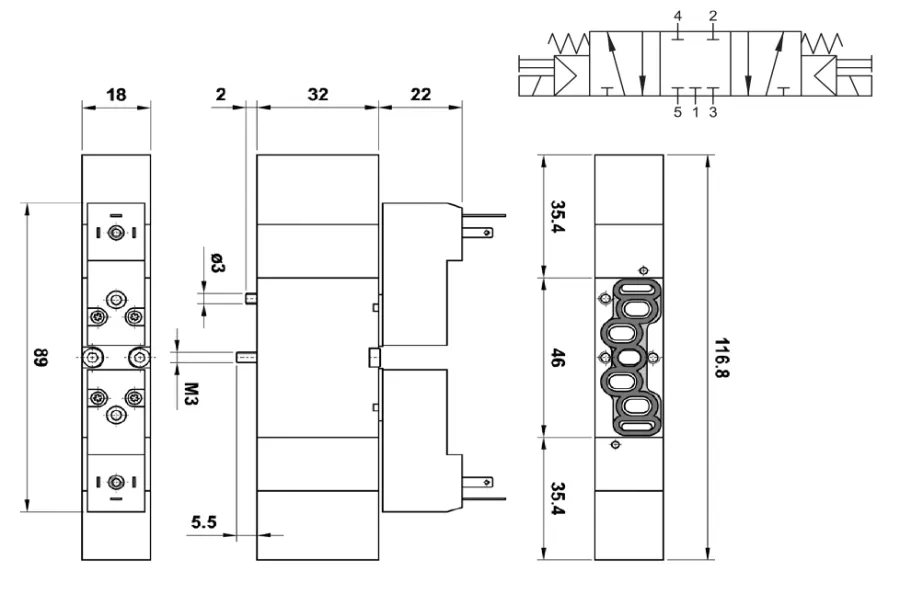

| 05V S0 7 CC 00 | Request access | 5/3 | MONOSTABLE SPRING RETURN | CC | 24V DC | 1 | |

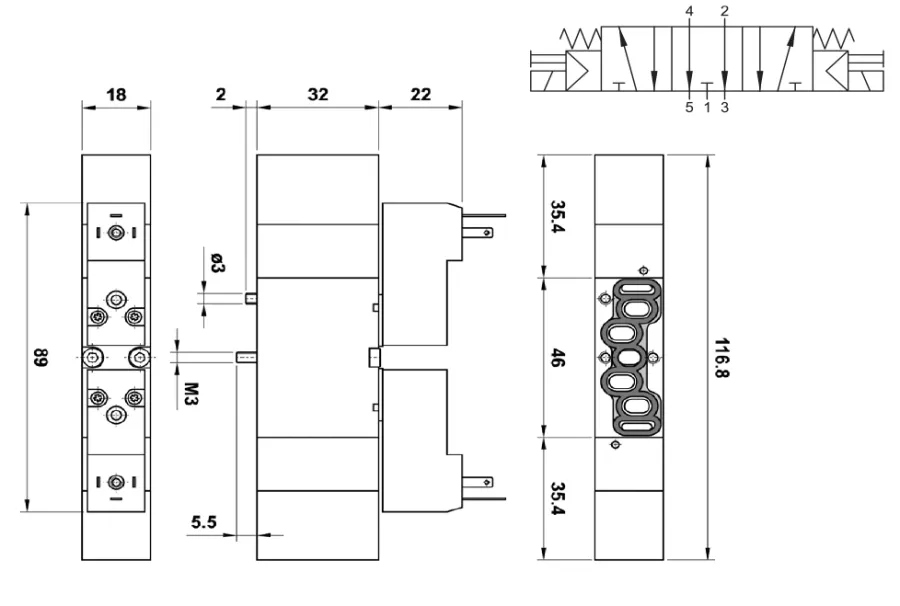

| 05V S0 7 OC 00 | Request access | 5/3 | MONOSTABLE SPRING RETURN | OC | 24V DC | 1 | |
| 05V S0 7 CC 01 | Request access | 5/3 | MONOSTABLE SPRING RETURN | CC | 24V 50/60Hz | 1 | |
| 05V S0 7 OC 01 | Request access | 5/3 | MONOSTABLE SPRING RETURN | OC | 24V 50/60Hz | 1 |
