| Code | 3D Drawings | Ext. mm | Int. mm | Color | Bending radius | Working pressure | Burst pressure | Linear Lenght Mt. | Temperature Range | Bag | |
|---|---|---|---|---|---|---|---|---|---|---|---|

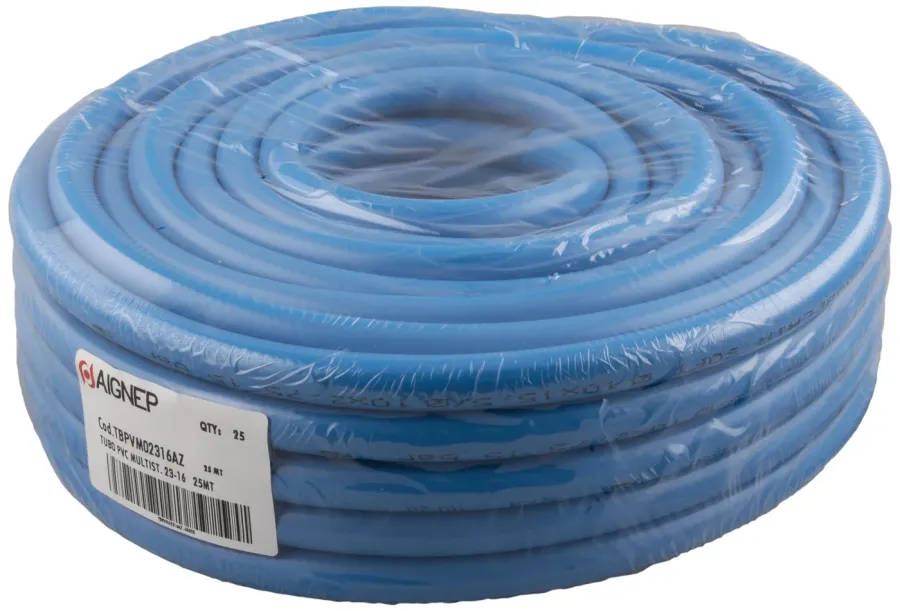

| TBPVM 011 06 AZ | Request access | 11 | 6,3 | Light Blue | 32 | 15 bar | 60 bar | 25 | From -40 °C To +60 °C | 1 | |
| TBPVM 013 08 AZ | Request access | 13 | 8 | Light Blue | 41 | 15 bar | 60 bar | 25 | From -40 °C To +60 °C | 1 | |
| TBPVM 145 09 AZ | Request access | 14,5 | 9 | Light Blue | 60 | 15 bar | 60 bar | 25 | From -40 °C To +60 °C | 1 | |
| TBPVM 155 10 AZ | Request access | 15,5 | 10 | Light Blue | 80 | 15 bar | 60 bar | 25 | From -40 °C To +60 °C | 1 | |
| TBPVM 191 27 AZ | Request access | 19 | 12,7 | Light Blue | 41 | 15 bar | 60 bar | 25 | From -40 °C To +60 °C | 1 | |
| TBPVM 023 16 AZ | Request access | 23 | 16 | Light Blue | 60 | 15 bar | 60 bar | 25 | From -40 °C To +60 °C | 1 |
