Filter
SS12

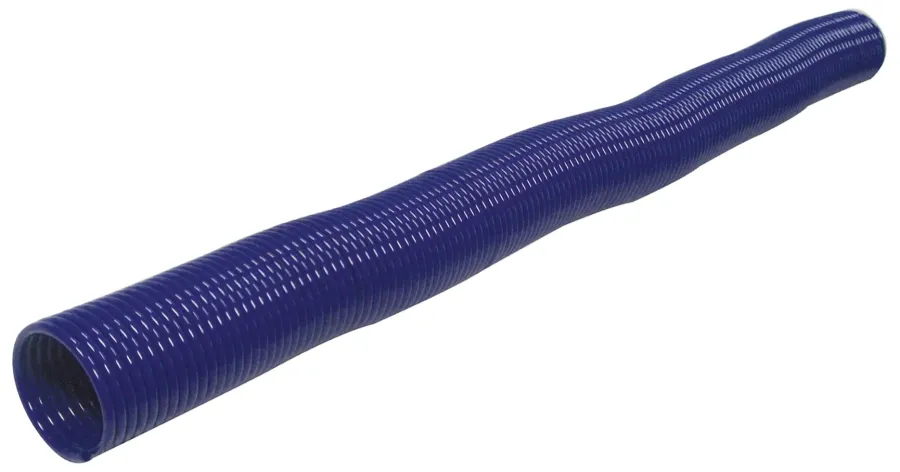

POLYAMIDE RECOIL TUBING WITHOUT TAIL
| Code | 3D Drawings | Ext. mm | Int. mm | Ø Ext. Mm | Color | Linear Lenght Mt. | Working Pressure (at 20°C) | Burst Pressure (at 20°C) | Temperature Range | Tolerance | Bag | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SS12 0064 030 BL | Request access | 6 | 4 | 63 | Blue | 30 | 27 bar | 81 bar | From -40 °C to +70 °C | ± 10 mm | 1 | |
| SS12 0086 030 BL | Request access | 8 | 6 | 87 | Blue | 30 | 20 bar | 60 bar | From -40 °C to +70 °C | ± 10 mm | 1 | |
| SS12 0108 030 BL | Request access | 10 | 8 | 106 | Blue | 30 | 15 bar | 45 bar | From -40 °C to +70 °C | ± 12 mm | 1 | |
| SS12 0121 030 BL | Request access | 12 | 10 | 135 | Blue | 30 | 13 bar | 39 bar | From -40 °C to +70 °C | ± 15 mm | 1 |
