TSPO

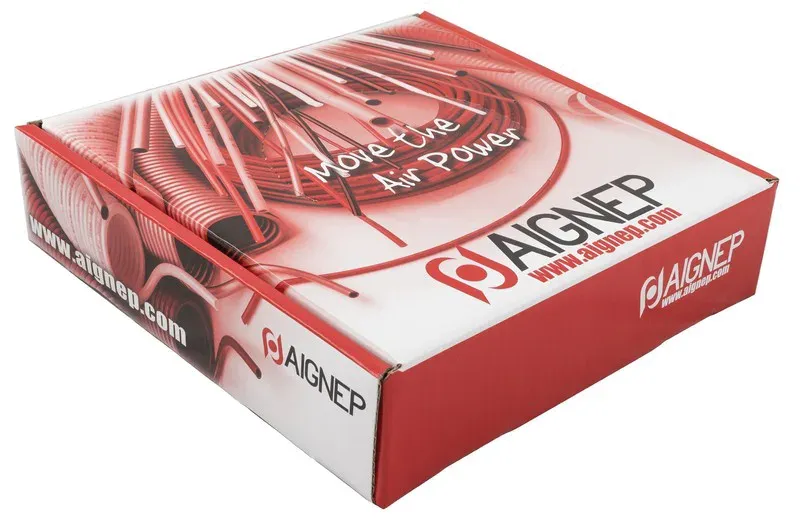

90 SHORE A POLYURETHANE POLYETHER TUBE - LENGHT 25 Mt
|
Code |
3D Drawings |
Ext. mm |
Int. mm |
Color |
Bending Radius |
Working Pressure (at 20 °C) |
Burst Pressure (at 20 °C) |
Temperature Range |
Tolerance |
Bag |
|
TSPO 00 425 NT
|
-
Request access
|
4 |
2,5 |
Neutral |
20 mm |
12 bar |
37 bar |
From -40 °C to +60 °C |
± 0,07 mm |
1 |
|
TSPO 00 425 AZ
|
-
Request access
|
4 |
2,5 |
Light Blue |
20 mm |
12 bar |
37 bar |
From -40 °C to +60 °C |
± 0,07 mm |
1 |
|
TSPO 00 425 NE
|
-
Request access
|
4 |
2,5 |
Black |
20 mm |
12 bar |
37 bar |
From -40 °C to +60 °C |
± 0,07 mm |
1 |
|
TSPO 00 425 GI
|
-
Request access
|
4 |
2,5 |
Yellow |
20 mm |
12 bar |
37 bar |
From -40 °C to +60 °C |
± 0,07 mm |
1 |
|
TSPO 00 425 GR
|
-
Request access
|
4 |
2,5 |
Grey |
20 mm |
12 bar |
37 bar |
From -40 °C to +60 °C |
± 0,07 mm |
1 |
|
TSPO 00 425 RO
|
-
Request access
|
4 |
2,5 |
Red |
20 mm |
12 bar |
37 bar |
From -40 °C to +60 °C |
± 0,07 mm |
1 |
|
TSPO 00 425 VE
|
-
Request access
|
4 |
2,5 |
Green |
20 mm |
12 bar |
37 bar |
From -40 °C to +60 °C |
± 0,07 mm |
1 |
|
TSPO 00 640 NT
|
-
Request access
|
6 |
4 |
Neutral |
30 mm |
11 bar |
32 bar |
From -40 °C to +60 °C |
± 0,07 mm |
1 |
|
TSPO 00 640 AZ
|
-
Request access
|
6 |
4 |
Light Blue |
30 mm |
11 bar |
32 bar |
From -40 °C to +60 °C |
± 0,07 mm |
1 |
|
TSPO 00 640 NE
|
-
Request access
|
6 |
4 |
Black |
30 mm |
11 bar |
32 bar |
From -40 °C to +60 °C |
± 0,07 mm |
1 |
|
TSPO 00 640 GI
|
-
Request access
|
6 |
4 |
Yellow |
30 mm |
11 bar |
32 bar |
From -40 °C to +60 °C |
± 0,07 mm |
1 |
|
TSPO 00 640 GR
|
-
Request access
|
6 |
4 |
Grey |
30 mm |
11 bar |
32 bar |
From -40 °C to +60 °C |
± 0,07 mm |
1 |
|
TSPO 00 640 RO
|
-
Request access
|
6 |
4 |
Red |
30 mm |
11 bar |
32 bar |
From -40 °C to +60 °C |
± 0,07 mm |
1 |
|
TSPO 00 640 VE
|
-
Request access
|
6 |
4 |
Green |
30 mm |
11 bar |
32 bar |
From -40 °C to +60 °C |
± 0,07 mm |
1 |
|
TSPO 00 855 NT
|
-
Request access
|
8 |
5,5 |
Neutral |
45 mm |
10 bar |
30 bar |
From -40 °C to +60 °C |
± 0,07 mm |
1 |
|
TSPO 00 855 AZ
|
-
Request access
|
8 |
5,5 |
Light Blue |
45 mm |
10 bar |
30 bar |
From -40 °C to +60 °C |
± 0,07 mm |
1 |
|
TSPO 00 855 NE
|
-
Request access
|
8 |
5,5 |
Black |
45 mm |
10 bar |
30 bar |
From -40 °C to +60 °C |
± 0,07 mm |
1 |
|
TSPO 00 855 GI
|
-
Request access
|
8 |
5,5 |
Yellow |
45 mm |
10 bar |
30 bar |
From -40 °C to +60 °C |
± 0,07 mm |
1 |
|
TSPO 00 855 GR
|
-
Request access
|
8 |
5,5 |
Grey |
45 mm |
10 bar |
30 bar |
From -40 °C to +60 °C |
± 0,07 mm |
1 |
|
TSPO 00 855 RO
|
-
Request access
|
8 |
5,5 |
Red |
45 mm |
10 bar |
30 bar |
From -40 °C to +60 °C |
± 0,07 mm |
1 |
|
TSPO 00 855 VE
|
-
Request access
|
8 |
5,5 |
Green |
45 mm |
10 bar |
30 bar |
From -40 °C to +60 °C |
± 0,07 mm |
1 |
|
TSPO 01 070 NT
|
-
Request access
|
10 |
7 |
Neutral |
35 mm |
9 bar |
28 bar |
From -40 °C to +60 °C |
± 0,07 mm |
1 |
|
TSPO 01 070 AZ
|
-
Request access
|
10 |
7 |
Light Blue |
35 mm |
9 bar |
28 bar |
From -40 °C to +60 °C |
± 0,07 mm |
1 |
|
TSPO 01 070 NE
|
-
Request access
|
10 |
7 |
Black |
35 mm |
9 bar |
28 bar |
From -40 °C to +60 °C |
± 0,07 mm |
1 |
|
TSPO 01 070 GR
|
-
Request access
|
10 |
7 |
Yellow |
35 mm |
9 bar |
28 bar |
From -40 °C to +60 °C |
± 0,07 mm |
1 |
|
TSPO 01 070 RO
|
-
Request access
|
10 |
7 |
Red |
35 mm |
9 bar |
28 bar |
From -40 °C to +60 °C |
± 0,07 mm |
1 |
|
TSPO 01 280 NT
|
-
Request access
|
12 |
8 |
Neutral |
30 mm |
11 bar |
32 bar |
From -40 °C to +60 °C |
± 0,07 mm |
1 |
|
TSPO 01 280 AZ
|
-
Request access
|
12 |
8 |
Light Blue |
30 mm |
11 bar |
32 bar |
From -40 °C to +60 °C |
± 0,07 mm |
1 |
|
TSPO 01 280 NE
|
-
Request access
|
12 |
8 |
Black |
30 mm |
11 bar |
32 bar |
From -40 °C to +60 °C |
± 0,07 mm |
1 |
|
TSPO 01 280 GR
|
-
Request access
|
12 |
8 |
Grey |
30 mm |
11 bar |
32 bar |
From -40 °C to +60 °C |
± 0,07 mm |
1 |
|
TSPO 01 280 RO
|
-
Request access
|
12 |
8 |
Red |
30 mm |
11 bar |
32 bar |
From -40 °C to +60 °C |
± 0,07 mm |
1 |
|
TSPO 14 100 NT
|
-
Request access
|
14 |
10 |
Neutral |
120 mm |
9 bar |
27 bar |
From -40 °C to +60 °C |
± 0,07 mm |
1 |
|
TSPO 14 100 AZ
|
-
Request access
|
14 |
10 |
Light Blue |
120 mm |
9 bar |
27 bar |
From -40 °C to +60 °C |
± 0,07 mm |
1 |
|
TSPO 14 100 NE
|
-
Request access
|
14 |
10 |
Black |
120 mm |
9 bar |
27 bar |
From -40 °C to +60 °C |
± 0,07 mm |
1 |
|
TSPO 14 100 GI
|
-
Request access
|
14 |
10 |
Yellow |
120 mm |
9 bar |
27 bar |
From -40 °C to +60 °C |
± 0,07 mm |
1 |
|
TSPO 14 100 RO
|
-
Request access
|
14 |
10 |
Red |
120 mm |
9 bar |
27 bar |
From -40 °C to +60 °C |
± 0,07 mm |
1 |
