85000

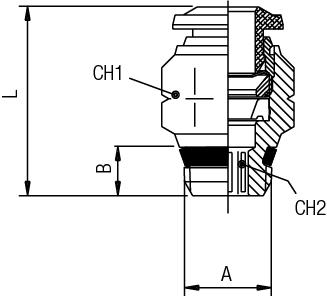

STRAIGHT MALE ADAPTOR “UNIVERSAL SHORT”
| Code | 3D Drawings | Tube | A | B | L | CH1 | CH2 | Bag | |
|---|---|---|---|---|---|---|---|---|---|
| 85000 00 001 | Request access | 1/8 | 1/8 | 5,5 | 16,5 | 11 | 2 | 10 | |
| 85000 00 002 | Request access | 1/8 | 1/4 | 7 | 18,5 | 14 | 2 | 10 | |
| 85000 00 003 | Request access | 5/32 | 1/8 | 5,5 | 18 | 11 | 3 | 10 | |
| 85000 00 004 | Request access | 5/32 | 1/4 | 7 | 19 | 14 | 3 | 10 | |
| 85000 00 005 | Request access | 1/4 | 1/8 | 5,5 | 21,5 | 13 | 4 | 10 | |
| 85000 00 006 | Request access | 1/4 | 1/4 | 7 | 21 | 14 | 4 | 10 | |
| 85000 00 007 | Request access | 1/4 | 3/8 | 7,5 | 23 | 17 | 4 | 10 | |
| 85000 00 008 | Request access | 5/16 | 1/8 | 5,5 | 24,5 | 14 | 5 | 10 | |
| 85000 00 009 | Request access | 5/16 | 1/4 | 7 | 22 | 14 | 6 | 10 | |
| 85000 00 010 | Request access | 5/16 | 3/8 | 7,5 | 23 | 17 | 6 | 10 | |
| 85000 00 011 | Request access | 3/8 | 1/8 | 5,5 | 28,5 | 17 | 5 | 10 | |
| 85000 00 012 | Request access | 3/8 | 1/4 | 7 | 28,5 | 17 | 6 | 10 | |
| 85000 00 013 | Request access | 3/8 | 3/8 | 7,5 | 26,5 | 17 | 6 | 10 | |
| 85000 00 014 | Request access | 3/8 | 1/2 | 9 | 26,5 | 21 | 6 | 10 | |
| 85000 00 018 | Request access | 1/2 | 1/8 | 5,5 | 33 | 20 | 5 | 10 | |
| 85000 00 015 | Request access | 1/2 | 1/4 | 7 | 33 | 20 | 5 | 10 | |
| 85000 00 016 | Request access | 1/2 | 3/8 | 7,5 | 32 | 20 | 9 | 10 | |
| 85000 00 017 | Request access | 1/2 | 1/2 | 9 | 32 | 21 | 10 | 10 |
