59216

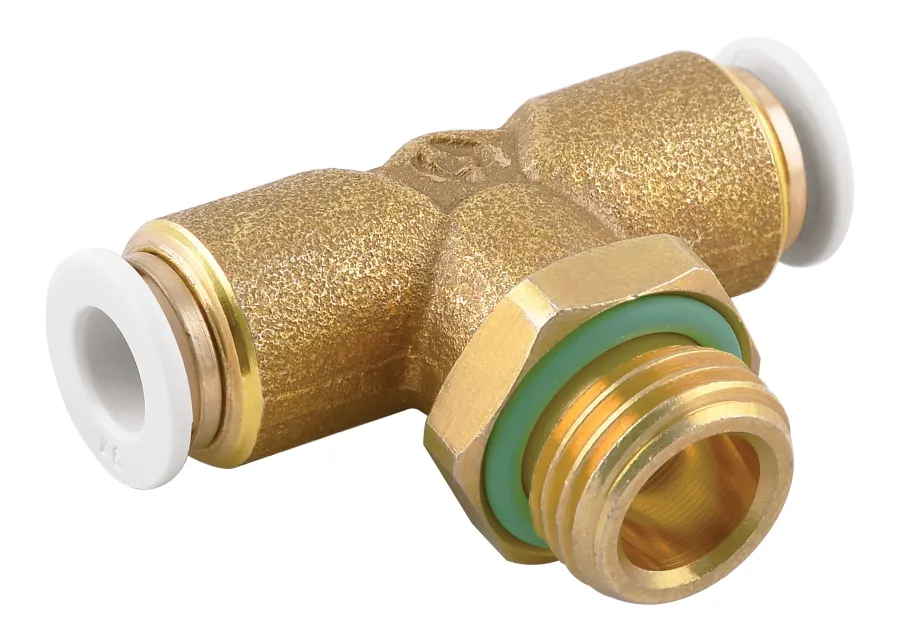

ORIENTING TEE MALE ADAPTOR (PARALLEL) - CENTRE LEG

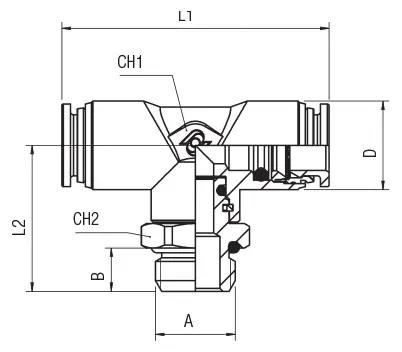

| Code | 3D Drawings | Tube | A | B | L1 | L2 | CH1 | CH2 | D | Bag | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 59216 00 003 | Request access | 4 | 1/8 | 5.4 | 32.5 | 18.5 | 9 | 13 | 10 | 50 | |
| 59216 00 008 | Request access | 6 | 1/8 | 5.4 | 40.5 | 21.5 | 11 | 13 | 12,5 | 50 | |
| 59216 00 009 | Request access | 6 | 1/4 | 7.1 | 40.5 | 21.5 | 11 | 16 | 12,5 | 50 | |
| 59216 00 011 | Request access | 8 | 1/4 | 7.1 | 44 | 24 | 13 | 16 | 14,5 | 50 | |
| 59216 00 012 | Request access | 8 | 3/8 | 8.1 | 44 | 26 | 13 | 20 | 14,5 | 50 |
