59116

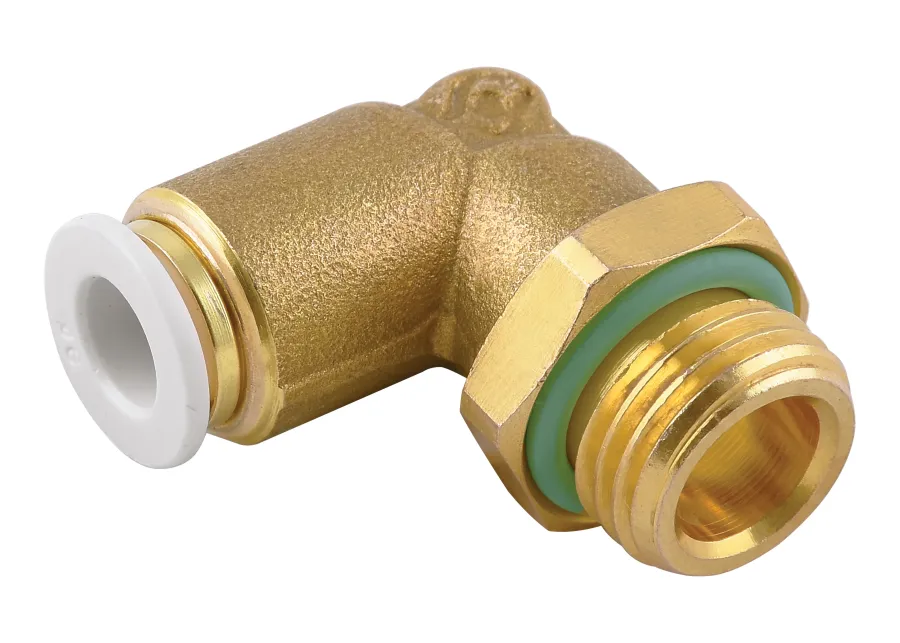

ORIENTING ELBOW MALE ADAPTOR (PARALLEL)

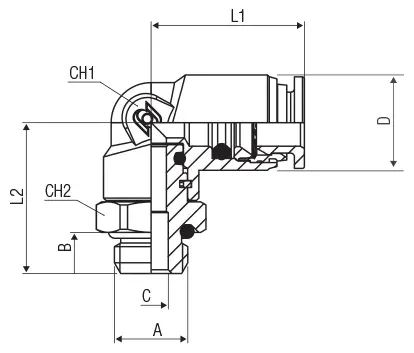

| Code | 3D Drawings | Tube | A | B | C | L1 | L2 | CH1 | CH2 | D | Bag | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 59116 00 003 | Request access | 4 | 1/8 | 5.4 | 4.5 | 17 | 18 | 9 | 13 | 10 | 50 | |
| 59116 00 008 | Request access | 6 | 1/8 | 5.4 | 4.5 | 20.5 | 20 | 11 | 13 | 12.5 | 50 | |
| 59116 00 009 | Request access | 6 | 1/4 | 7.1 | 4 | 20.5 | 21.5 | 11 | 16 | 12.5 | 50 | |
| 59116 00 026 | Request access | 6 | 3/8 | 8.1 | 4 | 20.5 | 30 | 11 | 20 | 12.5 | 50 | |
| 59116 00 010 | Request access | 8 | 1/8 | 5.4 | 5.5 | 22 | 22.5 | 12 | 13 | 14.5 | 50 | |
| 59116 00 011 | Request access | 8 | 1/4 | 7.1 | 6 | 22.5 | 23 | 12 | 16 | 12.5 | 50 | |
| 59116 00 012 | Request access | 8 | 3/8 | 8.1 | 6 | 22.5 | 25 | 12 | 20 | 12.5 | 50 |
