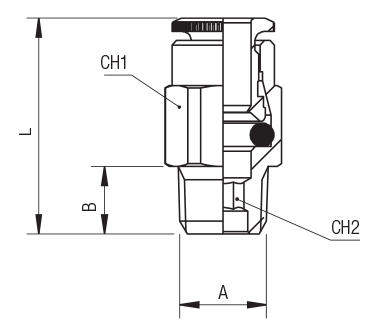

STRAIGHT MALE ADAPTOR (TAPER)

Code	3D Drawings	Tube	A	B	L	CH1	CH2	Bag
58000 00 010	Request access	4	M6x0.75	6	22	10	2.5	10
58000 00 001	Request access	4	M6x1	6	22	10	2.5	10
58000 00 002	Request access	4	M8x1	6	20	10	3	10
58000 00 013	Request access	4	M8x1.25	7	23	10	3	10
58000 00 003	Request access	4	M10x1	6.5	20	10	3	10
58000 00 015	Request access	4	M10x1.5	7.5	22.5	10	3	10
58000 00 004	Request access	4	1/8	7.5	21	10	3	10
58000 00 012	Request access	4	1/4	11	26	14	3	10
58000 00 011	Request access	6	M6x0.75	6	24.5	12	2.5	10
58000 00 005	Request access	6	M6x1	6	24.5	12	2.5	10
58000 00 006	Request access	6	M8x1	6	24.5	12	3	10
58000 00 016	Request access	6	M8x1.25	7	26	12	3	10
58000 00 007	Request access	6	M10x1	6.5	21.5	12	3	10
58000 00 017	Request access	6	M10x1.5	7.5	25	12	4	10
58000 00 008	Request access	6	1/8	7.5	23	12	3	10
58000 00 009	Request access	6	1/4	11	26.5	14	4	10
