57326

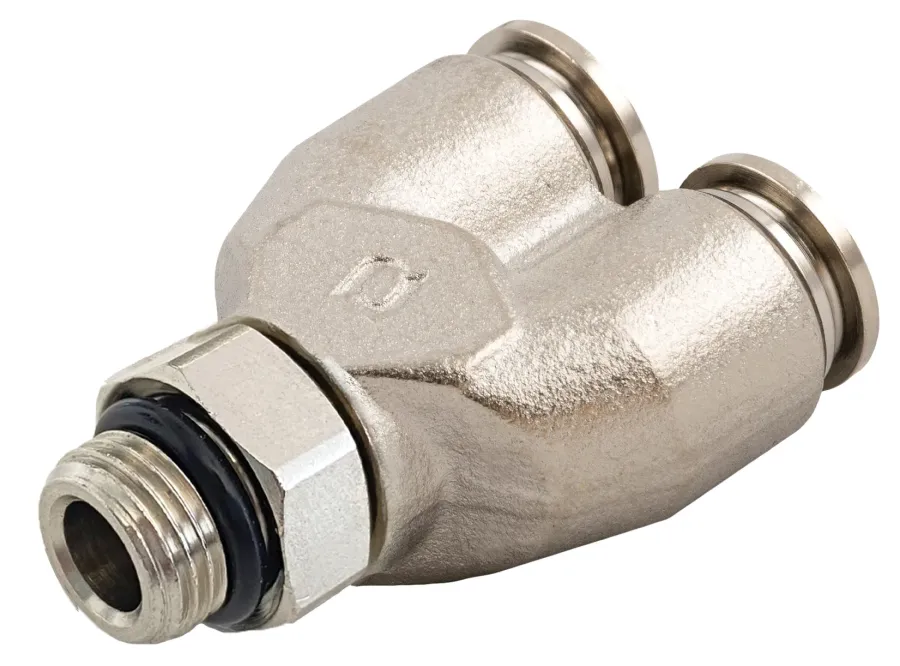

Y CONNECTOR MALE ADAPTOR (PARALLEL)

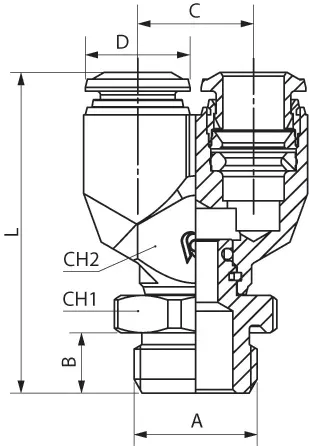

| Code | 3D Drawings | Tube | A | B | C | L | CH1 | CH2 | D | Bag | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 57326 00 003 | Request access | 4 | 1/8 | 5.4 | 11 | 32.5 | 13 | 11 | 10 | 10 | |
| 57326 00 008 | Request access | 6 | 1/8 | 5.4 | 13,5 | 37 | 13 | 13 | 12.5 | 10 | |
| 57326 00 009 | Request access | 6 | 1/4 | 7.1 | 13,5 | 38.5 | 16 | 13 | 12.5 | 10 | |
| 57326 00 010 | Request access | 8 | 1/8 | 5.4 | 15,5 | 40.5 | 13 | 15 | 14 | 10 | |
| 57326 00 011 | Request access | 8 | 1/4 | 7.1 | 15,5 | 41 | 16 | 15 | 14 | 10 | |
| 57326 00 012 | Request access | 8 | 3/8 | 8.1 | 15,5 | 43 | 20 | 15 | 14 | 10 |
