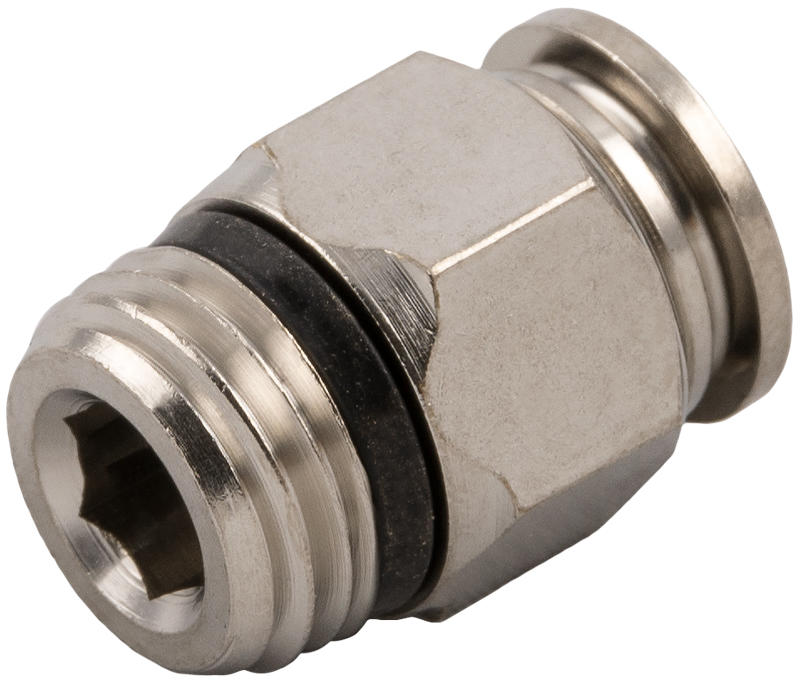

STRAIGHT MALE ADAPTOR “UNIVERSAL SHORT”

Filter

57000

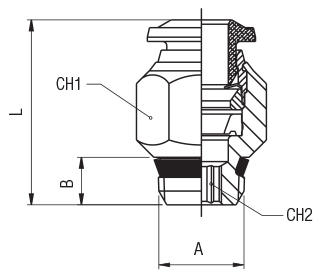

Code	3D Drawings	Tube	A	B	L	CH1	CH2	Bag
89000 00 003	Request access	4 (5/32)	1/8	5,5	18	11	3	10
89000 00 004	Request access	4 (5/32)	1/4	7	19	14	3	10
57000 00 011	Request access	5	1/8	5,5	20	11	4	10
57000 00 002	Request access	6	1/8	5,5	21,5	13	4	10
57000 00 003	Request access	6	1/4	7	21	14	4	10
57000 00 014	Request access	6	3/8	7,5	23	17	4	10
57000 00 015	Request access	6	1/2	9	23,5	21	4	10
89000 00 008	Request access	8 (5/16)	1/8	5,5	24,5	14	5	10
89000 00 009	Request access	8 (5/16)	1/4	7	22	14	6	10
89000 00 010	Request access	8 (5/16)	3/8	7,5	23	17	6	10
89000 00 022	Request access	8 (5/16)	1/2	9	23,5	21	6	10
57000 00 007	Request access	10	1/4	7	28	17	7	10
57000 00 008	Request access	10	3/8	7,5	25,5	17	8	10
57000 00 017	Request access	10	1/2	9	26	21	8	10
57000 00 009	Request access	12	1/4	7	31,5	20	7	10
57000 00 010	Request access	12	3/8	7,5	29,5	20	9	10
57000 00 018	Request access	12	1/2	9	31,5	21	10	10
57000 00 019	Request access	14	3/8	7,5	32,5	21	9	10
57000 00 020	Request access	14	1/2	9	31,5	21	10	10
57000 00 021	Request access	16	3/8	7,5	35,5	23	10	10
57000 00 022	Request access	16	1/2	9	36,5	25	12	10
