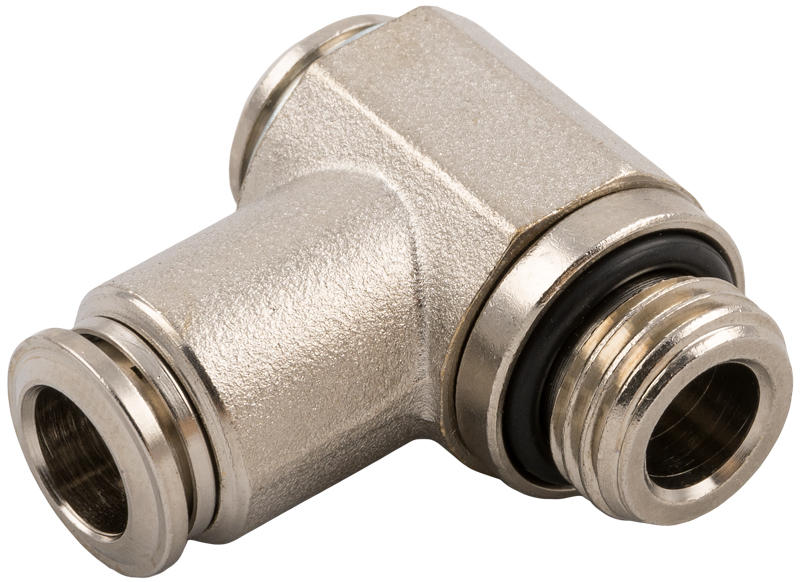

ORIENTING SINGLE BANJO BODY MALE

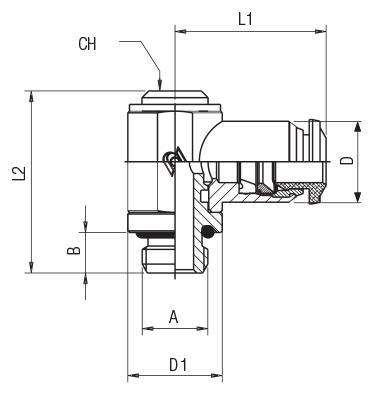

Code	3D Drawings	Tube	A	B	L1	L2	CH1	D1	D	Bag
57550 00 001	Request access	4	M5	3.6	19	24.5	-	CH8	10	10
57550 00 002	Request access	4	1/8	5.4	21	28	5	14	10	10
57550 00 012	Request access	5	M5	3.6	20	24.5	-	CH8	12.5	10
57550 00 013	Request access	5	1/8	5.4	21,5	28	5	14	12,5	10
57550 00 014	Request access	5	1/4	7.1	24,5	31	6	17	12,5	10
57550 00 015	Request access	6	M5	3.6	20,5	24,5	-	CH8	12,5	10
57550 00 003	Request access	6	1/8	5.4	22,5	28	5	14	12,5	10
57550 00 004	Request access	6	1/4	7.1	25	31	6	17	12,5	10
57550 00 005	Request access	8	1/8	5.4	24	28	5	14	14	10
57550 00 006	Request access	8	1/4	7.1	26	31	6	17	14	10
57550 00 007	Request access	8	3/8	8.1	28	35,5	7	20	14	10
57550 00 008	Request access	10	1/4	7.1	29	31	6	17	17	10
57550 00 009	Request access	10	3/8	8.1	30,5	35,5	7	20	17	10
57550 00 011	Request access	12	3/8	8.1	32,5	35,5	7	20	21,5	10
