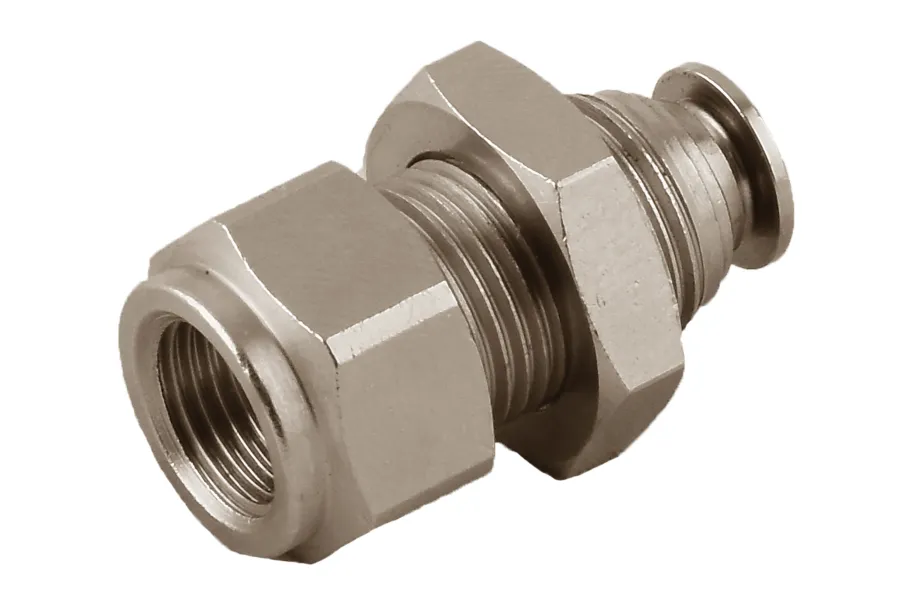

FEMALE BULKHEAD CONNECTOR

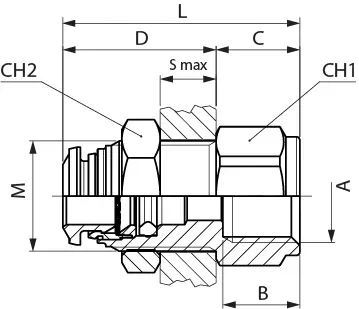

Code	3D Drawings	Tube	A	B	M	S Max	CH1	CH2	C	D	L	Bag
57055 00 001	Request access	4	1/8	8,5	M12X1	7	15	17	10	19	29	10
57055 00 002	Request access	6	1/8	8,5	M14X1	8	16	17	10	21	31	10
57055 00 003	Request access	6	1/4	11	M14X1	8	16	17	12	21	33	10
57055 00 004	Request access	8	1/8	8,5	M16X1	8	18	19	10	22	32	10
57055 00 005	Request access	8	1/4	11	M16X1	8	18	19	12	22	34	10
57055 00 006	Request access	10	3/8	12	M20X1	9,5	24	24	14	25,5	39,5	10
57055 00 007	Request access	12	3/8	12	M22X1	10,5	24	26	15	27,5	42,5	10
57055 00 008	Request access	12	1/2	15	M22X1	10,5	24	26	17	27,5	44,5	10
