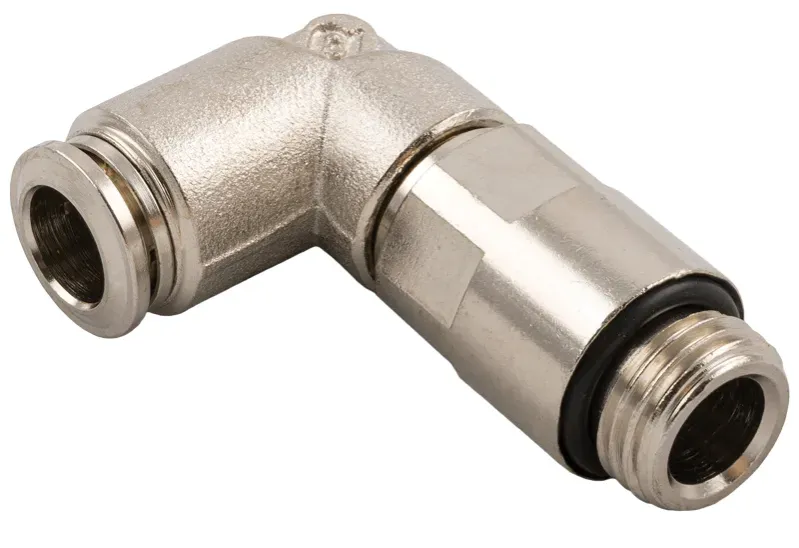

EXTENDED ORIENTING ELBOW MALE ADAPTOR (PARALLEL)

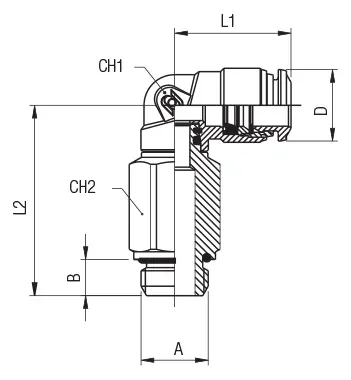

Code	3D Drawings	Tube	A	B	L1	L2	CH1	CH2	D	Bag
57126 00 001	Request access	4	1/8	5.4	18	30	9	12	10	10
57126 00 002	Request access	4	1/4	7.1	18	32	9	15	10	10
57126 00 003	Request access	5	1/8	5.4	20	34.5	11	12	12.5	10
57126 00 004	Request access	6	1/8	5.4	21	34,5	11	12	12,5	10
57126 00 005	Request access	6	1/4	7.1	21	36	11	15	12,5	10
57126 00 006	Request access	8	1/8	5.4	22,8	37,5	12	12	14,5	10
57126 00 007	Request access	8	1/4	7.1	22,5	38	12	15	14,5	10
57126 00 008	Request access	8	3/8	8.1	22,5	40	12	18	14,5	10
57126 00 009	Request access	10	1/4	7.1	26,5	45	14	16	17,5	10
57126 00 010	Request access	10	3/8	8.1	26,5	44,5	14	18	17,5	10
