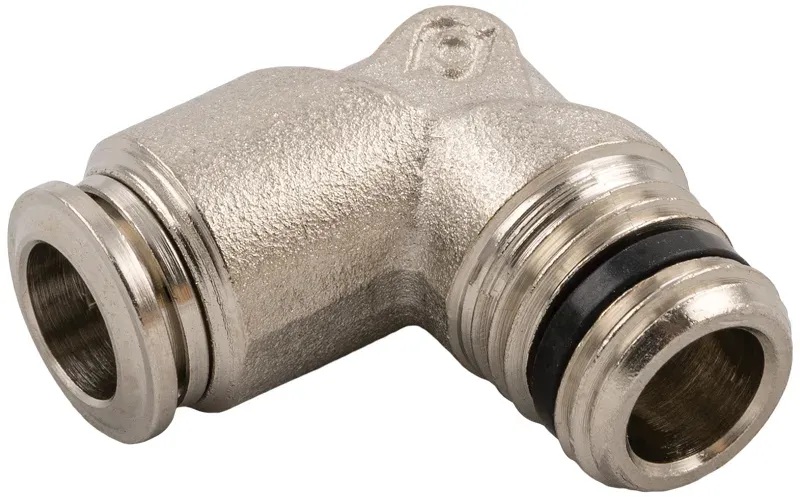

ELBOW MALE ADAPTOR (TAPER)

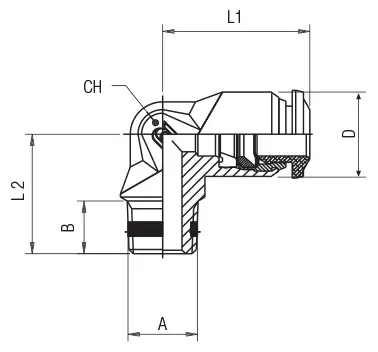

Code	3D Drawings	Tube	A	B	L1	L2	CH	D	Bag
57100 00 001	Request access	4	M5	5	17	15	9	10	10
57100 00 002	Request access	4	1/8	7,5	17	15.5	9	10	10
57100 00 010	Request access	5	M5	5	20	17	11	12.5	10
57100 00 011	Request access	5	1/8	7,5	20	17,5	11	12.5	10
57100 00 003	Request access	6	1/8	7,5	21	17,5	11	12.5	10
57100 00 012	Request access	6	1/4	11	21	21,5	11	12.5	10
57100 00 004	Request access	8	1/8	7,5	22,5	19	13	14	10
57100 00 005	Request access	8	1/4	11	22,5	21,5	13	14	10
57100 00 006	Request access	10	1/4	11	26,5	24,5	16	17	10
57100 00 007	Request access	10	3/8	11,5	26,5	24	16	17	10
57100 00 008	Request access	12	1/4	11	30,5	28	19	21.5	10
57100 00 009	Request access	12	3/8	11,5	30,5	28	19	21.5	10
