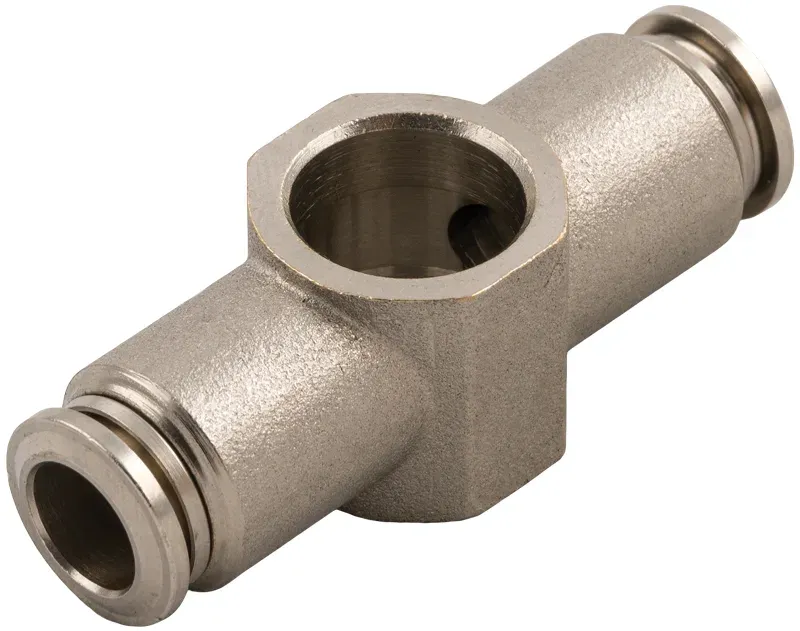

DOUBLE BANJO BODY

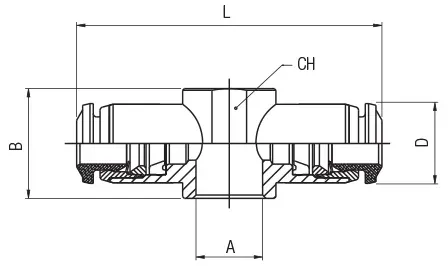

Code	3D Drawings	Tube	A	B	L	CH	D	Bag
57510 00 001	Request access	4 (5/32)	M5	12,5	38	-	10	10
57510 00 002	Request access	4 (5/32)	M6	12,5	38	-	10	10
57510 00 003	Request access	4 (5/32)	1/8	15	42	14	10	10
57510 00 008	Request access	5	1/8	15	43	14	12.5	10
57510 00 009	Request access	5	1/4	17	49	18	12.5	10
57510 00 004	Request access	6	1/8	15	44	14	12.5	10
57510 00 005	Request access	6	1/4	17	50	18	12.5	10
57510 00 006	Request access	8 (5/16)	1/8	15	48	14	14	10
57510 00 007	Request access	8 (5/16)	1/4	17	52	18	14	10
