57060

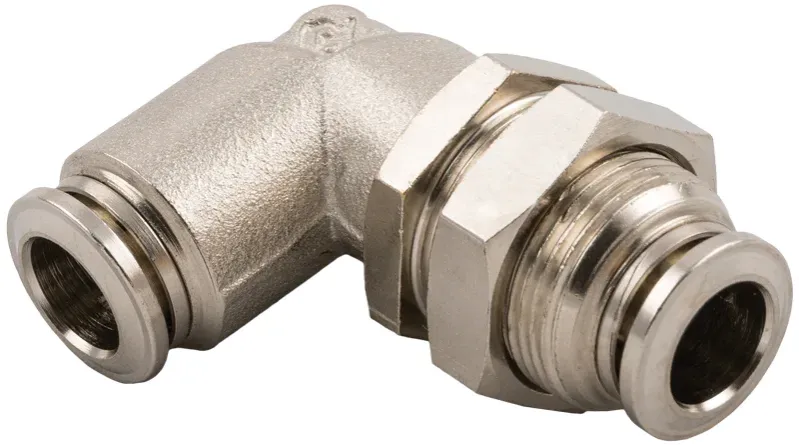

BULKHEAD ORIENTING ELBOW
|
Code |

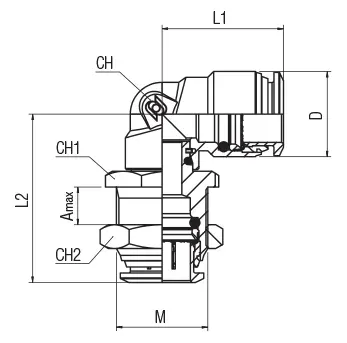

3D Drawings |
Tube |
M |
L1 |
L2 |
CH |
CH1 |
CH2 |
A Max |
D |
Bag |
|
57060 00 003
|
-
Request access
|
4 (5/32) |
M12X1 |
17,5 |
26 |
9 |
14 |
17 |
6 |
10 |
10 |
|
57060 00 004
|
-
Request access
|
6 |
M14X1 |
21,5 |
31 |
11 |
16 |
17 |
6,5 |
12,5 |
10 |
|
57060 00 005
|
-
Request access
|
8 (5/16) |
M16X1 |
22 |
34 |
12 |
18 |
19 |
6,5 |
14,5 |
10 |
|
57060 00 006
|
-
Request access
|
10 |
M20X1 |
26,5 |
36 |
14 |
22 |
24 |
7,5 |
17,5 |
10 |
|
57060 00 007
|
-
Request access
|
12 |
M22X1 |
30,5 |
43 |
16 |
24 |
26 |
9 |
21,5 |
10 |
|
57060 00 008
|
-
Request access
|
14 |
M23X1 |
30,5 |
43 |
16 |
25 |
27 |
9,5 |
21,5 |
10 |
