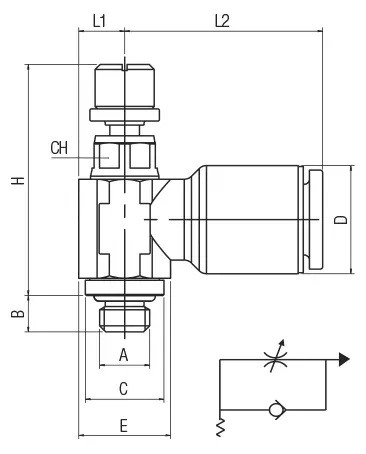

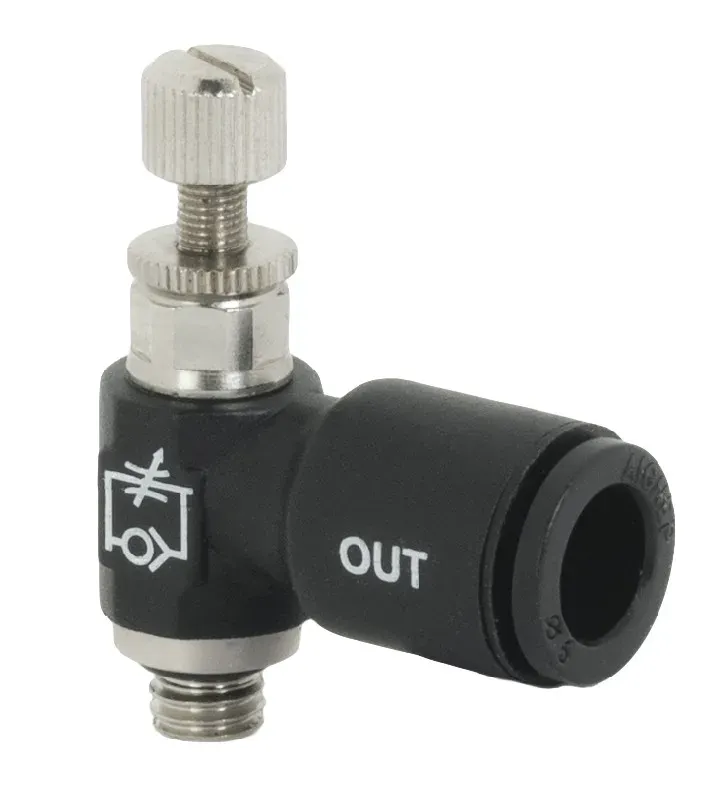

ORIENTING FLOW REGULATOR FOR CYLINDER MANUAL REGULATION - "CILINDRIC"
|
Code |
3D Drawings |
Tube |
A |
B |
H |
E |
C |
L1 |
L2 |
D |
CH |
Bag |
|
56935 00 006
|
-
Request access
|
4 |
M3 |
3 |
21,5÷24,5 |
9 |
7,5 |
4.5 |
17 |
8,5 |
6 |
10 |
|
56935 00 001
|
-
Request access
|
4 |
M5 |
3,6 |
21,5÷24,5 |
9 |
7,5 |
4.5 |
17 |
8,5 |
6 |
10 |
|
56935 00 002
|
-
Request access
|
6 |
M5 |
3,6 |
21,5÷24,5 |
9 |
7,5 |
4.5 |
19,5 |
10,5 |
6 |
10 |
|
56935 00 003
|
-
Request access
|
4 |
1/8 |
5 |
24÷27,5 |
11.5 |
13,5 |
6.5 |
17 |
8,5 |
7 |
10 |
|
56935 00 004
|
-
Request access
|
6 |
1/8 |
5 |
24÷27,5 |
11.5 |
13,5 |
6.5 |
19,5 |
10,5 |
7 |
10 |
