55116

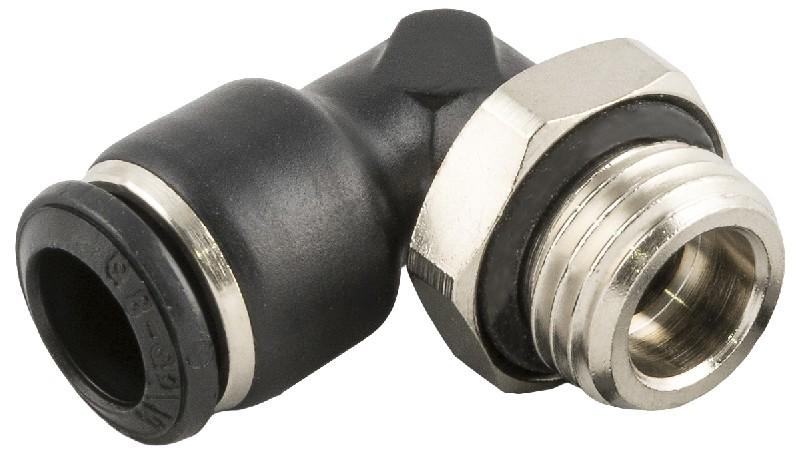

ORIENTING ELBOW MALE ADAPTOR (PARALLEL)

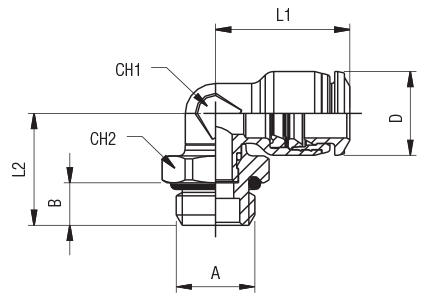

| Code | 3D Drawings | Tube | A | B | L1 | L2 | CH1 | CH2 | D | Bag | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 55116 00 001 | Request access | 4 | M3X0,5 | 3 | 16.5 | 12 | 7 | 9 | 10 | 10 | |
| 55116 00 002 | Request access | 4 | M5 | 3.6 | 16.5 | 13,8 | 7 | 9 | 10 | 10 | |
| 55116 00 003 | Request access | 4 | M7X1 | 4.8 | 16.5 | 14,4 | 7 | 9 | 10 | 10 | |
| 55116 00 004 | Request access | 4 | 1/8 | 5.4 | 16.5 | 15 | 7 | 13 | 10 | 10 | |
| 55116 00 005 | Request access | 4 | 1/4 | 7.1 | 16.5 | 16,6 | 9 | 16 | 10 | 10 | |
| 55116 00 006 | Request access | 4 | 3/8 | 8.1 | 16.5 | 18 | 7 | 20 | 10 | 10 | |
| 55116 00 007 | Request access | 5 | M5 | 3.6 | 20 | 14,7 | 9 | 9 | 12 | 10 | |
| 55116 00 009 | Request access | 5 | 1/8 | 5.4 | 20 | 15,8 | 9 | 13 | 12 | 10 | |
| 55116 00 011 | Request access | 6 | M5 | 3.6 | 20.5 | 14,7 | 9 | 9 | 12 | 10 | |
| 55116 00 029 | Request access | 6 | M7 | 5.4 | 20.5 | 15,5 | 9 | 9 | 12.5 | 10 | |
| 55116 00 030 | Request access | 6 | M10X1 | 5.4 | 20.5 | 15,5 | 9 | 13 | 12.5 | 10 | |
| 55116 00 031 | Request access | 6 | M12X1 | 7.3 | 20.5 | 18 | 9 | 16 | 12.5 | 10 | |
| 55116 00 013 | Request access | 6 | 1/8 | 5.4 | 20.5 | 15,8 | 9 | 13 | 12 | 10 | |
| 55116 00 014 | Request access | 6 | 1/4 | 7.1 | 20,5 | 17,5 | 9 | 16 | 12 | 10 | |
| 55116 00 015 | Request access | 6 | 3/8 | 8.1 | 20,5 | 19 | 9 | 20 | 12 | 10 | |
| 55116 00 016 | Request access | 6 | 1/2 | 9.6 | 20,5 | 21 | 9 | 25 | 12 | 10 | |
| 55116 00 032 | Request access | 8 | M10X1 | 5.4 | 22,5 | 19,5 | 10 | 13 | 14 | 10 | |
| 55116 00 033 | Request access | 8 | M12X1 | 7.5 | 22,5 | 19 | 10 | 16 | 14 | 10 | |
| 55116 00 017 | Request access | 8 | 1/8 | 5.4 | 22 | 19,4 | 10 | 13 | 14 | 10 | |
| 55116 00 018 | Request access | 8 | 1/4 | 7.1 | 22 | 18,7 | 10 | 16 | 14 | 10 | |
| 55116 00 019 | Request access | 8 | 3/8 | 8.1 | 22 | 20,1 | 10 | 20 | 14 | 10 | |
| 55116 00 020 | Request access | 8 | 1/2 | 9.6 | 22 | 22,1 | 10 | 25 | 14 | 10 | |
| 55116 00 034 | Request access | 10 | 1/8 | 5.4 | 26,5 | 21 | 13 | 16 | 17 | 10 | |
| 55116 00 021 | Request access | 10 | 1/4 | 7.1 | 26,5 | 22,8 | 13 | 16 | 17 | 10 | |
| 55116 00 022 | Request access | 10 | 3/8 | 8.1 | 26,5 | 22,3 | 13 | 20 | 17 | 10 | |
| 55116 00 023 | Request access | 10 | 1/2 | 9.6 | 26,5 | 23,8 | 13 | 25 | 17 | 10 | |
| 55116 00 024 | Request access | 12 | 1/4 | 7.1 | 30 | 24,1 | 16 | 16 | 20 | 10 | |
| 55116 00 025 | Request access | 12 | 3/8 | 8.1 | 30 | 23,6 | 16 | 20 | 20 | 10 | |
| 55116 00 026 | Request access | 12 | 1/2 | 9.6 | 30 | 25,1 | 16 | 25 | 20 | 10 | |
| 55116 00 027 | Request access | 14 | 3/8 | 8.1 | 31 | 28,1 | 18 | 20 | 21 | 10 | |
| 55116 00 028 | Request access | 14 | 1/2 | 9.6 | 31 | 26,1 | 18 | 25 | 21 | 10 | |
| 55116 00 035 | Request access | 16 | 3/8 | 8.1 | 32,8 | 33,8 | 20 | 22 | 24 | 10 | |
| 55116 00 036 | Request access | 16 | 1/2 | 9.6 | 32,8 | 35,8 | 20 | 25 | 24 | 10 |
