55130

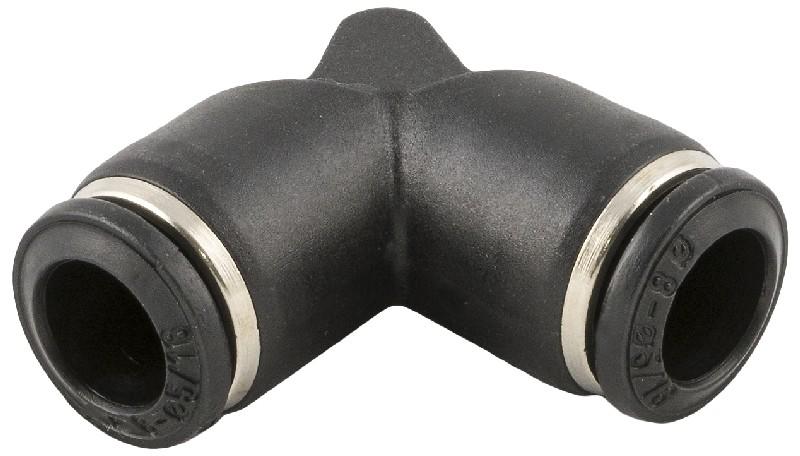

ELBOW CONNECTOR

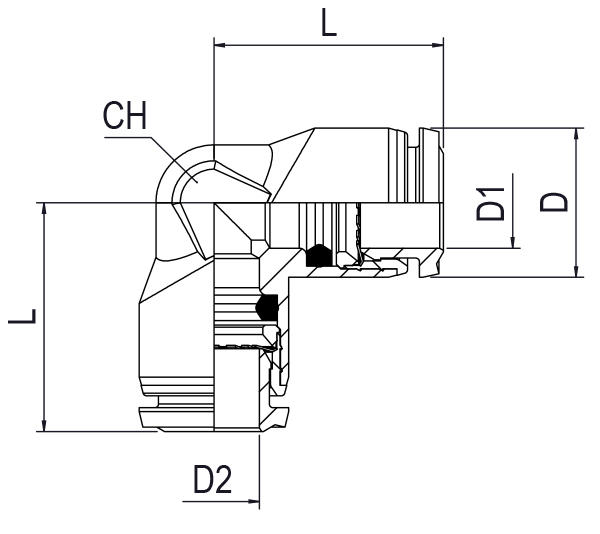

Code	3D Drawings	D1	D2	L	D	CH	Bag
55130 00 002	Request access	4	4	16,5	10	9	10
55130 00 003	Request access	5	5	20	12	11	10
55130 00 004	Request access	6	6	20,5	12	11	10
55130 00 009	Request access	8	6	22,5	14	13	10
55130 00 005	Request access	8	8	22	14	13	10
55130 00 012	Request access	10	6	26	17	16	10
55130 00 010	Request access	10	8	26	17	16	10
55130 00 006	Request access	10	10	26,5	17	16	10
55130 00 011	Request access	12	10	30,5	20	19	10
55130 00 007	Request access	12	12	30	20	19	10
55130 00 008	Request access	14	14	30,5	21	20	10
55130 00 013	Request access	16	16	32,8	24	20	10
