53117X

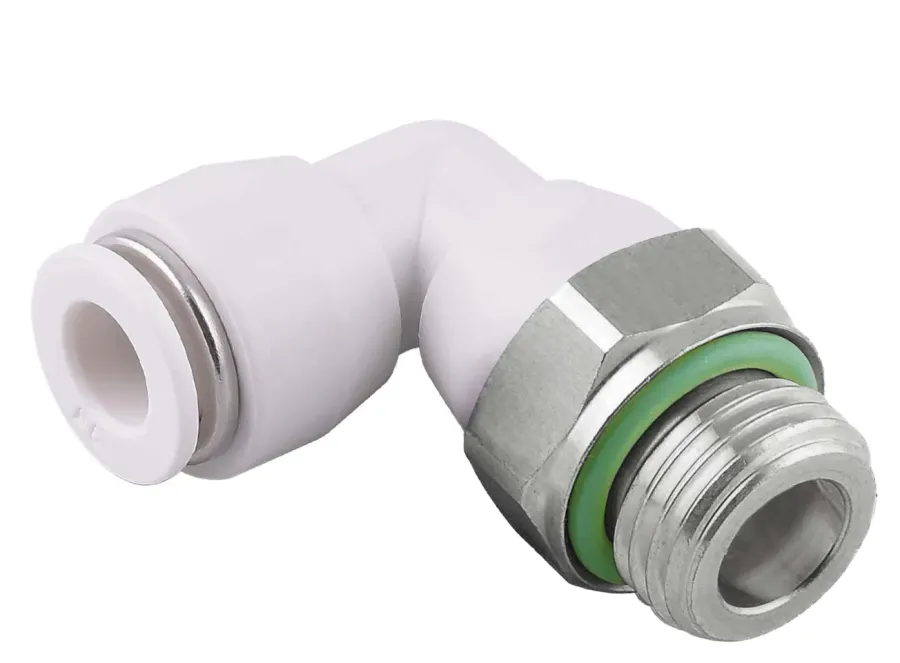

ORIENTING ELBOW MALE ADAPTOR (PARALLEL)

prodotto___rs_53000x_53117x-d

prodotto___rs_53000x_53117x-f

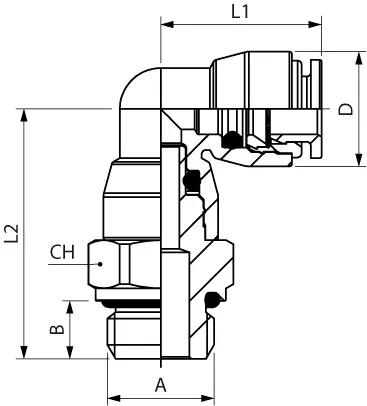

	Code	3D Drawings	Tube	A	B	L1	L2	CH	D	Bag
	53117 X0 002	Request access	4	M5	4	15,7	15	8	11,5	50
	53117 X0 004	Request access	4	1/8	6	17,2	26	13	11,5	50
	53117 X0 005	Request access	4	1/4	8	17,2	28,5	15	11,5	50
	53117 X0 011	Request access	6	M5	4	18,6	15	8	14	50
	53117 X0 013	Request access	6	1/8	6	19,6	29	13	14	50
	53117 X0 014	Request access	6	1/4	8	19,6	31	15	14	50
	53117 X0 018	Request access	8	1/4	8	21,3	33	15	16	50
	53117 X0 019	Request access	8	3/8	9	21,3	35	20	16	50
