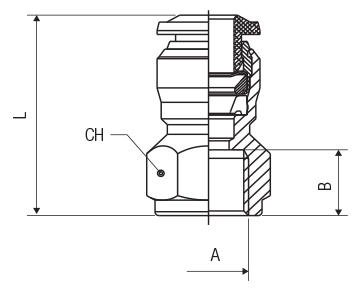

STRAIGHT FEMALE ADAPTOR

Code	3D Drawings	Tube	A	B	L	CH	Bag
50030 00 007	Request access	3	M5	5,5	18,5	9	10
50030 00 008	Request access	4	M5	5,5	21	11	10
50030 00 001	Request access	4	1/8	8,5	24	13	10
50030 00 009	Request access	4	1/4	11	27,5	16	10
50030 00 006	Request access	5	1/8	8,5	26,5	13	10
50030 00 002	Request access	6	1/8	8,5	26	13	10
50030 00 003	Request access	6	1/4	11	29,5	16	10
50030 00 004	Request access	8	1/8	8,5	27	15	10
50030 00 005	Request access	8	1/4	11	29,5	17	10
50030 00 010	Request access	8	3/8	12	32	19	10
50030 00 011	Request access	10	1/4	11	32	18	10
50030 00 012	Request access	10	3/8	12	33,5	19	10
50030 00 013	Request access	10	1/2	15	39	24	10
50030 00 014	Request access	12	3/8	12	36	21	10
50030 00 015	Request access	12	1/2	15	41	24	10
50030 00 016	Request access	16	3/8	12	40,5	24	10
50030 00 017	Request access	16	1/2	15	41,5	24	10
