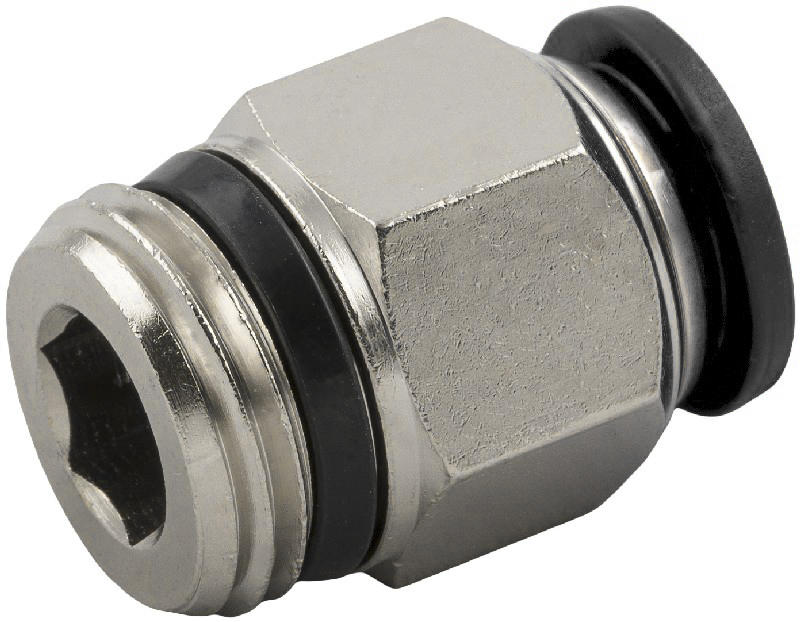

STRAIGHT MALE ADAPTOR “UNIVERSAL SHORT”

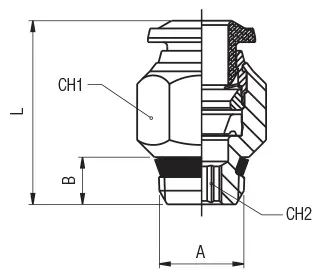

Code	3D Drawings	Tube	A	B	L	CH1	CH2	Bag
55000 00 001	Request access	4	1/8	5,5	18	11	3	10
55000 00 013	Request access	4	1/4	7	19	14	3	10
55000 00 002	Request access	5	1/8	5,5	20	11	4	10
55000 00 003	Request access	5	1/4	7	20	14	4	10
55000 00 004	Request access	6	1/8	5,5	21,5	13	4	10
55000 00 005	Request access	6	1/4	7	21	14	4	10
55000 00 014	Request access	6	3/8	7,5	23	17	4	10
55000 00 015	Request access	6	1/2	9	23,5	21	4	10
55000 00 006	Request access	8	1/8	5,5	24,5	14	5	10
55000 00 007	Request access	8	1/4	7	22	14	6	10
55000 00 008	Request access	8	3/8	7,5	23	17	6	10
55000 00 016	Request access	8	1/2	9	23,5	21	6	10
55000 00 009	Request access	10	1/4	7	28	17	7	10
55000 00 010	Request access	10	3/8	7,5	25,5	17	8	10
55000 00 017	Request access	10	1/2	9	26	21	8	10
55000 00 011	Request access	12	1/4	7	31,5	20	7	10
55000 00 012	Request access	12	3/8	7,5	29,5	20	9	10
55000 00 018	Request access	12	1/2	9	31,5	21	10	10
55000 00 019	Request access	14	3/8	7,5	32,5	21	9	10
55000 00 020	Request access	14	1/2	9	31,5	21	10	10
55000 00 021	Request access	16	3/8	7,5	35	23	10	10
55000 00 022	Request access	16	1/2	9	35	25	12	10
