50020N

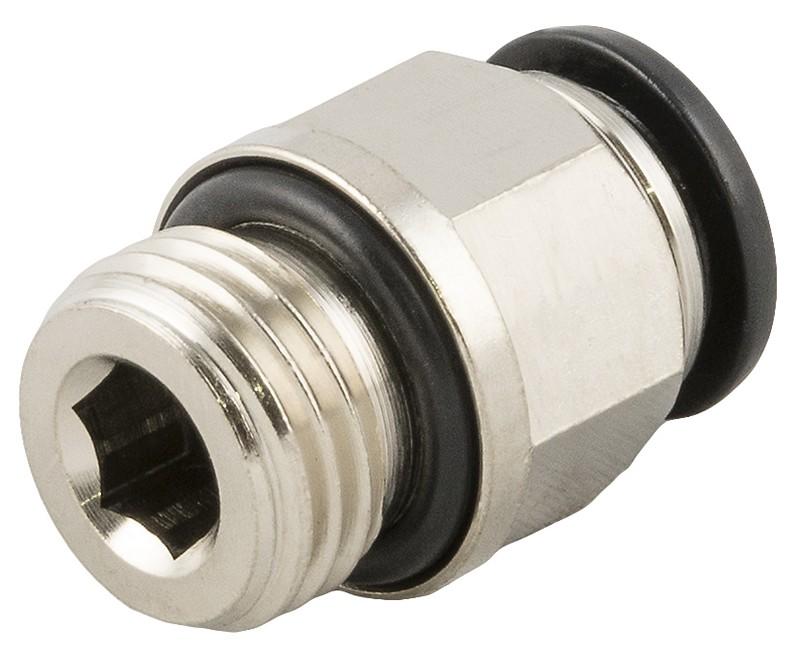

STRAIGHT MALE ADAPTOR (PARALLEL)
| Code | 3D Drawings | Tube | A | B | C | L | CH1 | CH2 | Bag | |
|---|---|---|---|---|---|---|---|---|---|---|
| 50020 00 N21 | Request access | 3 | M5 | 3.6 | 8 | 19 | 8 | 2 | 10 | |
| 50020 00 N34 | Request access | 4 | M3 | 3 | 10 | 21 | 8 | - | 10 | |
| 50020 00 N01 | Request access | 4 | M5 | 3.6 | 8 | 21 | 10 | 2 | 10 | |
| 50020 00 N02 | Request access | 4 | 1/8 | 5.4 | 13 | 20 | 10 | 3 | 10 | |
| 50020 00 N22 | Request access | 4 | 1/4 | 7.1 | 16 | 19,5 | 16 | 3 | 10 | |
| 50020 00 N41 | Request access | 4 | 3/8 | 8.1 | 20 | 18 | 20 | 3 | 10 | |
| 50020 00 N18 | Request access | 5 | M5 | 3.6 | 8 | 23,5 | 12 | 2 | 10 | |
| 50020 00 N19 | Request access | 5 | 1/8 | 5.4 | 13 | 22 | 12 | 4 | 10 | |
| 50020 00 N36 | Request access | 5 | 1/4 | 7.1 | 16 | 22 | 12 | 4 | 10 | |
| 50020 00 N20 | Request access | 6 | M5 | 3.6 | 10 | 24,5 | 13 | 2 | 10 | |
| 50020 00 N03 | Request access | 6 | 1/8 | 5.4 | 13 | 23,5 | 13 | 4 | 10 | |
| 50020 00 N04 | Request access | 6 | 1/4 | 7.1 | 16 | 23,5 | 13 | 4 | 10 | |
| 50020 00 N27 | Request access | 6 | 3/8 | 8.1 | 20 | 25 | 13 | 4 | 10 | |
| 50020 00 N28 | Request access | 6 | 1/2 | 9.6 | 25 | 27 | 13 | 4 | 10 | |
| 50020 00 N05 | Request access | 8 | 1/8 | 5.4 | 13 | 25 | 14 | 5 | 10 | |
| 50020 00 N06 | Request access | 8 | 1/4 | 7.1 | 16 | 23 | 14 | 6 | 10 | |
| 50020 00 N07 | Request access | 8 | 3/8 | 8.1 | 20 | 24 | 14 | 6 | 10 | |
| 50020 00 N29 | Request access | 8 | 1/2 | 9.6 | 25 | 26,5 | 14 | 6 | 10 | |
| 50020 00 N30 | Request access | 10 | 1/8 | 5.4 | 13 | 30 | 17 | 5 | 10 | |
| 50020 00 N08 | Request access | 10 | 1/4 | 7.1 | 16 | 30,5 | 17 | 6 | 10 | |
| 50020 00 N09 | Request access | 10 | 3/8 | 8.1 | 20 | 27,5 | 17 | 8 | 10 | |
| 50020 00 N31 | Request access | 10 | 1/2 | 9.6 | 25 | 27 | 17 | 8 | 10 | |
| 50020 00 N32 | Request access | 12 | 1/4 | 7.1 | 16 | 34,5 | 20 | 6 | 10 | |
| 50020 00 N11 | Request access | 12 | 3/8 | 8.1 | 20 | 34 | 20 | 8 | 10 | |
| 50020 00 N23 | Request access | 12 | 1/2 | 9.6 | 25 | 31 | 22 | 10 | 10 | |
| 50020 00 N24 | Request access | 14 | 3/8 | 8.1 | 20 | 35 | 21 | 10 | 10 | |
| 50020 00 N25 | Request access | 14 | 1/2 | 9.6 | 25 | 32 | 22 | 11 | 10 | |
| 50020 00 N42 | Request access | 16 | 3/8 | 8.1 | 20 | 36 | 23 | 10 | 10 | |
| 50020 00 N43 | Request access | 16 | 1/2 | 9.6 | 25 | 37 | 25 | 12 | 10 | |
| 50020 00 N46 | Request access | 4 | M6X1 | 3.6 | 12 | 18,5 | 10 | 3 | 10 | |
| 50020 00 N33 | Request access | 4 | M8X1 | 5.4 | 12 | 18,5 | 10 | 3 | 10 | |
| 50020 00 N37 | Request access | 6 | M8X1 | 5.4 | 12 | 24,5 | 13 | 3 | 10 | |
| 50020 00 N38 | Request access | 6 | M10X1 | 5.4 | 13 | 23 | 13 | 4 | 10 | |
| 50020 00 N12 | Request access | 6 | M12X1 | 7.3 | 15 | 23,5 | 13 | 4 | 10 | |
| 50020 00 N13 | Request access | 6 | M12X1,25 | 7.3 | 15 | 23,5 | 13 | 4 | 10 | |
| 50020 00 N14 | Request access | 6 | M12X1,5 | 7.3 | 15 | 23,5 | 13 | 4 | 10 | |
| 50020 00 N39 | Request access | 8 | M8X1 | 5.4 | 12 | 25,5 | 14 | 4 | 10 | |
| 50020 00 N40 | Request access | 8 | M10X1 | 5.4 | 13 | 25,5 | 14 | 4 | 10 | |
| 50020 00 N17 | Request access | 8 | M12X1,5 | 7.3 | 15 | 27,5 | 14 | 6 | 10 |
