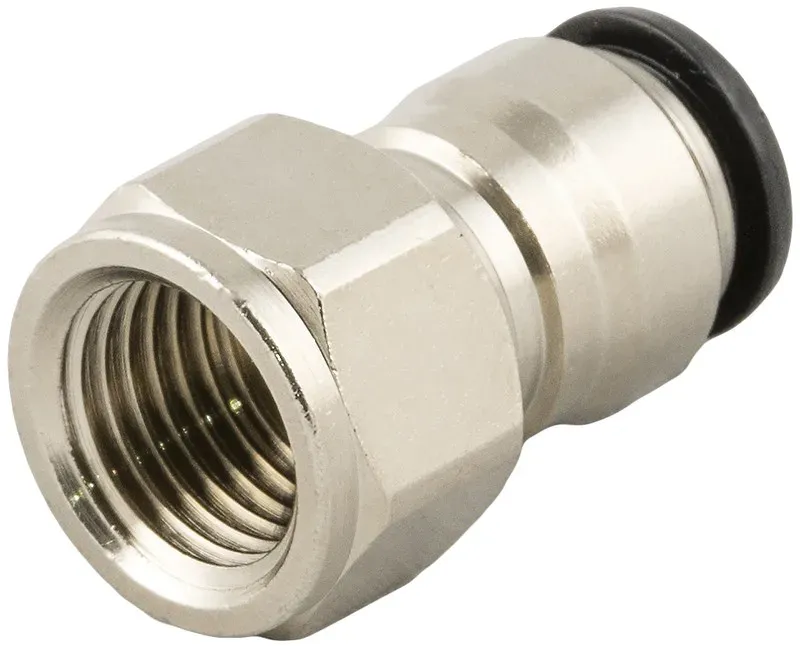

STRAIGHT FEMALE ADAPTOR

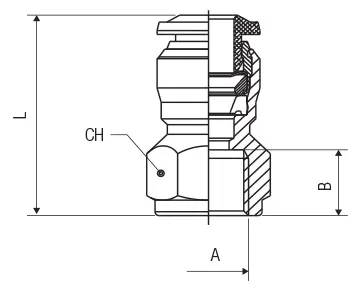

Code	3D Drawings	Tube	A	B	L	CH	Bag
50030 00 N07	Request access	3	M5	5,5	18,5	9	10
50030 00 N08	Request access	4	M5	5,5	21	11	10
50030 00 N01	Request access	4	1/8	8,5	24	13	10
50030 00 N09	Request access	4	1/4	11	27,5	16	10
50030 00 N06	Request access	5	1/8	8,5	26,5	13	10
50030 00 N02	Request access	6	1/8	8,5	26	13	10
50030 00 N03	Request access	6	1/4	11	29,5	16	10
50030 00 N04	Request access	8	1/8	8,5	27	15	10
50030 00 N05	Request access	8	1/4	11	29,5	17	10
50030 00 N10	Request access	8	3/8	12	32	19	10
50030 00 N11	Request access	10	1/4	11	32	18	10
50030 00 N12	Request access	10	3/8	12	33,5	19	10
50030 00 N13	Request access	10	1/2	15	39	24	10
50030 00 N14	Request access	12	3/8	12	36	21	10
50030 00 N15	Request access	12	1/2	15	41	24	10
50030 00 N16	Request access	16	3/8	12	40,5	24	10
50030 00 N17	Request access	16	1/2	15	41,5	24	10
