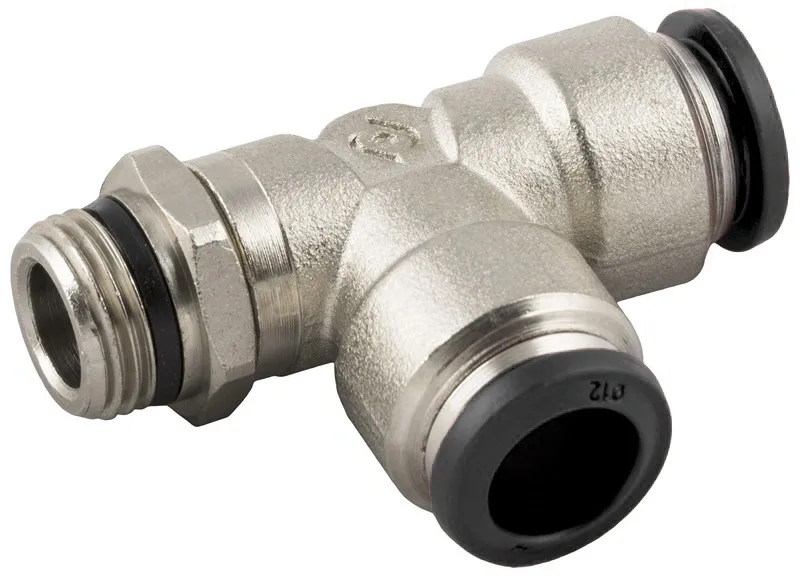

ORIENTING TEE MALE ADAPTOR “UNIVERSAL SHORT” OFF - SET LEG

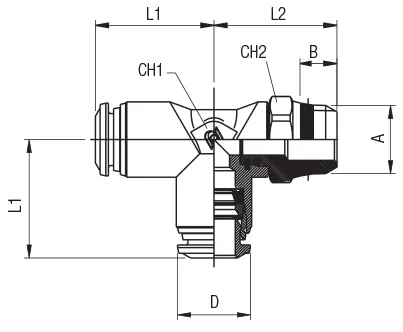

Code	3D Drawings	Tube	A	B	L1	L2	CH1	CH2	D	Bag
50223 00 N01	Request access	4	1/8	5,5	17	20	9	13	10	10
50223 00 N02	Request access	4	1/4	7	17	21.5	9	15	10	10
50223 00 N03	Request access	5	1/8	5,5	20	22	11	13	12.5	10
50223 00 N04	Request access	6	1/8	5,5	21	22	11	13	12.5	10
50223 00 N05	Request access	6	1/4	7	21	23,5	11	15	12.5	10
50223 00 N06	Request access	8	1/8	5,5	22,5	24	13	13	14.5	10
50223 00 N07	Request access	8	1/4	7	22,5	24	13	15	14.5	10
50223 00 N08	Request access	8	3/8	7,5	22,5	24,5	13	17	14.5	10
50223 00 N09	Request access	8	1/2	9	22,5	28	13	21	14.5	10
50223 00 N10	Request access	10	1/4	7	26,5	28,5	14	16	17.5	10
50223 00 N11	Request access	10	3/8	7,5	26,5	28	14	17	17.5	10
50223 00 N12	Request access	10	1/2	9	26,5	29	14	21	17.5	10
50223 00 N13	Request access	12	3/8	7,5	31,5	29,1	16	20	21.5	10
50223 00 N14	Request access	12	1/2	9	31,5	31,6	16	21	21.5	10
