50126N

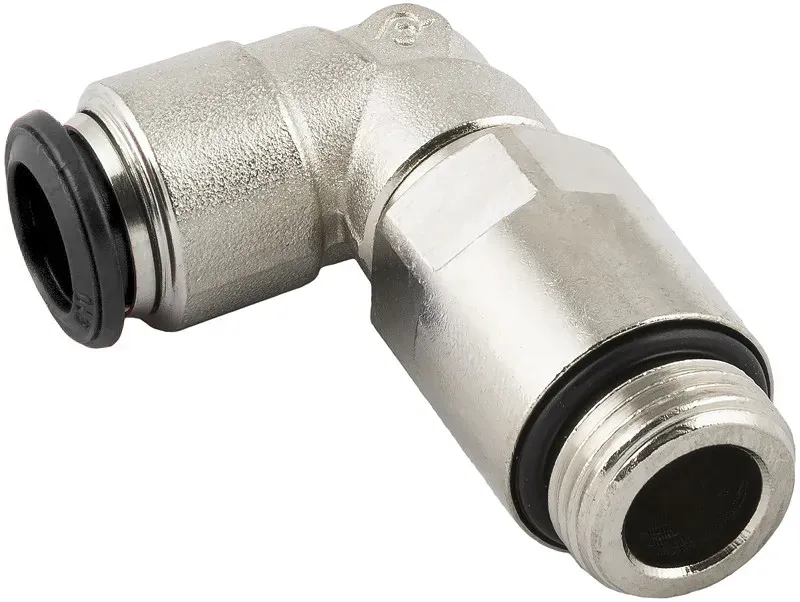

EXTENDED ORIENTING ELBOW MALE ADAPTOR (PARALLEL)

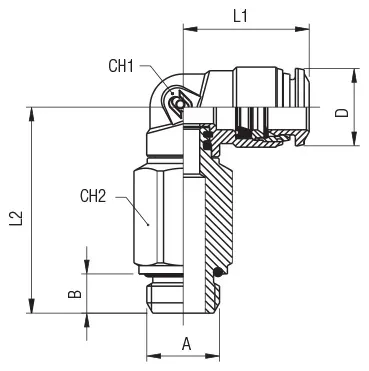

| Code | 3D Drawings | Tube | A | B | L1 | L2 | CH1 | CH2 | D | Bag | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 50126 00 N01 | Request access | 4 | 1/8 | 5.4 | 18 | 30 | 9 | 12 | 10 | 10 | |
| 50126 00 N02 | Request access | 4 | 1/4 | 7.1 | 18 | 32 | 9 | 15 | 10 | 10 | |
| 50126 00 N03 | Request access | 5 | 1/8 | 5.4 | 20 | 34.5 | 11 | 12 | 12.5 | 10 | |
| 50126 00 N04 | Request access | 6 | 1/8 | 5.4 | 21 | 34,5 | 11 | 12 | 12.5 | 10 | |
| 50126 00 N05 | Request access | 6 | 1/4 | 7.1 | 21 | 36 | 11 | 15 | 12.5 | 10 | |
| 50126 00 N06 | Request access | 8 | 1/8 | 5.4 | 23 | 39 | 12 | 12 | 14.5 | 10 | |
| 50126 00 N07 | Request access | 8 | 1/4 | 7.1 | 22,5 | 39,5 | 12 | 15 | 14.5 | 10 | |
| 50126 00 N08 | Request access | 8 | 3/8 | 8.1 | 22,5 | 41,5 | 12 | 18 | 14.5 | 10 | |
| 50126 00 N09 | Request access | 10 | 1/4 | 7.1 | 26,5 | 46,6 | 14 | 16 | 17.5 | 10 | |
| 50126 00 N10 | Request access | 10 | 3/8 | 8.1 | 26,5 | 46,1 | 14 | 18 | 17.5 | 10 |
