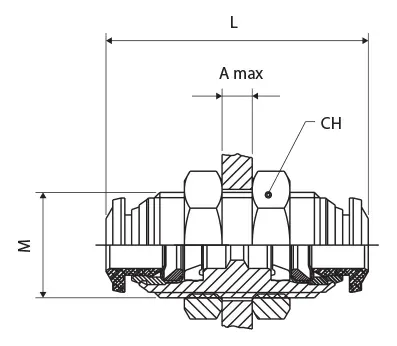

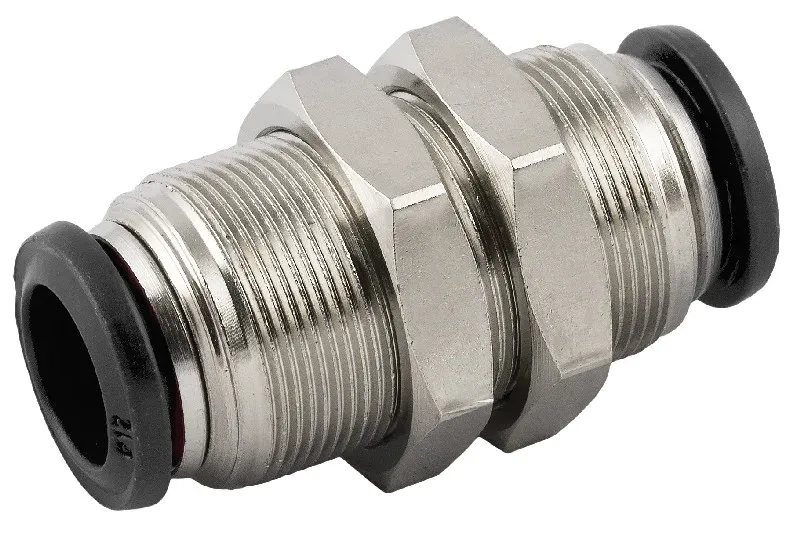

BULKHEAD CONNECTOR

Code	3D Drawings	Tube	M	L	CH	A Max	Bag
50050 00 N07	Request access	3	M10X1	26	14	5	10
50050 00 N01	Request access	4	M12X1	31,5	17	7	10
50050 00 N06	Request access	5	M14X1	33	17	7	10
50050 00 N02	Request access	6	M14X1	35	17	9,5	10
50050 00 N09	Request access	8-6	M16X1	37	19	10,5	10
50050 00 N03	Request access	8	M16X1	37	19	10,5	10
50050 00 N10	Request access	10-6	M20X1	43	24	11,5	10
50050 00 N11	Request access	10-8	M20X1	43	24	12,5	10
50050 00 N04	Request access	10	M20X1	43	24	12,5	10
50050 00 N05	Request access	12	M22X1	48	26	16,5	10
50050 00 N08	Request access	14	M23X1	49	27	16,5	10
