40106V

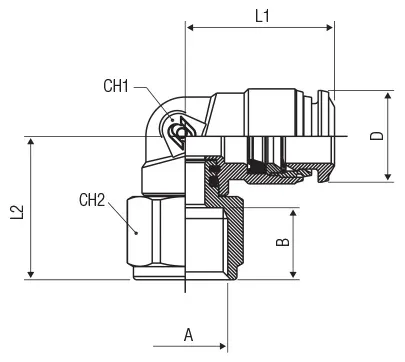

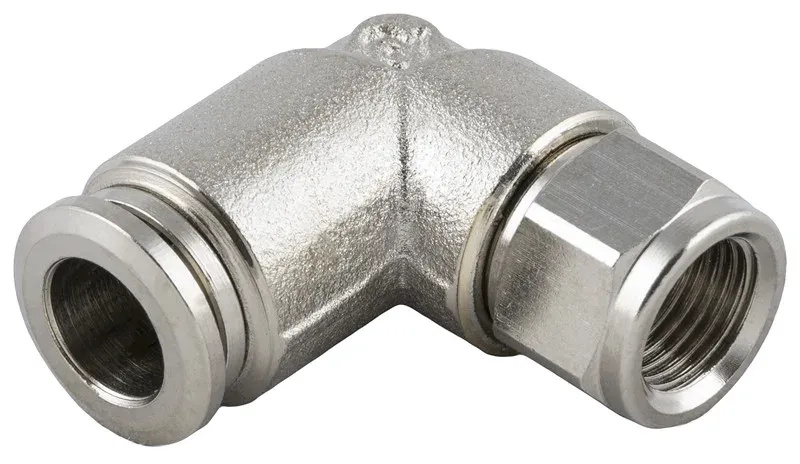

ORIENTING ELBOW FEMALE ADAPTOR
|
Code |
3D Drawings |
Tube |
A |
B |
L1 |
L2 |
CH1 |
CH2 |
D |
Bag |
|
40106 V0 001
|
-
Request access
|
4 |
1/8 |
8,5 |
18 |
20 |
9 |
13 |
10 |
10 |
|
40106 V0 002
|
-
Request access
|
4 |
1/4 |
11 |
18 |
21,5 |
9 |
16 |
10 |
10 |
|
40106 V0 003
|
-
Request access
|
6 |
1/8 |
8,5 |
21 |
20,5 |
11 |
13 |
12,5 |
10 |
|
40106 V0 004
|
-
Request access
|
6 |
1/4 |
11 |
21 |
23 |
11 |
16 |
12,5 |
10 |
|
40106 V0 005
|
-
Request access
|
8 |
1/8 |
8,5 |
22,5 |
20,5 |
12 |
13 |
14,5 |
10 |
|
40106 V0 006
|
-
Request access
|
8 |
1/4 |
11 |
22,5 |
23 |
12 |
16 |
14,5 |
10 |
