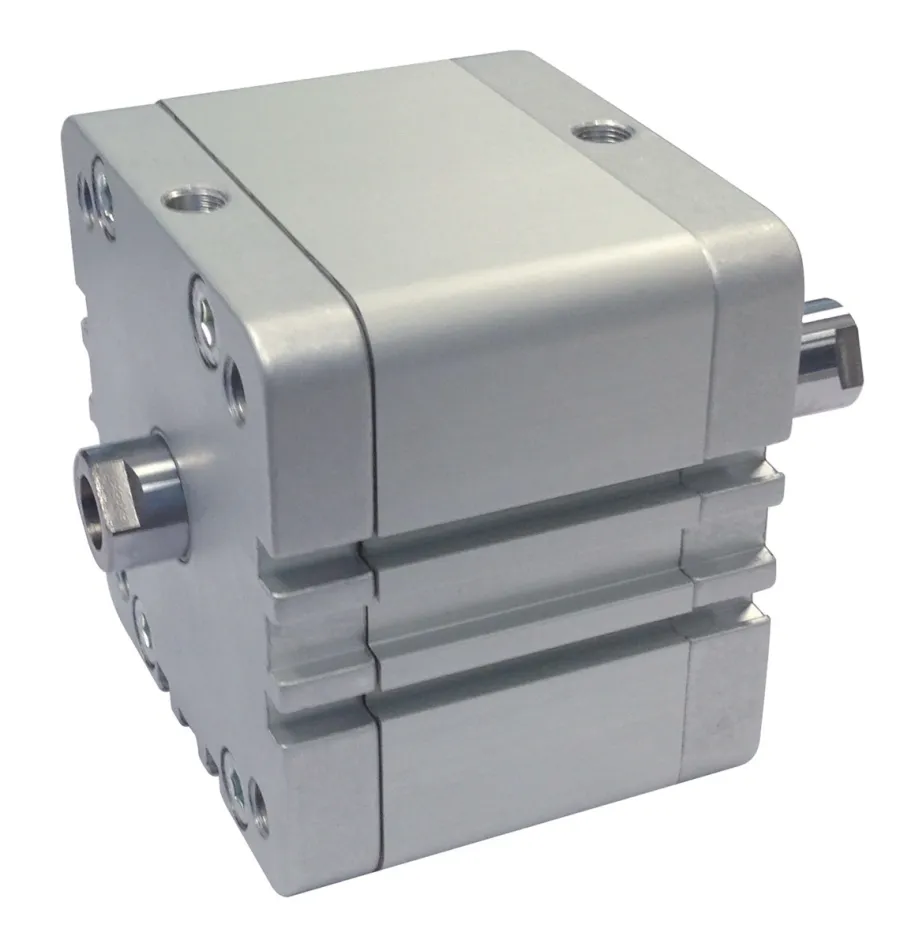

WJ - DOUBLE ACTING MAGNETIC WITH DOUBLE ROD END - Bore from 32 to 100

Filter

WJ032100

WJ - DOUBLE ACTING MAGNETIC WITH DOUBLE ROD END - Bore from 32 to 100

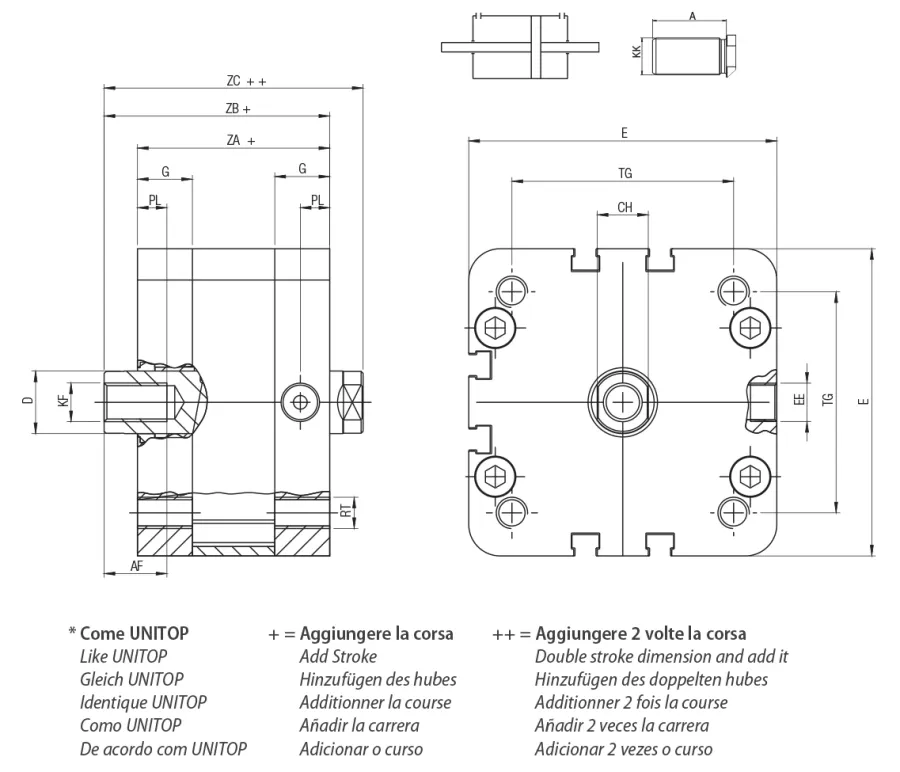

Code	3D Drawings	Ø	Stroke	Ø D	E	L1	A	KK	CH	AF	KF	BG	LA	RT	G	TG	EE	PL	ZA+	ZB+	ZC++
WJ 032 0005	Request access	32	5	12	49	-	19	M10X1,25	10	12	M8	-	-	M6	14,5	32,5	G1/8	7.5	44	51	58
WJ 032 0010	Request access	32	10	12	49	-	19	M10X1,25	10	12	M8	-	-	M6	14,5	32,5	G1/8	7.5	44	51	58
WJ 032 0015	Request access	32	15	12	49	-	19	M10X1,25	10	12	M8	-	-	M6	14,5	32,5	G1/8	7.5	44	51	58
WJ 032 0020	Request access	32	20	12	49	-	19	M10X1,25	10	12	M8	-	-	M6	14,5	32,5	G1/8	7.5	44	51	58
WJ 032 0025	Request access	32	25	12	49	-	19	M10X1,25	10	12	M8	-	-	M6	14,5	32,5	G1/8	7.5	44	51	58
WJ 032 0030	Request access	32	30	12	49	-	19	M10X1,25	10	12	M8	-	-	M6	14,5	32,5	G1/8	7.5	44	51	58
WJ 032 0040	Request access	32	40	12	49	-	19	M10X1,25	10	12	M8	-	-	M6	14,5	32,5	G1/8	7.5	44	51	58
WJ 032 0050	Request access	32	50	12	49	-	19	M10X1,25	10	12	M8	-	-	M6	14,5	32,5	G1/8	7.5	44	51	58
WJ 032 0060	Request access	32	60	12	49	-	19	M10X1,25	10	12	M8	-	-	M6	14,5	32,5	G1/8	7.5	44	51	58
WJ 032 0080	Request access	32	80	12	49	-	19	M10X1,25	10	12	M8	-	-	M6	14,5	32,5	G1/8	7.5	44	51	58
WJ 032 0100	Request access	32	100	12	49	-	19	M10X1,25	10	12	M8	-	-	M6	14,5	32,5	G1/8	7.5	44	51	58
WJ 032 0125	Request access	32	125	12	49	-	19	M10X1,25	10	12	M8	-	-	M6	14,5	32,5	G1/8	7.5	44	51	58
WJ 032 0150	Request access	32	150	12	49	-	19	M10X1,25	10	12	M8	-	-	M6	14,5	32,5	G1/8	7.5	44	51	58
WJ 040 0005	Request access	40	5	12	55	-	19	M10X1,25	10	12	M8	-	-	M6	15	38	G1/8	7.5	45	52	59
WJ 040 0010	Request access	40	10	12	55	-	19	M10X1,25	10	12	M8	-	-	M6	15	38	G1/8	7.5	45	52	59
WJ 040 0015	Request access	40	15	12	55	-	19	M10X1,25	10	12	M8	-	-	M6	15	38	G1/8	7.5	45	52	59
WJ 040 0020	Request access	40	20	12	55	-	19	M10X1,25	10	12	M8	-	-	M6	15	38	G1/8	7.5	45	52	59
WJ 040 0025	Request access	40	25	12	55	-	19	M10X1,25	10	12	M8	-	-	M6	15	38	G1/8	7.5	45	52	59
WJ 040 0030	Request access	40	30	12	55	-	19	M10X1,25	10	12	M8	-	-	M6	15	38	G1/8	7.5	45	52	59
WJ 040 0040	Request access	40	40	12	55	-	19	M10X1,25	10	12	M8	-	-	M6	15	38	G1/8	7.5	45	52	59
WJ 040 0050	Request access	40	50	12	55	-	19	M10X1,25	10	12	M8	-	-	M6	15	38	G1/8	7.5	45	52	59
WJ 040 0060	Request access	40	60	12	55	-	19	M10X1,25	10	12	M8	-	-	M6	15	38	G1/8	7.5	45	52	59
WJ 040 0080	Request access	40	80	12	55	-	19	M10X1,25	10	12	M8	-	-	M6	15	38	G1/8	7.5	45	52	59
WJ 040 0100	Request access	40	100	12	55	-	19	M10X1,25	10	12	M8	-	-	M6	15	38	G1/8	7.5	45	52	59
WJ 040 0125	Request access	40	125	12	55	-	19	M10X1,25	10	12	M8	-	-	M6	15	38	G1/8	7.5	45	52	59
WJ 040 0150	Request access	40	150	12	55	-	19	M10X1,25	10	12	M8	-	-	M6	15	38	G1/8	7.5	45	52	59
WJ 050 0005	Request access	50	5	16	68	-	22	M12X1,25	13	16	M10	-	-	M8	14,5	46,5	G1/8	7.5	45	53	61
WJ 050 0010	Request access	50	10	16	68	-	22	M12X1,25	13	16	M10	-	-	M8	14,5	46,5	G1/8	7.5	45	53	61
WJ 050 0015	Request access	50	15	16	68	-	22	M12X1,25	13	16	M10	-	-	M8	14,5	46,5	G1/8	7.5	45	53	61
WJ 050 0020	Request access	50	20	16	68	-	22	M12X1,25	13	16	M10	-	-	M8	14,5	46,5	G1/8	7.5	45	53	61
WJ 050 0025	Request access	50	25	16	68	-	22	M12X1,25	13	16	M10	-	-	M8	14,5	46,5	G1/8	7.5	45	53	61
WJ 050 0030	Request access	50	30	16	68	-	22	M12X1,25	13	16	M10	-	-	M8	14,5	46,5	G1/8	7.5	45	53	61
WJ 050 0040	Request access	50	40	16	68	-	22	M12X1,25	13	16	M10	-	-	M8	14,5	46,5	G1/8	7.5	45	53	61
WJ 050 0050	Request access	50	50	16	68	-	22	M12X1,25	13	16	M10	-	-	M8	14,5	46,5	G1/8	7.5	45	53	61
WJ 050 0060	Request access	50	60	16	68	-	22	M12X1,25	13	16	M10	-	-	M8	14,5	46,5	G1/8	7.5	45	53	61
WJ 050 0080	Request access	50	80	16	68	-	22	M12X1,25	13	16	M10	-	-	M8	14,5	46,5	G1/8	7.5	45	53	61
WJ 050 0100	Request access	50	100	16	68	-	22	M12X1,25	13	16	M10	-	-	M8	14,5	46,5	G1/8	7.5	45	53	61
WJ 050 0125	Request access	50	125	16	68	-	22	M12X1,25	13	16	M10	-	-	M8	14,5	46,5	G1/8	7.5	45	53	61
WJ 050 0150	Request access	50	150	16	68	-	22	M12X1,25	13	16	M10	-	-	M8	14,5	46,5	G1/8	7.5	45	53	61
WJ 050 0200	Request access	50	200	16	68	-	22	M12X1,25	13	16	M10	-	-	M8	14,5	46,5	G1/8	7.5	45	53	61
WJ 063 0005	Request access	63	5	16	78,5	-	22	M12X1,25	13	16	M10	-	-	M8	14	56,5	G1/8	7.5	49	57,5	66
WJ 063 0010	Request access	63	10	16	78,5	-	22	M12X1,25	13	16	M10	-	-	M8	14	56,5	G1/8	7.5	49	57,5	66
WJ 063 0015	Request access	63	15	16	78,5	-	22	M12X1,25	13	16	M10	-	-	M8	14	56,5	G1/8	7.5	49	57,5	66
WJ 063 0020	Request access	63	20	16	78,5	-	22	M12X1,25	13	16	M10	-	-	M8	14	56,5	G1/8	7.5	49	57,5	66
WJ 063 0025	Request access	63	25	16	78,5	-	22	M12X1,25	13	16	M10	-	-	M8	14	56,5	G1/8	7.5	49	57,5	66
WJ 063 0030	Request access	63	30	16	78,5	-	22	M12X1,25	13	16	M10	-	-	M8	14	56,5	G1/8	7.5	49	57,5	66
WJ 063 0040	Request access	63	40	16	78,5	-	22	M12X1,25	13	16	M10	-	-	M8	14	56,5	G1/8	7.5	49	57,5	66
WJ 063 0050	Request access	63	50	16	78,5	-	22	M12X1,25	13	16	M10	-	-	M8	14	56,5	G1/8	7.5	49	57,5	66
WJ 063 0060	Request access	63	60	16	78,5	-	22	M12X1,25	13	16	M10	-	-	M8	14	56,5	G1/8	7.5	49	57,5	66
WJ 063 0080	Request access	63	80	16	78,5	-	22	M12X1,25	13	16	M10	-	-	M8	14	56,5	G1/8	7.5	49	57,5	66
WJ 063 0100	Request access	63	100	16	78,5	-	22	M12X1,25	13	16	M10	-	-	M8	14	56,5	G1/8	7.5	49	57,5	66
WJ 063 0125	Request access	63	125	16	78,5	-	22	M12X1,25	13	16	M10	-	-	M8	14	56,5	G1/8	7.5	49	57,5	66
WJ 063 0150	Request access	63	150	16	78,5	-	22	M12X1,25	13	16	M10	-	-	M8	14	56,5	G1/8	7.5	49	57,5	66
WJ 063 0200	Request access	63	200	16	78,5	-	22	M12X1,25	13	16	M10	-	-	M8	14	56,5	G1/8	7.5	49	57,5	66
WJ 080 0005	Request access	80	5	20	98	-	28	M16X1,5	17	20	M12	-	-	M10	15,5	72	G1/8	7.5	54	64	74
WJ 080 0010	Request access	80	10	20	98	-	28	M16X1,5	17	20	M12	-	-	M10	15,5	72	G1/8	7.5	54	64	74
WJ 080 0015	Request access	80	15	20	98	-	28	M16X1,5	17	20	M12	-	-	M10	15,5	72	G1/8	7.5	54	64	74
WJ 080 0020	Request access	80	20	20	98	-	28	M16X1,5	17	20	M12	-	-	M10	15,5	72	G1/8	7.5	54	64	74
WJ 080 0025	Request access	80	25	20	98	-	28	M16X1,5	17	20	M12	-	-	M10	15,5	72	G1/8	7.5	54	64	74
WJ 080 0030	Request access	80	30	20	98	-	28	M16X1,5	17	20	M12	-	-	M10	15,5	72	G1/8	7.5	54	64	74
WJ 080 0040	Request access	80	40	20	98	-	28	M16X1,5	17	20	M12	-	-	M10	15,5	72	G1/8	7.5	54	64	74
WJ 080 0050	Request access	80	50	20	98	-	28	M16X1,5	17	20	M12	-	-	M10	15,5	72	G1/8	7.5	54	64	74
WJ 080 0060	Request access	80	60	20	98	-	28	M16X1,5	17	20	M12	-	-	M10	15,5	72	G1/8	7.5	54	64	74
WJ 080 0080	Request access	80	80	20	98	-	28	M16X1,5	17	20	M12	-	-	M10	15,5	72	G1/8	7.5	54	64	74
WJ 080 0100	Request access	80	100	20	98	-	28	M16X1,5	17	20	M12	-	-	M10	15,5	72	G1/8	7.5	54	64	74
WJ 080 0125	Request access	80	125	20	98	-	28	M16X1,5	17	20	M12	-	-	M10	15,5	72	G1/8	7.5	54	64	74
WJ 080 0150	Request access	80	150	20	98	-	28	M16X1,5	17	20	M12	-	-	M10	15,5	72	G1/8	7.5	54	64	74
WJ 080 0200	Request access	80	200	20	98	-	28	M16X1,5	17	20	M12	-	-	M10	15,5	72	G1/8	7.5	54	64	74
WJ 100 0005	Request access	100	5	25	120	-	28	M16X1,5	22	20	M12	-	-	M10	20	89	G1/8	7.5	67	77	87
WJ 100 0010	Request access	100	10	25	120	-	28	M16X1,5	22	20	M12	-	-	M10	20	89	G1/8	7.5	67	77	87
WJ 100 0015	Request access	100	15	25	120	-	28	M16X1,5	22	20	M12	-	-	M10	20	89	G1/8	7.5	67	77	87
WJ 100 0020	Request access	100	20	25	120	-	28	M16X1,5	22	20	M12	-	-	M10	20	89	G1/8	7.5	67	77	87
WJ 100 0025	Request access	100	25	25	120	-	28	M16X1,5	22	20	M12	-	-	M10	20	89	G1/8	7.5	67	77	87
WJ 100 0030	Request access	100	30	25	120	-	28	M16X1,5	22	20	M12	-	-	M10	20	89	G1/8	7.5	67	77	87
WJ 100 0040	Request access	100	40	25	120	-	28	M16X1,5	22	20	M12	-	-	M10	20	89	G1/8	7.5	67	77	87
WJ 100 0050	Request access	100	50	25	120	-	28	M16X1,5	22	20	M12	-	-	M10	20	89	G1/8	7.5	67	77	87
WJ 100 0060	Request access	100	60	25	120	-	28	M16X1,5	22	20	M12	-	-	M10	20	89	G1/8	7.5	67	77	87
WJ 100 0080	Request access	100	80	25	120	-	28	M16X1,5	22	20	M12	-	-	M10	20	89	G1/8	7.5	67	77	87
WJ 100 0100	Request access	100	100	25	120	-	28	M16X1,5	22	20	M12	-	-	M10	20	89	G1/8	7.5	67	77	87
WJ 100 0125	Request access	100	125	25	120	-	28	M16X1,5	22	20	M12	-	-	M10	20	89	G1/8	7.5	67	77	87
WJ 100 0150	Request access	100	150	25	120	-	28	M16X1,5	22	20	M12	-	-	M10	20	89	G1/8	7.5	67	77	87
WJ 100 0200	Request access	100	200	25	120	-	28	M16X1,5	22	20	M12	-	-	M10	20	89	G1/8	7.5	67	77	87
