VASI

SQUARE JOINT - INOX

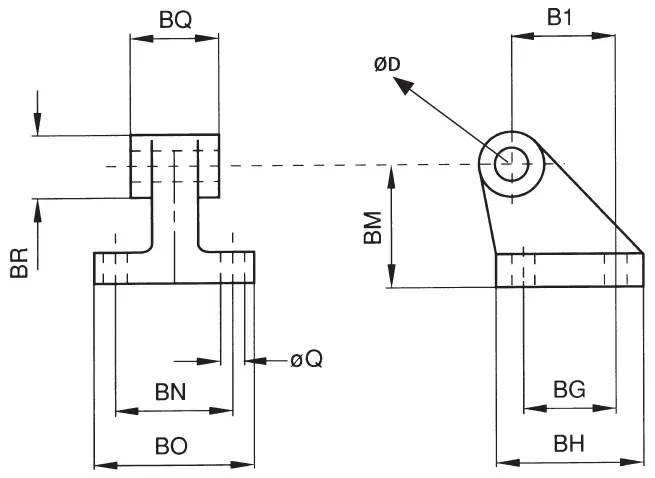

prodotto___viso15552_vasi_iso15552-d

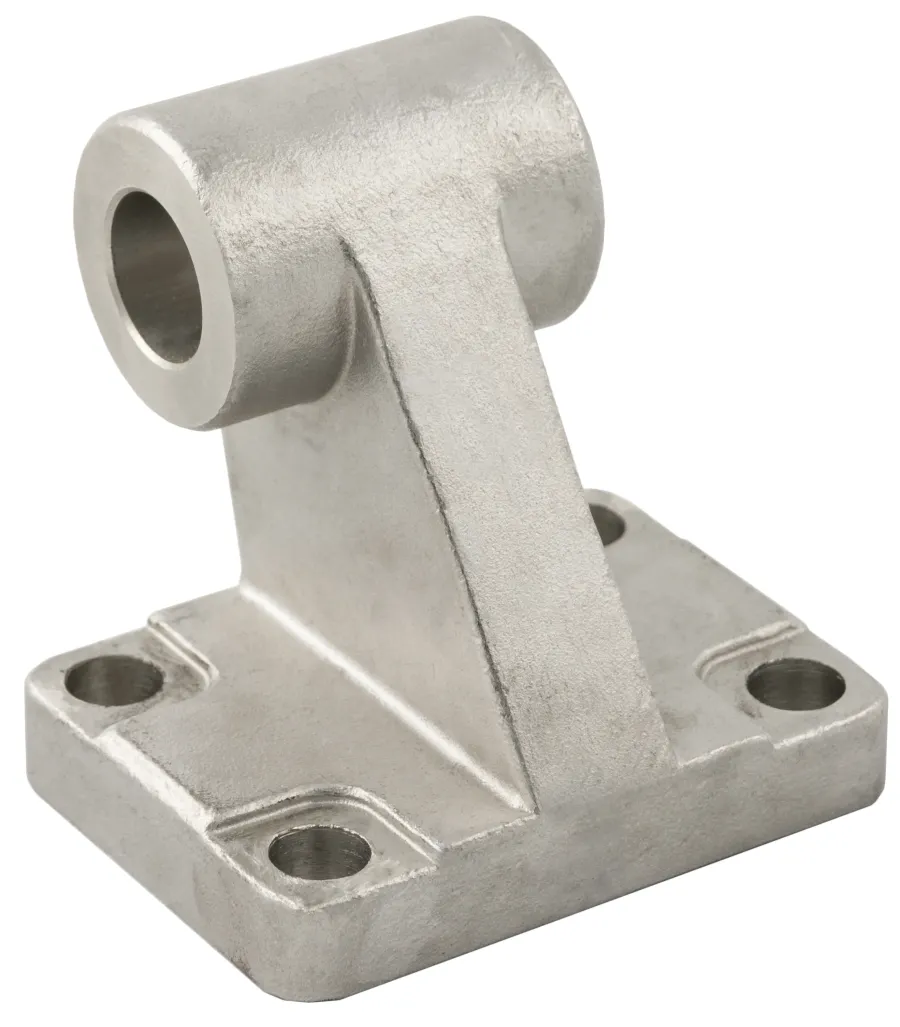

prodotto___viso15552_vasi_iso15552-f

	Code	3D Drawings	Ø	Q	BG	BH	BI	BM	BN	BO	BQ	BR	ØD
	VASI 032	Request access	32	6,6	18	31	21	32	38	51	26	20	10
	VASI 040	Request access	40	6,6	22	35	24	36	41	54	28	22	12
	VASI 050	Request access	50	9	30	45	33	45	50	65	32	26	12
	VASI 063	Request access	63	9	35	50	37	50	52	67	40	30	16
	VASI 080	Request access	80	11	40	60	47	63	66	86	50	30	16
	VASI 100	Request access	100	11	50	70	55	71	76	96	60	38	20
	VASI 125	Request access	125	14	60	90	70	90	94	124	70	45	25
