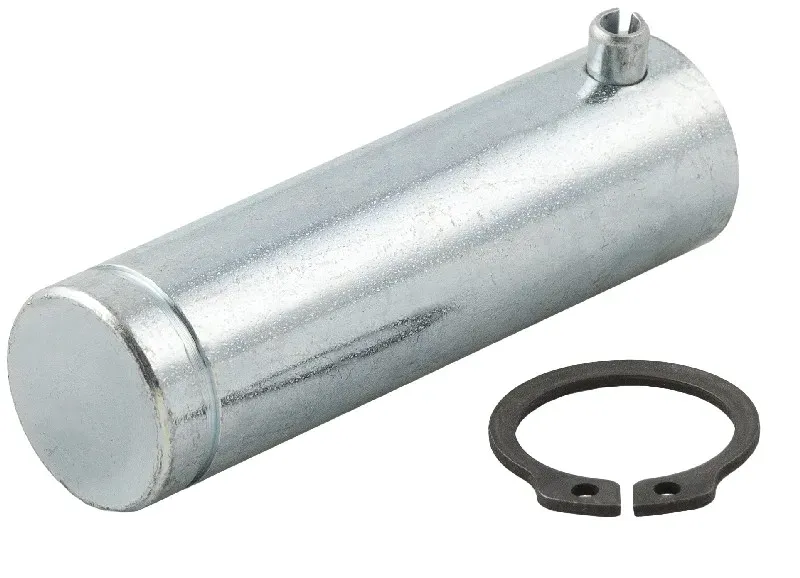

PIN ANTI-ROTATION FOR NARROW FEMALE HINGE VCD - INOX
|
Code |

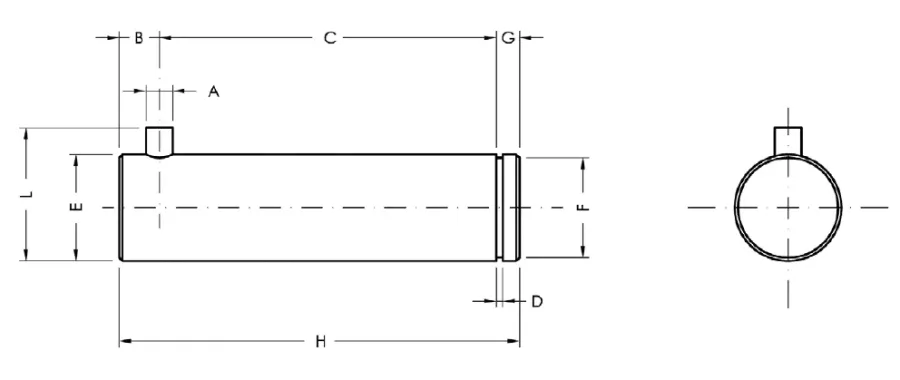

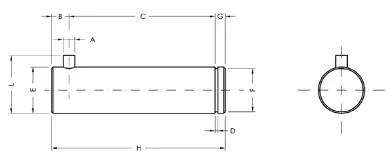

3D Drawings |
Ø |
A |
C |
D |
E |
F |
G |
H |
L |
B |
|
VPSI 032
|
-
Request access
|
32 |
3 |
32,5 |
1,1 |
10 |
9,6 |
4 |
41 |
14 |
4,5 |
|
VPSI 040
|
-
Request access
|
40 |
4 |
38 |
1,1 |
12 |
11,5 |
4 |
48 |
16 |
6 |
|
VPSI 050
|
-
Request access
|
50 |
4 |
43 |
1,1 |
16 |
15,2 |
5 |
54 |
20 |
6 |
|
VPSI 063
|
-
Request access
|
63 |
4 |
49 |
1,1 |
16 |
15,2 |
5 |
54 |
20 |
6 |
|
VPSI 080
|
-
Request access
|
80 |
4 |
63 |
1,3 |
20 |
19 |
6 |
75 |
24 |
6 |
|
VPSI 100
|
-
Request access
|
100 |
4 |
73 |
1,3 |
20 |
19 |
6 |
85 |
24 |
6 |
|
VPSI 125
|
-
Request access
|
125 |
6 |
94 |
1,6 |
30 |
28,6 |
7 |
110 |
36 |
9 |
