VCPI

LOW-RISE PEDESTAL - INOX

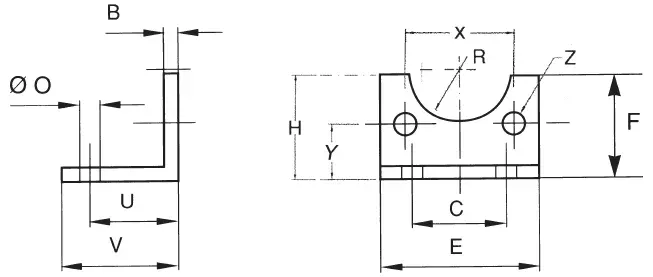

prodotto___viso15552_vcpi_iso15552-d

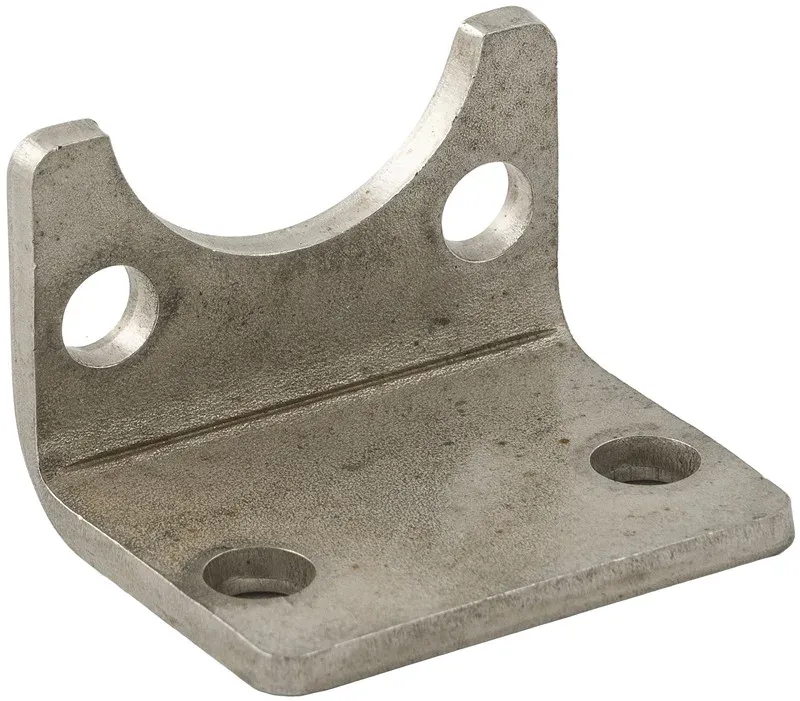

prodotto___viso15552_vcpi_iso15552-f

	Code	3D Drawings	Ø	B	C	E	F	O	U	V	R	Z	X	Y	H
	VCPI 032	Request access	32	4	32	45	30	7	24	35	15	7	32,5	15,75	32
	VCPI 040	Request access	40	4	36	52	30	9	28	36	17,5	7	38	17	36
	VCPI 050	Request access	50	5	45	65	36	9	32	47	20	9	46,5	21,75	45
	VCPI 063	Request access	63	5	50	75	35	9	32	45	22,5	9	56,5	21,75	50
	VCPI 080	Request access	80	6	63	95	47	12	41	55	22,5	11	72	27	63
	VCPI 100	Request access	100	6	75	115	53	14	41	57	27,5	11	89	26,5	71
	VCPI 125	Request access	125	8	90	140	70	16,5	45	70	30	14	110	35	90
