VCFI

FEMALE HINGE - INOX

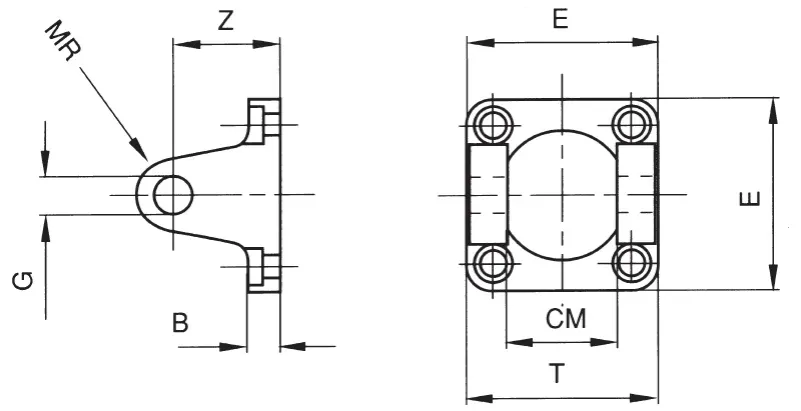

prodotto___viso15552_vcfi_iso15552-d

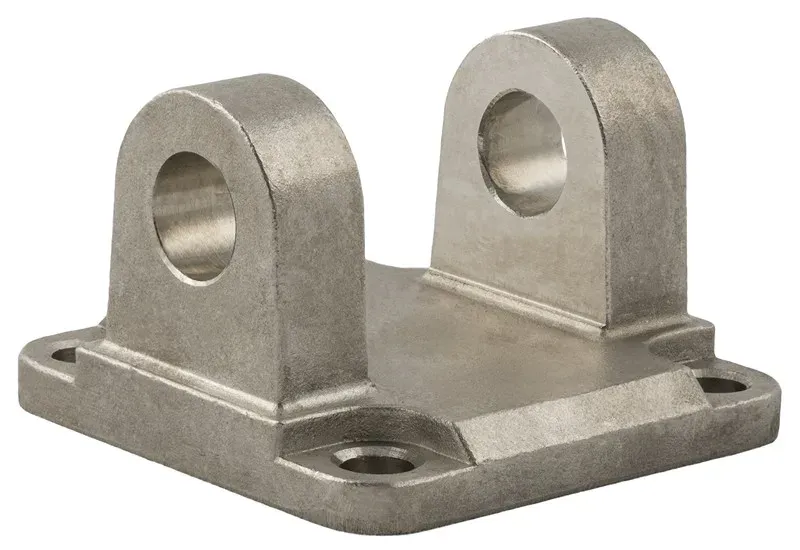

prodotto___viso15552_vcfi_iso15552-f

	Code	3D Drawings	Ø	B	E	G	T	Z	CM	MR
	VCFI 032	Request access	32	9	45	10	45	22	26	10
	VCFI 040	Request access	40	9	52	12	52	25	28	12
	VCFI 050	Request access	50	11	65	12	60	27	32	12
	VCFI 063	Request access	63	11	75	16	70	32	40	16
	VCFI 080	Request access	80	14	95	16	90	36	50	16
	VCFI 100	Request access	100	14	115	20	110	41	60	20
	VCFI 125	Request access	125	20	140	25	130	50	70	25
