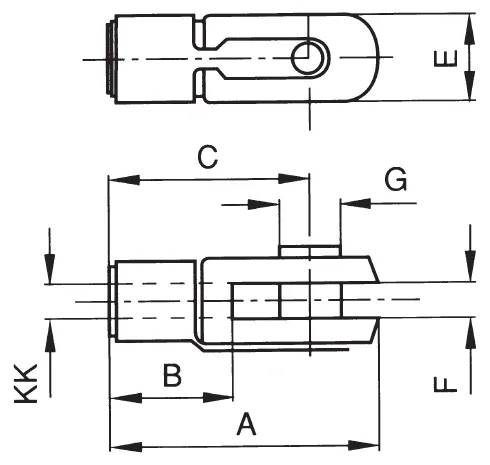

Code | 3D Drawings | KK | A | B | C | E | F | G | * | |
---|---|---|---|---|---|---|---|---|---|---|
FC 125 | Request access | M27X2 | 148 | 56 | 110 | 55 | 30 | 30 | With Pin and Seeger | |
FC 160 | Request access | M36X2 | 188 | 72 | 144 | 70 | 35 | 35 | With Pin and Seeger | |
FC 250 | Request access | M42X2 | 232 | 84 | 168 | 85 | 42 | 42 | With Pin and Seeger |
