VSI

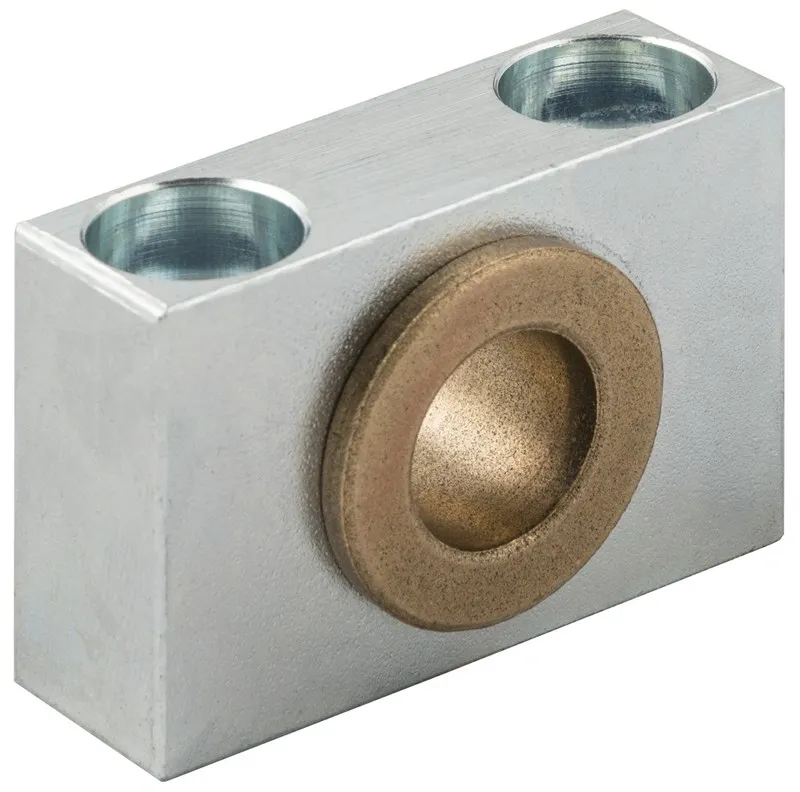

SUPPORT FOR INTERMEDIATE HINGE - STEEL
Suggested for VCNT - XCN - VCNL

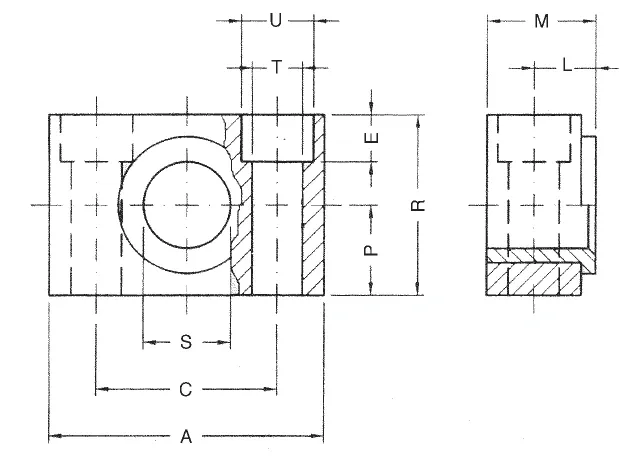

| Code | 3D Drawings | Ø | A | M | R | P | C | S | L | U | T | E | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| VSI 160 | Request access | 160 - 200 | 92 | 40 | 60 | 30 | 60 | 32 | 22,5 | 26 | 18 | 17 | |
| VSI 250 | Request access | 250 | 140 | 56 | 70 | 35 | 90 | 40 | 31 | 33 | 22 | 20 |
