VCP

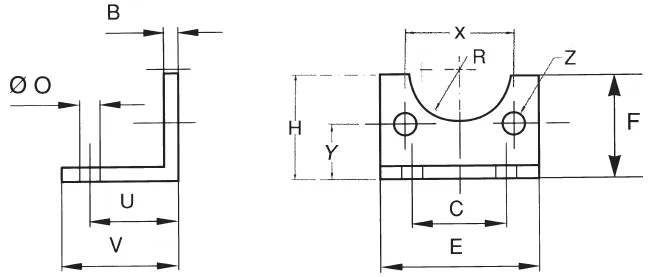

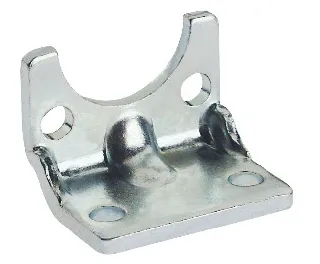

LOW-RISE PEDESTAL - STEEL
| Code | 3D Drawings | Ø | B | C | E | F | O | U | V | R | Z | X | Y | H | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| VCP 125 | Request access | 125 | 8 | 90 | 140 | 70 | 16,5 | 45 | 70 | 30 | 14 | 110 | 35 | 90 | |
| VCP 160 | Request access | 160 | 9 | 115 | 180 | 115 | 18,5 | 60 | 75 | 32,5 | 18 | 140 | 45 | 115 | |
| VCP 200 | Request access | 200 | 12 | 135 | 220 | 135 | 24 | 70 | 100 | 37,5 | 18 | 175 | 47,5 | 135 | |
| VCP 250 | Request access | 250 | 14 | 165 | 270 | 165 | 26 | 75 | 100 | 45 | 22 | 220 | 55 | 165 |
