VCNL

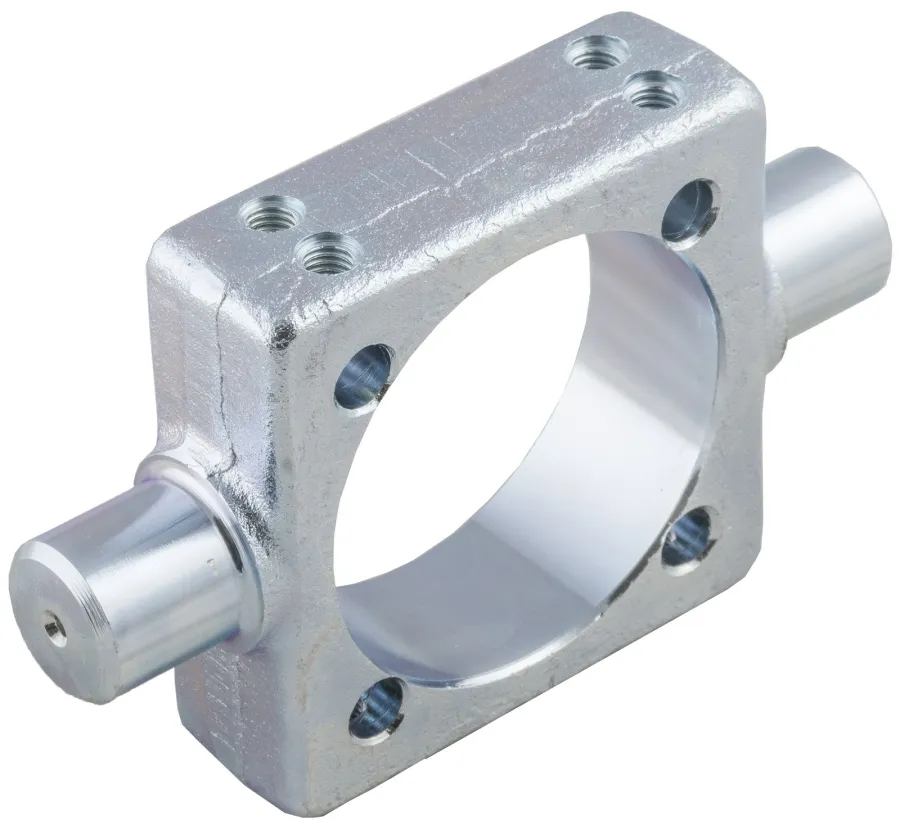

INTERMEDIATE HINGE FOR SMOOTH TIE-RODS - STEEL

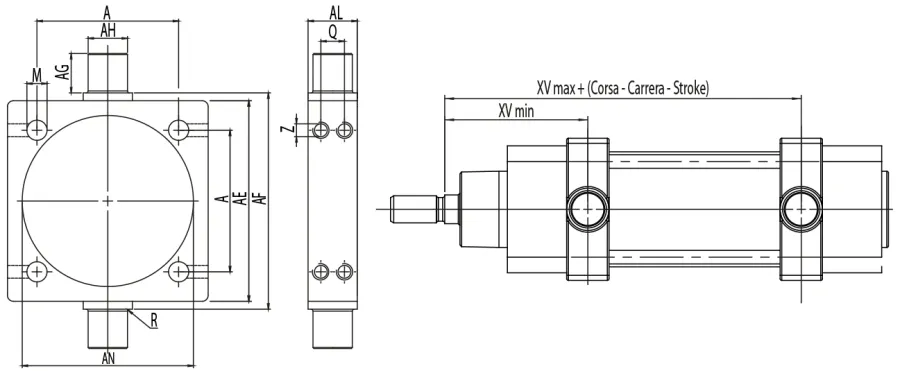

| Code | 3D Drawings | Ø | A | AE | AL | AH | AG | AF | AN | R | M | Q | Z | XV min | XV max | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| VCNL 125 | Request access | 125 | 110 | 155 | 32 | 25 | 25 | 160 | 133.5 | 2 | 12.25 | 15 | M10 | 126 | 163 | |
| VCNL 160 | Request access | 160 | 140 | 190 | 40 | 32 | 32 | 200 | 171 | 2.5 | 16.25 | 18 | M12 | 149 | 191 | |
| VCNL 200 | Request access | 200 | 175 | 240 | 40 | 32 | 32 | 250 | 211 | 2.5 | 16.25 | 18 | M12 | 164 | 206 |
