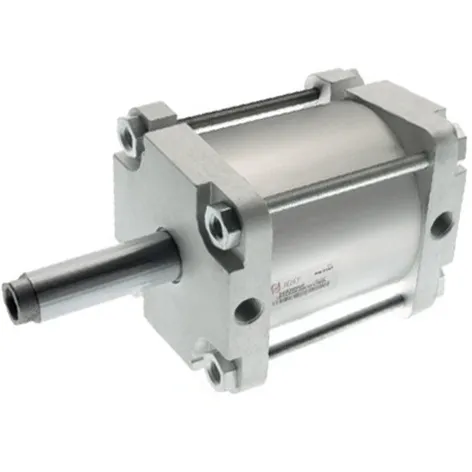

DOUBLE ACTING MAGNETIC WITH DOUBLE ROD END

Anodized aluminium tube round profile with tie rods.

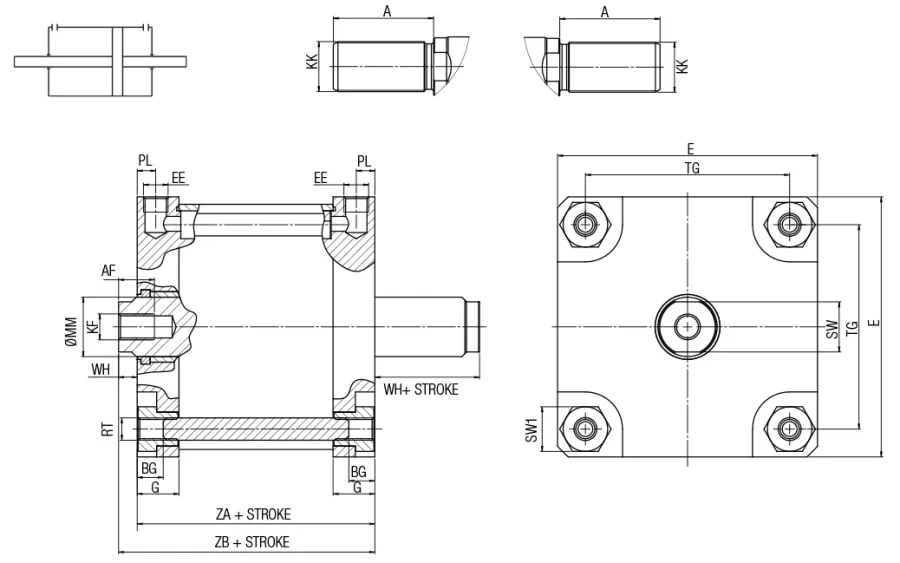

Code	3D Drawings	Ø	Stroke	A	E	G	TG	AF	BG	EE	KF	KK	MM	PL	RT	SW	WH	ZA	ZB	SW1
PJ 125 0010 T	Request access	125	10	54	140	22.5	110	25	12	1/4"G	M14	M27X2	32	10	M12	27	10	78	88	24
PJ 125 0015 T	Request access	125	15	54	140	22.5	110	25	12	1/4"G	M14	M27X2	32	10	M12	27	10	78	88	24
PJ 125 0020 T	Request access	125	20	54	140	22.5	110	25	12	1/4"G	M14	M27X2	32	10	M12	27	10	78	88	24
PJ 125 0025 T	Request access	125	25	54	140	22.5	110	25	12	1/4"G	M14	M27X2	32	10	M12	27	10	78	88	24
PJ 125 0030 T	Request access	125	30	54	140	22.5	110	25	12	1/4"G	M14	M27X2	32	10	M12	27	10	78	88	24
PJ 125 0040 T	Request access	125	40	54	140	22.5	110	25	12	1/4"G	M14	M27X2	32	10	M12	27	10	78	88	24
PJ 125 0050 T	Request access	125	50	54	140	22.5	110	25	12	1/4"G	M14	M27X2	32	10	M12	27	10	78	88	24
PJ 125 0060 T	Request access	125	60	54	140	22.5	110	25	12	1/4"G	M14	M27X2	32	10	M12	27	10	78	88	24
PJ 125 0080 T	Request access	125	80	54	140	22.5	110	25	12	1/4"G	M14	M27X2	32	10	M12	27	10	78	88	24
PJ 125 0100 T	Request access	125	100	54	140	22.5	110	25	12	1/4"G	M14	M27X2	32	10	M12	27	10	78	88	24
PJ 125 0125 T	Request access	125	125	54	140	22.5	110	25	12	1/4"G	M14	M27X2	32	10	M12	27	10	78	88	24
PJ 125 0150 T	Request access	125	150	54	140	22.5	110	25	12	1/4"G	M14	M27X2	32	10	M12	27	10	78	88	24
PJ 125 0200 T	Request access	125	200	54	140	22.5	110	25	12	1/4"G	M14	M27X2	32	10	M12	27	10	78	88	24
PJ 125 0250 T	Request access	125	250	54	140	22.5	110	25	12	1/4"G	M14	M27X2	32	10	M12	27	10	78	88	24
PJ 125 0300 T	Request access	125	300	54	140	22.5	110	25	12	1/4"G	M14	M27X2	32	10	M12	27	10	78	88	24
PJ 125 0320 T	Request access	125	320	54	140	22.5	110	25	12	1/4"G	M14	M27X2	32	10	M12	27	10	78	88	24
PJ 125 0350 T	Request access	125	350	54	140	22.5	110	25	12	1/4"G	M14	M27X2	32	10	M12	27	10	78	88	24
PJ 125 0400 T	Request access	125	400	54	140	22.5	110	25	12	1/4"G	M14	M27X2	32	10	M12	27	10	78	88	24
PJ 125 0450 T	Request access	125	450	54	140	22.5	110	25	12	1/4"G	M14	M27X2	32	10	M12	27	10	78	88	24
PJ 125 0500 T	Request access	125	500	54	140	22.5	110	25	12	1/4"G	M14	M27X2	32	10	M12	27	10	78	88	24
PJ 125 0600 T	Request access	125	600	54	140	22.5	110	25	12	1/4"G	M14	M27X2	32	10	M12	27	10	78	88	24
PJ 125 0700 T	Request access	125	700	54	140	22.5	110	25	12	1/4"G	M14	M27X2	32	10	M12	27	10	78	88	24
PJ 125 0800 T	Request access	125	800	54	140	22.5	110	25	12	1/4"G	M14	M27X2	32	10	M12	27	10	78	88	24
PJ 125 0900 T	Request access	125	900	54	140	22.5	110	25	12	1/4"G	M14	M27X2	32	10	M12	27	10	78	88	24
PJ 125 1000 T	Request access	125	1000	54	140	22.5	110	25	12	1/4"G	M14	M27X2	32	10	M12	27	10	78	88	24
PJ 160 0025 T	Request access	160	25	72	180	26.5	140	30	13	3/8"G	M20	M36X2	40	12	M16	36	12	87	99	24
PJ 160 0030 T	Request access	160	30	72	180	26.5	140	30	13	3/8"G	M20	M36X2	40	12	M16	36	12	87	99	30
PJ 160 0040 T	Request access	160	40	72	180	26.5	140	30	13	3/8"G	M20	M36X2	40	12	M16	36	12	87	99	30
PJ 160 0050 T	Request access	160	50	72	180	26.5	140	30	13	3/8"G	M20	M36X2	40	12	M16	36	12	87	99	30
PJ 160 0060 T	Request access	160	60	72	180	26.5	140	30	13	3/8"G	M20	M36X2	40	12	M16	36	12	87	99	30
PJ 160 0080 T	Request access	160	80	72	180	26.5	140	30	13	3/8"G	M20	M36X2	40	12	M16	36	12	87	99	30
PJ 160 0100 T	Request access	160	100	72	180	26.5	140	30	13	3/8"G	M20	M36X2	40	12	M16	36	12	87	99	30
PJ 160 0125 T	Request access	160	125	72	180	26.5	140	30	13	3/8"G	M20	M36X2	40	12	M16	36	12	87	99	30
PJ 160 0150 T	Request access	160	150	72	180	26.5	140	30	13	3/8"G	M20	M36X2	40	12	M16	36	12	87	99	30
PJ 160 0200 T	Request access	160	200	72	180	26.5	140	30	13	3/8"G	M20	M36X2	40	12	M16	36	12	87	99	30
PJ 160 0250 T	Request access	160	250	72	180	26.5	140	30	13	3/8"G	M20	M36X2	40	12	M16	36	12	87	99	30
PJ 160 0300 T	Request access	160	300	72	180	26.5	140	30	13	3/8"G	M20	M36X2	40	12	M16	36	12	87	99	30
PJ 160 0320 T	Request access	160	320	72	180	26.5	140	30	13	3/8"G	M20	M36X2	40	12	M16	36	12	87	99	30
PJ 160 0350 T	Request access	160	350	72	180	26.5	140	30	13	3/8"G	M20	M36X2	40	12	M16	36	12	87	99	30
PJ 160 0400 T	Request access	160	400	72	180	26.5	140	30	13	3/8"G	M20	M36X2	40	12	M16	36	12	87	99	30
PJ 160 0450 T	Request access	160	450	72	180	26.5	140	30	13	3/8"G	M20	M36X2	40	12	M16	36	12	87	99	30
PJ 160 0500 T	Request access	160	500	72	180	26.5	140	30	13	3/8"G	M20	M36X2	40	12	M16	36	12	87	99	30
PJ 160 0600 T	Request access	160	600	72	180	26.5	140	30	13	3/8"G	M20	M36X2	40	12	M16	36	12	87	99	30
PJ 160 0700 T	Request access	160	700	72	180	26.5	140	30	13	3/8"G	M20	M36X2	40	12	M16	36	12	87	99	30
PJ 160 0800 T	Request access	160	800	72	180	26.5	140	30	13	3/8"G	M20	M36X2	40	12	M16	36	12	87	99	30
PJ 160 0900 T	Request access	160	900	72	180	26.5	140	30	13	3/8"G	M20	M36X2	40	12	M16	36	12	87	99	30
PJ 160 1000 T	Request access	160	1000	72	180	26.5	140	30	13	3/8"G	M20	M36X2	40	12	M16	36	12	87	99	30
PJ 200 0025 T	Request access	200	25	72	220	26.5	175	30	13	3/8"G	M20	M36X2	40	12	M16	36	12	87	99	30
PJ 200 0030 T	Request access	200	30	72	220	26.5	175	30	13	3/8"G	M20	M36X2	40	12	M16	36	12	87	99	30
PJ 200 0040 T	Request access	200	40	72	220	26.5	175	30	13	3/8"G	M20	M36X2	40	12	M16	36	12	87	99	30
PJ 200 0050 T	Request access	200	50	72	220	26.5	175	30	13	3/8"G	M20	M36X2	40	12	M16	36	12	87	99	30
PJ 200 0060 T	Request access	200	60	72	220	26.5	175	30	13	3/8"G	M20	M36X2	40	12	M16	36	12	87	99	30
PJ 200 0080 T	Request access	200	80	72	220	26.5	175	30	13	3/8"G	M20	M36X2	40	12	M16	36	12	87	99	30
PJ 200 0100 T	Request access	200	100	72	220	26.5	175	30	13	3/8"G	M20	M36X2	40	12	M16	36	12	87	99	30
PJ 200 0125 T	Request access	200	125	72	220	26.5	175	30	13	3/8"G	M20	M36X2	40	12	M16	36	12	87	99	30
PJ 200 0150 T	Request access	200	150	72	220	26.5	175	30	13	3/8"G	M20	M36X2	40	12	M16	36	12	87	99	30
PJ 200 0200 T	Request access	200	200	72	220	26.5	175	30	13	3/8"G	M20	M36X2	40	12	M16	36	12	87	99	30
PJ 200 0250 T	Request access	200	250	72	220	26.5	175	30	13	3/8"G	M20	M36X2	40	12	M16	36	12	87	99	30
PJ 200 0300 T	Request access	200	300	72	220	26.5	175	30	13	3/8"G	M20	M36X2	40	12	M16	36	12	87	99	30
PJ 200 0320 T	Request access	200	320	72	220	26.5	175	30	13	3/8"G	M20	M36X2	40	12	M16	36	12	87	99	30
PJ 200 0350 T	Request access	200	350	72	220	26.5	175	30	13	3/8"G	M20	M36X2	40	12	M16	36	12	87	99	30
PJ 200 0400 T	Request access	200	400	72	220	26.5	175	30	13	3/8"G	M20	M36X2	40	12	M16	36	12	87	99	30
PJ 200 0450 T	Request access	200	450	72	220	26.5	175	30	13	3/8"G	M20	M36X2	40	12	M16	36	12	87	99	30
PJ 200 0500 T	Request access	200	500	72	220	26.5	175	30	13	3/8"G	M20	M36X2	40	12	M16	36	12	87	99	30
PJ 200 0600 T	Request access	200	600	72	220	26.5	175	30	13	3/8"G	M20	M36X2	40	12	M16	36	12	87	99	30
PJ 200 0700 T	Request access	200	700	72	220	26.5	175	30	13	3/8"G	M20	M36X2	40	12	M16	36	12	87	99	30
PJ 200 0800 T	Request access	200	800	72	220	26.5	175	30	13	3/8"G	M20	M36X2	40	12	M16	36	12	87	99	30
PJ 200 0900 T	Request access	200	900	72	220	26.5	175	30	13	3/8"G	M20	M36X2	40	12	M16	36	12	87	99	30
PJ 200 1000 T	Request access	200	1000	72	220	26.5	175	30	13	3/8"G	M20	M36X2	40	12	M16	36	12	87	99	30
PJ 250 0025 T	Request access	250	25	84	270	35	220	30	16	1/2"G	M24X2	M42X2	50	16	M20	46	15	125	140	30
PJ 250 0030 T	Request access	250	30	84	270	35	220	30	16	1/2"G	M24X2	M42X2	50	16	M20	46	15	125	140	30
PJ 250 0040 T	Request access	250	40	84	270	35	220	30	16	1/2"G	M24X2	M42X2	50	16	M20	46	15	125	140	30
PJ 250 0050 T	Request access	250	50	84	270	35	220	30	16	1/2"G	M24X2	M42X2	50	16	M20	46	15	125	140	30
PJ 250 0060 T	Request access	250	60	84	270	35	220	30	16	1/2"G	M24X2	M42X2	50	16	M20	46	15	125	140	30
PJ 250 0080 T	Request access	250	80	84	270	35	220	30	16	1/2"G	M24X2	M42X2	50	16	M20	46	15	125	140	30
PJ 250 0100 T	Request access	250	100	84	270	35	220	30	16	1/2"G	M24X2	M42X2	50	16	M20	46	15	125	140	30
PJ 250 0125 T	Request access	250	125	84	270	35	220	30	16	1/2"G	M24X2	M42X2	50	16	M20	46	15	125	140	30
PJ 250 0150 T	Request access	250	150	84	270	35	220	30	16	1/2"G	M24X2	M42X2	50	16	M20	46	15	125	140	30
PJ 250 0200 T	Request access	250	200	84	270	35	220	30	16	1/2"G	M24X2	M42X2	50	16	M20	46	15	125	140	36
PJ 250 0250 T	Request access	250	250	84	270	35	220	30	16	1/2"G	M24X2	M42X2	50	16	M20	46	15	125	140	36
PJ 250 0300 T	Request access	250	300	84	270	35	220	30	16	1/2"G	M24X2	M42X2	50	16	M20	46	15	125	140	36
PJ 250 0320 T	Request access	250	320	84	270	35	220	30	16	1/2"G	M24X2	M42X2	50	16	M20	46	15	125	140	36
PJ 250 0350 T	Request access	250	350	84	270	35	220	30	16	1/2"G	M24X2	M42X2	50	16	M20	46	15	125	140	36
PJ 250 0400 T	Request access	250	400	84	270	35	220	30	16	1/2"G	M24X2	M42X2	50	16	M20	46	15	125	140	36
PJ 250 0450 T	Request access	250	450	84	270	35	220	30	16	1/2"G	M24X2	M42X2	50	16	M20	46	15	125	140	36
PJ 250 0500 T	Request access	250	500	84	270	35	220	30	16	1/2"G	M24X2	M42X2	50	16	M20	46	15	125	140	36
PJ 250 0600 T	Request access	250	600	84	270	35	220	30	16	1/2"G	M24X2	M42X2	50	16	M20	46	15	125	140	36
PJ 250 0700 T	Request access	250	700	84	270	35	220	30	16	1/2"G	M24X2	M42X2	50	16	M20	46	15	125	140	36
PJ 250 0800 T	Request access	250	800	84	270	35	220	30	16	1/2"G	M24X2	M42X2	50	16	M20	46	15	125	140	36
PJ 250 0900 T	Request access	250	900	84	270	35	220	30	16	1/2"G	M24X2	M42X2	50	16	M20	46	15	125	140	36
PJ 250 1000 T	Request access	250	1000	84	270	35	220	30	16	1/2"G	M24X2	M42X2	50	16	M20	46	15	125	140	36
