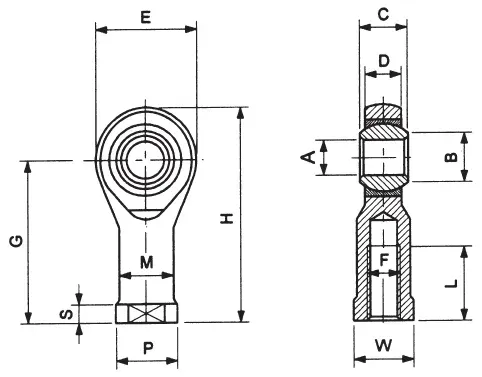

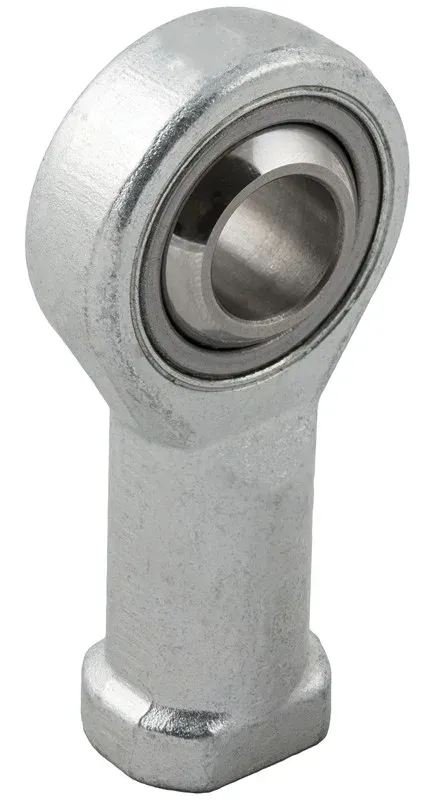

ROD ENDS SELF-LUBRICATING
|
Code |
3D Drawings |
F |
A H7 |
B 0 |
C 0 - 0,13 |
Ø Sphere |
D ± 0,13 |
E ± 0,5 |
G ± 0,5 |
H |
L ± 0.7 |
M ± 0,7 |
P ± 0,5 |
S + 0,2 - 0,7 |
W ± 0,25 |
Radial Load Dynamic Kg |
Radial Load Static Kg |
Weight g |
Material |
|
TF 008
|
-
Request access
|
M4X0,7 |
5 |
7,7 |
8 |
11,11 |
6 |
18 |
27 |
36 |
10 |
9 |
11 |
4 |
9 |
- |
- |
- |
Steel |
|
TF 012
|
-
Request access
|
M6X1 |
6 |
8,9 |
9 |
12.7 |
6,75 |
20 |
30 |
40 |
9 |
10 |
13 |
5 |
11 |
470 |
1100 |
19 |
Steel |
|
TF 020
|
-
Request access
|
M8X1,25 |
8 |
10,4 |
12 |
15.88 |
9 |
24 |
36 |
48 |
12 |
12,5 |
16 |
5 |
14 |
780 |
1900 |
36 |
Steel |
|
TF 025
|
-
Request access
|
M10X1,25 |
10 |
12,9 |
14 |
19.05 |
10,5 |
28 |
43 |
57 |
15 |
15 |
19 |
6,5 |
17 |
1200 |
3100 |
88 |
Steel |
