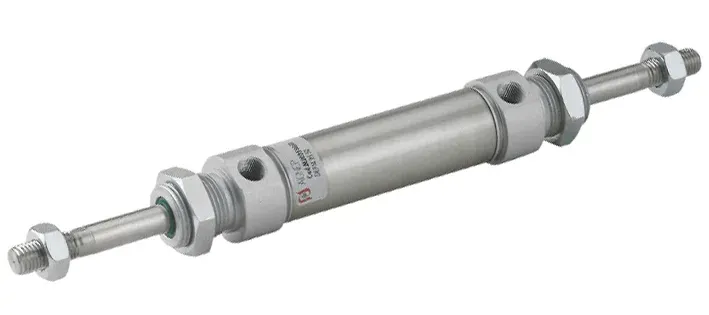

DOUBLE ACTING MAGNETIC WITH DOUBLE ROD END

Filter

MJ

DOUBLE ACTING MAGNETIC WITH DOUBLE ROD END

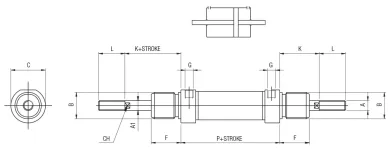

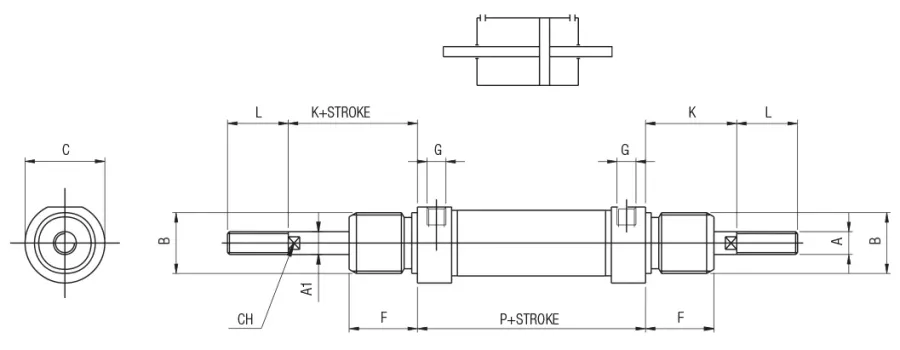

Code	3D Drawings	Ø	Stroke	A	A1	B	C	F	G	K	L	P	CH
MJ 016 0010	Request access	16	10	M6	6	M16X1,5	19	18	M5	22	16	53	5
MJ 016 0025	Request access	16	25	M6	6	M16X1,5	19	18	M5	22	16	53	5
MJ 016 0040	Request access	16	40	M6	6	M16X1,5	19	18	M5	22	16	53	5
MJ 016 0050	Request access	16	50	M6	6	M16X1,5	19	18	M5	22	16	53	5
MJ 016 0080	Request access	16	80	M6	6	M16X1,5	19	18	M5	22	16	53	5
MJ 016 0100	Request access	16	100	M6	6	M16X1,5	19	18	M5	22	16	53	5
MJ 016 0125	Request access	16	125	M6	6	M16X1,5	19	18	M5	22	16	53	5
MJ 016 0160	Request access	16	160	M6	6	M16X1,5	19	18	M5	22	16	53	5
MJ 016 0200	Request access	16	200	M6	6	M16X1,5	19	18	M5	22	16	53	5
MJ 016 0250	Request access	16	250	M6	6	M16X1,5	19	18	M5	22	16	53	5
MJ 020 0010	Request access	20	10	M8	8	M22X1,5	27	20	1/8G	24	20	67	7
MJ 020 0025	Request access	20	25	M8	8	M22X1,5	27	20	1/8G	24	20	67	7
MJ 020 0040	Request access	20	40	M8	8	M22X1,5	27	20	1/8G	24	20	67	7
MJ 020 0050	Request access	20	50	M8	8	M22X1,5	27	20	1/8G	24	20	67	7
MJ 020 0080	Request access	20	80	M8	8	M22X1,5	27	20	1/8G	24	20	67	7
MJ 020 0100	Request access	20	100	M8	8	M22X1,5	27	20	1/8G	24	20	67	7
MJ 020 0125	Request access	20	125	M8	8	M22X1,5	27	20	1/8G	24	20	67	7
MJ 020 0160	Request access	20	160	M8	8	M22X1,5	27	20	1/8G	24	20	67	7
MJ 020 0200	Request access	20	200	M8	8	M22X1,5	27	20	1/8G	24	20	67	7
MJ 020 0250	Request access	20	250	M8	8	M22X1,5	27	20	1/8G	24	20	67	7
MJ 020 0320	Request access	20	320	M8	8	M22X1,5	27	20	1/8G	24	20	67	7
MJ 025 0010	Request access	25	10	M10X1,25	10	M22X1,5	30	22	1/8G	28	22	68	9
MJ 025 0025	Request access	25	25	M10X1,25	10	M22X1,5	30	22	1/8G	28	22	68	9
MJ 025 0040	Request access	25	40	M10X1,25	10	M22X1,5	30	22	1/8G	28	22	68	9
MJ 025 0050	Request access	25	50	M10X1,25	10	M22X1,5	30	22	1/8G	28	22	68	9
MJ 025 0080	Request access	25	80	M10X1,25	10	M22X1,5	30	22	1/8G	28	22	68	9
MJ 025 0100	Request access	25	100	M10X1,25	10	M22X1,5	30	22	1/8G	28	22	68	9
MJ 025 0125	Request access	25	125	M10X1,25	10	M22X1,5	30	22	1/8G	28	22	68	9
MJ 025 0160	Request access	25	160	M10X1,25	10	M22X1,5	30	22	1/8G	28	22	68	9
MJ 025 0200	Request access	25	200	M10X1,25	10	M22X1,5	30	22	1/8G	28	22	68	9
MJ 025 0250	Request access	25	250	M10X1,25	10	M22X1,5	30	22	1/8G	28	22	68	9
MJ 025 0320	Request access	25	320	M10X1,25	10	M22X1,5	30	22	1/8G	28	22	68	9
