VCF

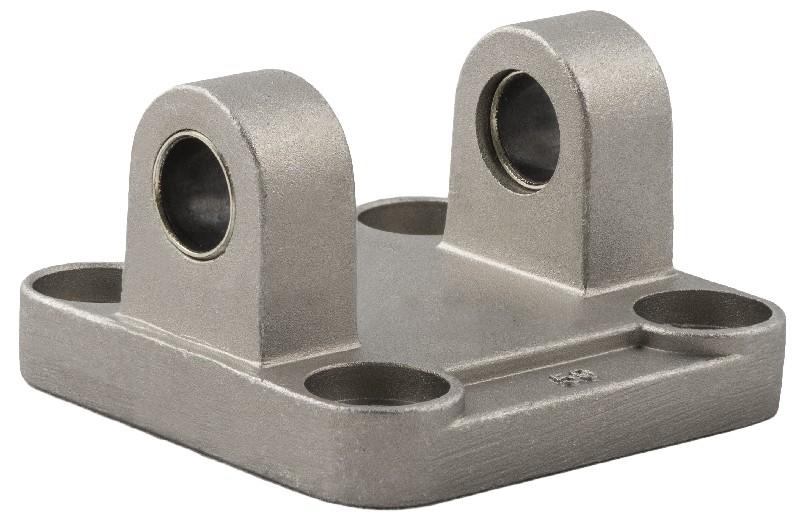

FEMALE HINGE WITH SELF-LUBRICATING BUSHES - ALUMINIUM

prodotto___liso15552_vcf_iso15552-d

prodotto___liso15552_vcf_iso15552-f

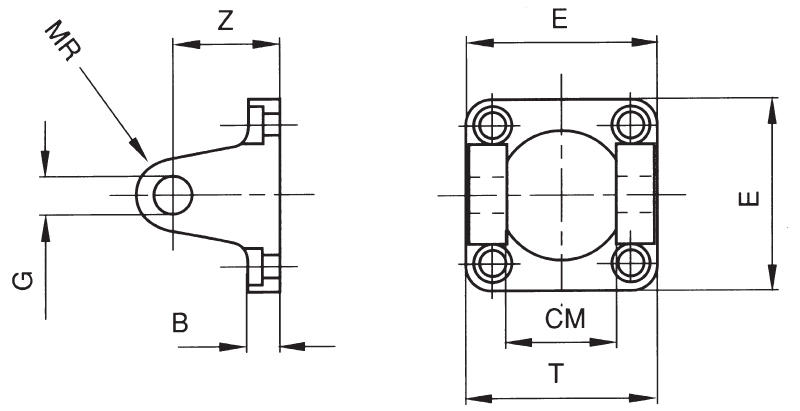

	Code	3D Drawings	Ø	B	E	G	T	Z	CM	MR
	VCF 032	Request access	32	9	45	10	45	22	26	10
	VCF 040	Request access	40	9	52	12	52	25	28	12
	VCF 050	Request access	50	11	65	12	60	27	32	12
	VCF 063	Request access	63	11	75	16	70	32	40	16
	VCF 080	Request access	80	14	95	16	90	36	50	16
	VCF 100	Request access	100	14	115	20	110	41	60	20
	VCF 125	Request access	125	20	140	25	130	50	70	25
