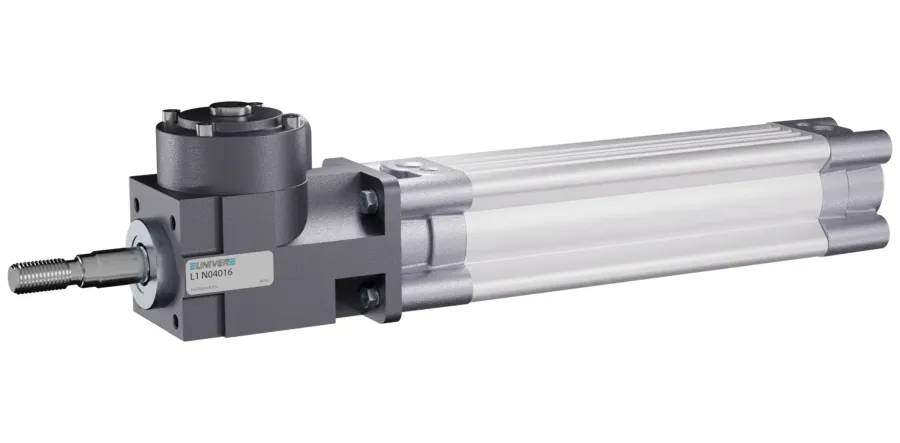

DOUBLE ACTING CUSHIONED MAGNETIC WITH PISTON ROD LOCK

For further information please contact our tecnichal departement. - LLL: Available double rod end.

Code	3D Drawings	Ø	AM	B	DD	E	F	H1	KK	M	MM	N	O	P	S1	TG	U	VD	WH
LHL 032 0000	Request access	32	22	30	M6	54.5	84	16	M10x1,25	50	12	50	29,5	79,5	85	32,5	10	6	26
LHL 040 0000	Request access	40	24	35	M6	58	90	15	M12x1,25	58	16	58	29,5	87,5	90	38	9	6	30
LHL 050 0000	Request access	50	32	40	M8	60	100	17	M16x1,5	70	20	70	29	99	100	46,5	10	6	37
LHL 063 0000	Request access	63	32	45	M8	65	110	17	M16x1,5	85	20	85	37	122	110	56,5	13	6	37
LHL 080 0000	Request access	80	40	45	M10	75	125	21	M20x1,5	100	25	100	40,5	140,5	125	72	16	8	46
LHL 100 0000	Request access	100	40	55	M10	90	152	26	M20x1,5	116	25	116	59	179	150	89	18	8	51
LHL 125 0000	Request access	125	54	60	M12	112.5	185	35	M27x2	145	32	145	62	207	185	110	22	9,5	65
