VCH

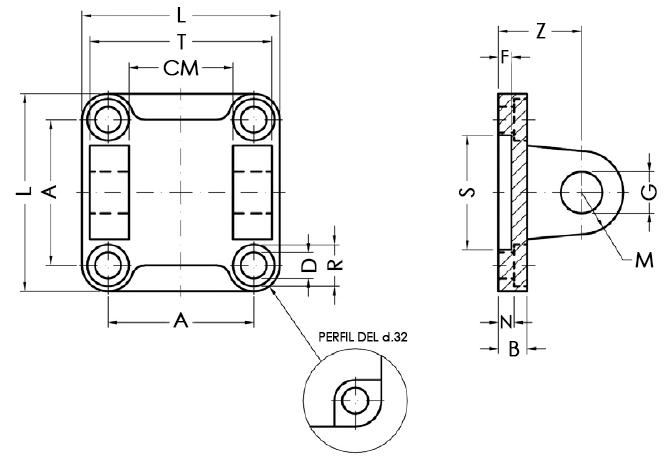

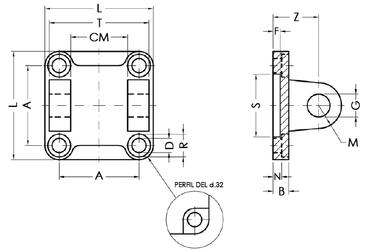

FEMALE CLEVIS BRACKET - ALUMINIUM
| Code | 3D Drawings | Ø | A | L | D | R | N | B | S | F | Z | G | M | CM | T | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| VCH 160 | Request access | 160 | 140 | 180 | 18 | 26 | 10 | 20 | 65 | 7 | 55 | 30 | 25 | 90 | 170 | |
| VCH 200 | Request access | 200 | 175 | 220 | 18 | 26 | 11 | 25 | 75 | 7 | 60 | 30 | 25 | 90 | 170 | |
| VCH 250 | Request access | 250 | 220 | 270 | 22 | 33 | 11 | 25 | 90 | - | 70 | 40 | 40 | 110 | 200 |
